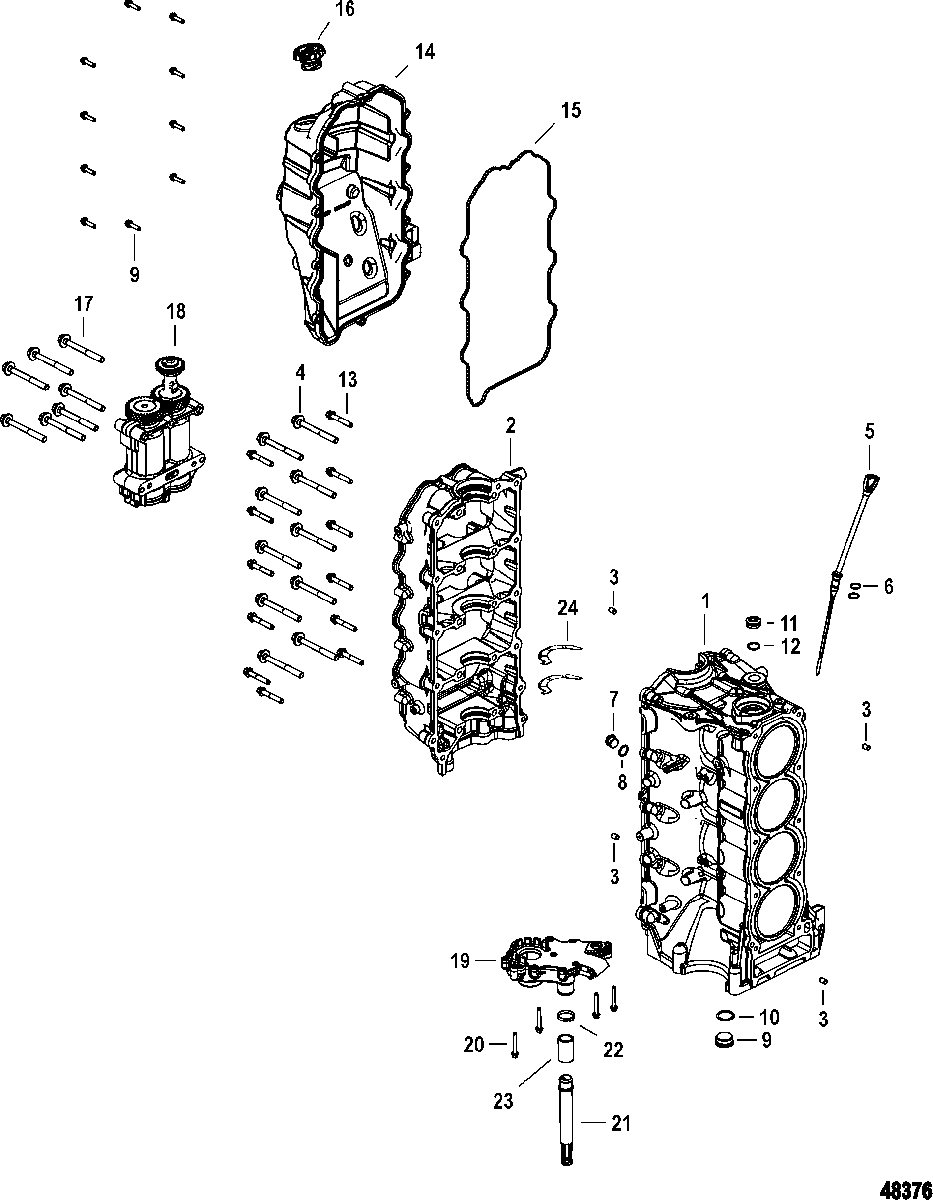

Cylinder Block для Mariner - 150 (4-Stroke) 1B905505 & Up

№

Артикул

Название
1

800-8M0122813 CYLINDER BLOCK ASSY

CYLINDER BLOCK ASSY
2

NSS NOT SOLD SEPARATE, Bedplate

NOT SOLD SEPARATE, Bedplate
3

17-893540 PIN, Dowel, 8x12 long

PIN, Dowel, 8x12 long
4

10-8M0071220 SCREW, M10X1.50X95 HX FLG HD

SCREW, M10X1.50X95 HX FLG HD
5

8M0074826 DIPSTICK ASSEMBLY

DIPSTICK ASSEMBLY
6

25-8M0048519 O-RING, 012, Viton

O-RING, 012, Viton
7

19-8M0087451 PLUG, (18 MM)

PLUG, (18 MM)
8

NSS NOT SOLD SEPARATE, O-ring, M2 X 15

NOT SOLD SEPARATE, O-ring, M2 X 15
9

19-8M0087454 PLUG, (30 MM)

PLUG, (30 MM)
10

NSS NOT SOLD SEPARATE, O-ring, M2.5 X 27

NOT SOLD SEPARATE, O-ring, M2.5 X 27
11

19-8M0087453 PLUG, (24 MM)

PLUG, (24 MM)
12

NSS NOT SOLD SEPARATE, O-ring, M2 X 21

NOT SOLD SEPARATE, O-ring, M2 X 21
13

10-8M0103807 SCREW, (M6 x 25 MM) Stainless Steel

SCREW, (M6 x 25 MM) Stainless Steel
14

8M0057645 CRANKCASE COVER

CRANKCASE COVER
15

8M0069596 SEAL, Crankcase Cover

SEAL, Crankcase Cover
16

8M0065093 CAP

CAP
17

10-8M0146359 SCREW, (M8 X 1.25 X 95)

SCREW, (M8 X 1.25 X 95)
18

8M0057670 BALANCE SHAFT ASSEMBLY

BALANCE SHAFT ASSEMBLY
19

8M0057658 OIL PUMP ASSEMBLY

OIL PUMP ASSEMBLY
20

10-8M0103810 SCREW, (M6 x 45 MM) Stainless Steel

SCREW, (M6 x 45 MM) Stainless Steel
-

8M0055655 OIL PICK UP ASSEMBLY

OIL PICK UP ASSEMBLY
21

8M0090807 OIL PICKUP TUBE ASSEMBLY

OIL PICKUP TUBE ASSEMBLY
22

54-8M6000385 CLAMP, (39.6 MM)

CLAMP, (39.6 MM)
23

32-8M0055656 HOSE, Oil Pickup

HOSE, Oil Pickup
24

12-8M0043913 THRUST WASHER

THRUST WASHER
-

27-8M0057763 GASKET SET, Powerhead

GASKET SET, Powerhead
-

61-8M0122811 LONG BLOCK ASSEMBLY

LONG BLOCK ASSEMBLY
-

61-8M0122812 SHORT BLOCK ASSEMBLY

SHORT BLOCK ASSEMBLY
