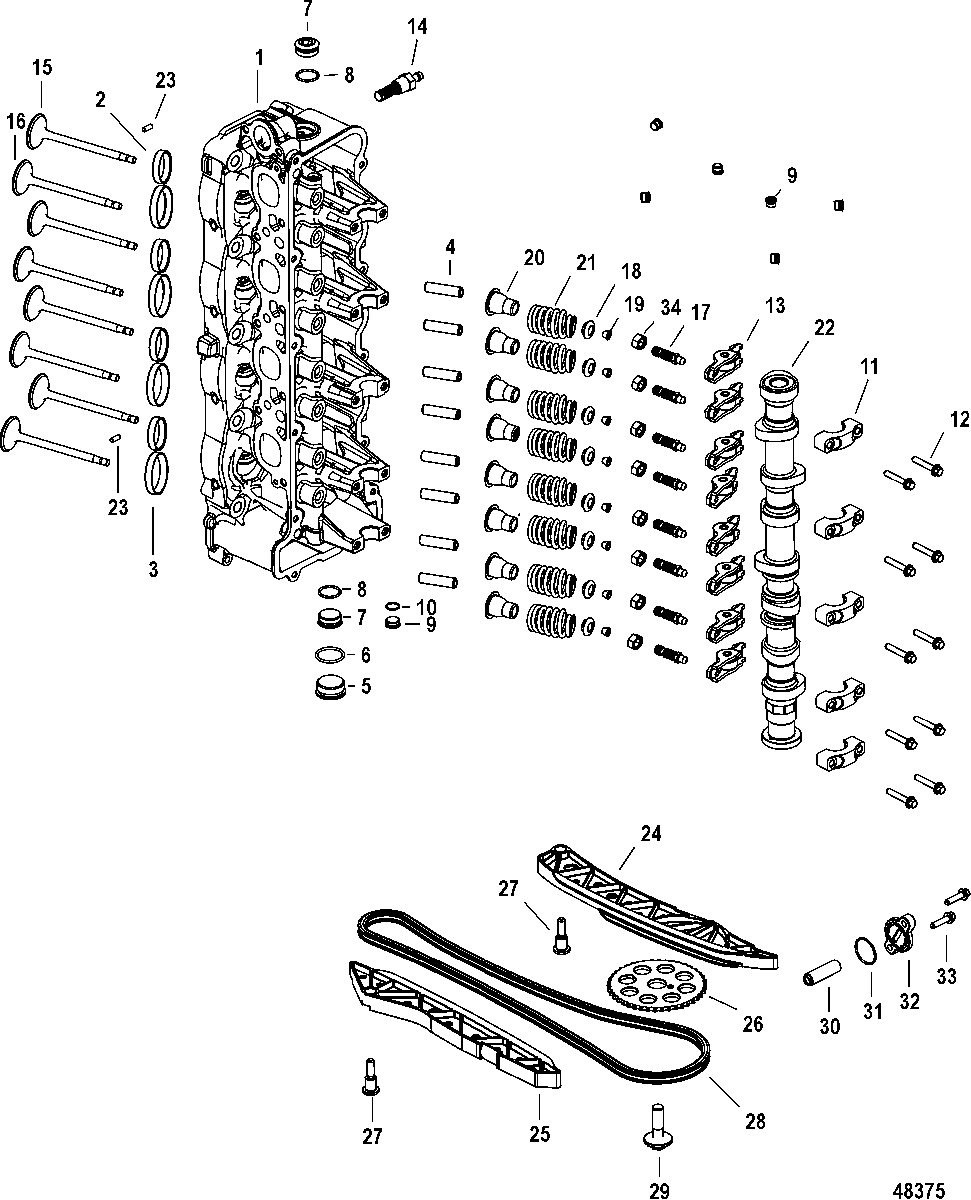

Cylinder Head and Camshaft для Mariner - 150 (4-Stroke) 1B905505 & Up

  • №
    Артикул
    Название
  • -
    900-8M0098629 CYLINDER HEAD ASSEMBLY
    Non SeaPro
    CYLINDER HEAD ASSEMBLY
    Non SeaPro
  • -
    900-8M0098629 CYLINDER HEAD ASSEMBLY
    SeaPro
    CYLINDER HEAD ASSEMBLY
    SeaPro
  • 1
    8M0057648 CYLINDER HEAD, Bare
    CYLINDER HEAD, Bare
  • 2
    8M0029981 VALVE SEAT, Exhaust
    VALVE SEAT, Exhaust
  • 3
    8M0029982 VALVE SEAT, Intake
    VALVE SEAT, Intake
  • 4
    8M0029980 VALVE GUIDE
    VALVE GUIDE
  • 5
    19-8M0087454 PLUG, (30 MM)
    PLUG, (30 MM)
  • 6
    NSS NOT SOLD SEPARATE, O-ring, M2.5 X 7
    NOT SOLD SEPARATE, O-ring, M2.5 X 7
  • 7
    19-8M0087453 PLUG, (24 MM)
    PLUG, (24 MM)
  • 8
    NSS NOT SOLD SEPARATE, O-ring, M2 X 21
    NOT SOLD SEPARATE, O-ring, M2 X 21
  • 9
    19-8M0087446 PLUG, (10 MM)
    PLUG, (10 MM)
  • 10
    NSS NOT SOLD SEPARATE, O-ring, M1.5 X 7
    NOT SOLD SEPARATE, O-ring, M1.5 X 7
  • 11
    NSS NOT SOLD SEPARATE
    NOT SOLD SEPARATE
  • 12
    10-892454035 BOLT, (M6 x 36)
    BOLT, (M6 x 36)
  • 13
    8M0032524 ROLLER FINGER FOLLOWER ASSY
    ROLLER FINGER FOLLOWER ASSY
  • 14
    22-8M0058214 FITTING, Water Strainer
    FITTING, Water Strainer
  • 15
    8M0098634 VALVE, Exhaust
    Non SeaPro
    VALVE, Exhaust
    Non SeaPro
  • 15
    8M0098635 VALVE, Exhaust
    SeaPro
    VALVE, Exhaust
    SeaPro
  • 16
    8M0098635 VALVE, Intake
    Non SeaPro
    VALVE, Intake
    Non SeaPro
  • 16
    8M0098634 VALVE, Intake
    SeaPro
    VALVE, Intake
    SeaPro
  • 17
    16-8M0047625 STUD, Ball End M10 X 1
    STUD, Ball End M10 X 1
  • 18
    8M0037758 RETAINER, Valve
    RETAINER, Valve
  • 19
    28-8M0035317 KEY, Valve Retainer
    2 per valve
    KEY, Valve Retainer
    2 per valve
  • 20
    8M0074434 VALVE SEAL KIT
    VALVE SEAL KIT
  • 21
    24-8M6001704 SPRING, Valve
    SPRING, Valve
  • 22
    400-8M0057653 CAMSHAFT ASSEMBLY
    CAMSHAFT ASSEMBLY
  • 23
    17-8M0084726 PIN, Dowel (.187 x .530)
    PIN, Dowel (.187 x .530)
  • 24
    8M0035600 BLADE, Timing Chain
    BLADE, Timing Chain
  • 25
    8M0035484 GUIDE, Fixed, Timing Chain
    GUIDE, Fixed, Timing Chain
  • 26
    43-880550 SPROCKET
    SPROCKET
  • 27
    10-8M0086569 SCREW, Shoulder, M8 X 1.25 MM
    SCREW, Shoulder, M8 X 1.25 MM
  • 28
    8M0126057 CHAIN, Cam
    CHAIN, Cam
  • 29
    10-8M0021532 SCREW, (M12 x 40 MM), Left Hand Thread
    SCREW, (M12 x 40 MM), Left Hand Thread
  • 30
    8M0057657 TENSIONER ASSY, Timing Chain
    TENSIONER ASSY, Timing Chain
  • 31
    25-898836 O-RING, Brown
    O-RING, Brown
  • 32
    1100-8M0064752 END CAP, Cam Tensioner
    END CAP, Cam Tensioner
  • 33
    10-8M0103807 SCREW, (M6 x 25 MM) Stainless Steel
    SCREW, (M6 x 25 MM) Stainless Steel
  • 34
    11-8M0047686 NUT, M10 X 1
    NUT, M10 X 1
