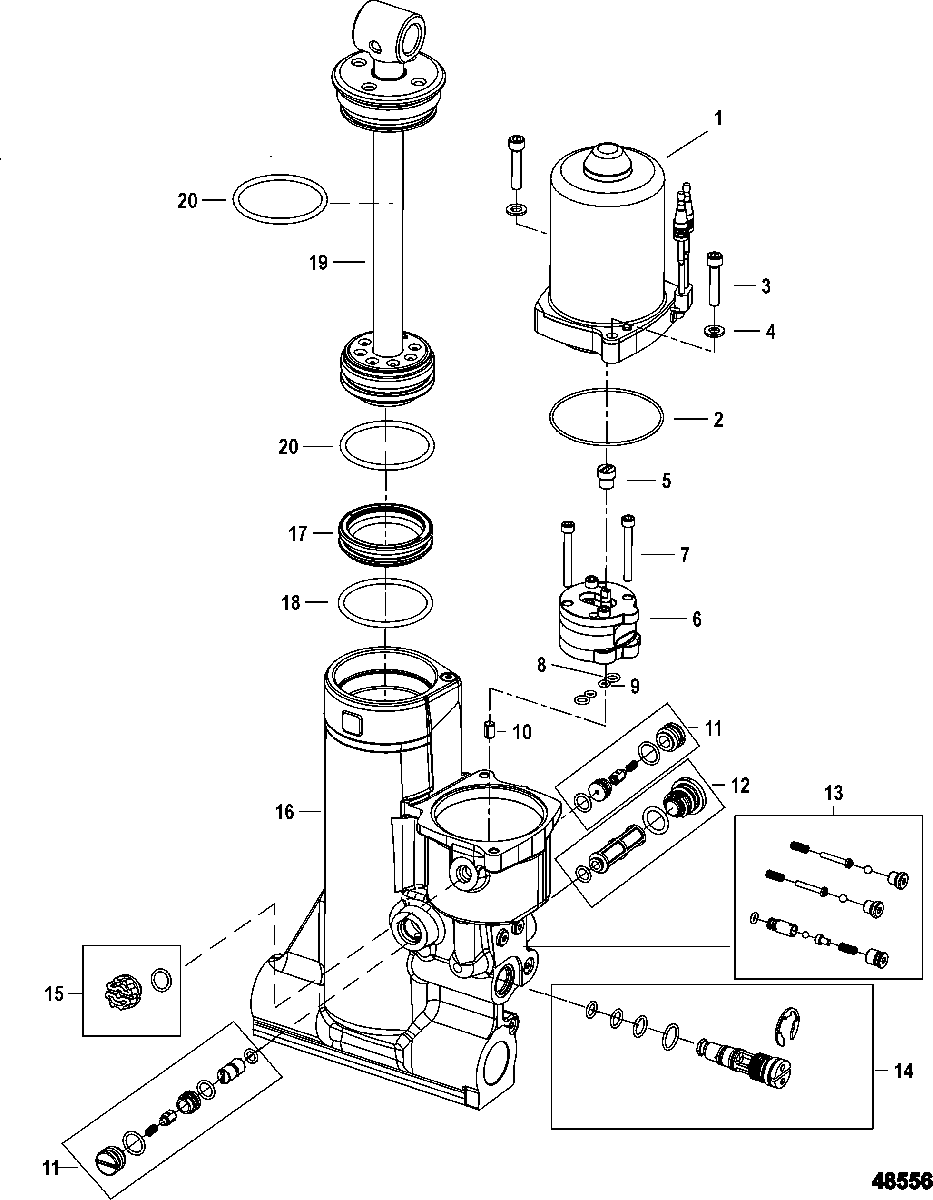

Power Trim Assembly, Components для Mariner - 150 (4-Stroke) 1B905505 & Up

  • №
    Артикул
    Название
  • 1
    8M0060140 TRIM ASSEMBLY MOTOR KIT
    TRIM ASSEMBLY MOTOR KIT
  • 2
    NSS NOT SOLD SEPARATE, O-ring
    NOT SOLD SEPARATE, O-ring
  • 3
    10-82494830 SCREW, (M6 x 30)
    SCREW, (M6 x 30)
  • 4
    13-400256 LOCKWASHER, (M6)
    LOCKWASHER, (M6)
  • 5
    8M0090403 DRIVESHAFT
    DRIVESHAFT
  • 6
    8M0060127 TRIM ASSEMBLY PUMP KIT
    TRIM ASSEMBLY PUMP KIT
  • 7
    NSS NOT SOLD SEPARATE, Screw
    NOT SOLD SEPARATE, Screw
  • 8
    NSS NOT SOLD SEPARATE, O-ring
    NOT SOLD SEPARATE, O-ring
  • 9
    NSS NOT SOLD SEPARATE, O-ring
    NOT SOLD SEPARATE, O-ring
  • 10
    NSS NOT SOLD SEPARATE, Bushing
    NOT SOLD SEPARATE, Bushing
  • 11
    8M0060126 TRIM ASSEMBLY PO CHECK KIT
    TRIM ASSEMBLY PO CHECK KIT
  • 12
    35-8M0060143 TRIM ASSEMBLY FILTER KIT
    TRIM ASSEMBLY FILTER KIT
  • 13
    8M0060128 RELIEF VALVE KIT
    RELIEF VALVE KIT
  • 14
    8M0060141 MANUAL RELEASE KIT
    MANUAL RELEASE KIT
  • 15
    19-811613 PLUG ASSEMBLY
    PLUG ASSEMBLY
  • 16
    NSS NOT SOLD SEPARATE
    NOT SOLD SEPARATE
  • 17
    8M0060146 MEMORY PISTON KIT
    MEMORY PISTON KIT
  • 18
    NSS NOT SOLD SEPARATE, O-ring
    NOT SOLD SEPARATE, O-ring
  • 19
    8M0060145 SHOCK ROD ASSEMBLY
    SHOCK ROD ASSEMBLY
  • 20
    NSS NOT SOLD SEPARATE, O-ring
    NOT SOLD SEPARATE, O-ring
  • 21
    10-8M0050058 SCREW, 5/16-24 X .5
    SCREW, 5/16-24 X .5
  • -
    8M0057770 O-RING KIT, COMPLETE
    O-RING KIT, COMPLETE
