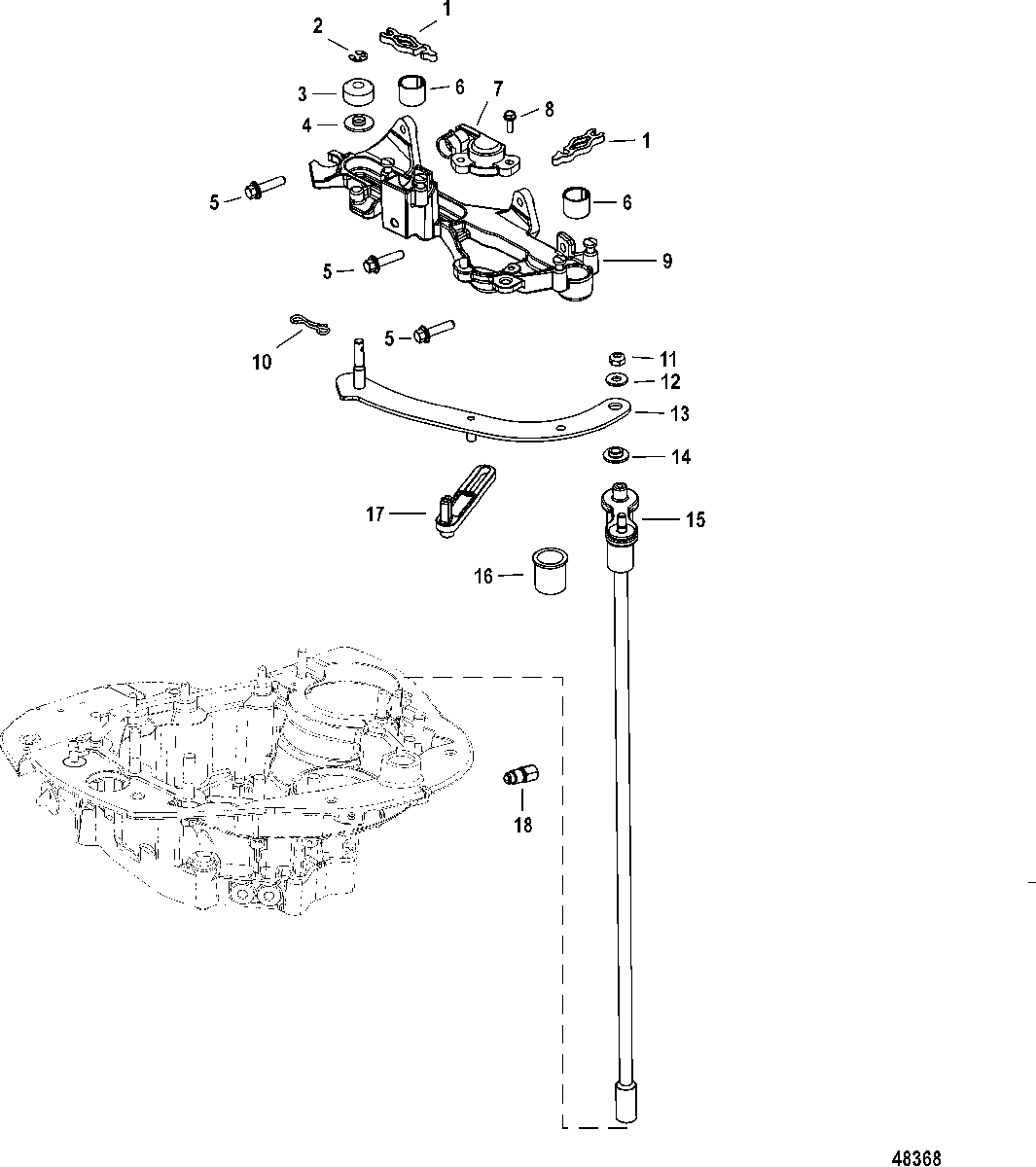

Shift Linkage для Mariner - 150 (4-Stroke) 1B905505 & Up

  • №
    Артикул
    Название
  • 1
    899044 LATCH
    LATCH
  • 2
    53-27290 RING, Retaining
    RING, Retaining
  • 3
    8M0031453 ROLLER
    ROLLER
  • 4
    12-8M0050560 WASHER
    WASHER
  • 5
    10-8M0103807 SCREW, (M6 x 25 MM) Stainless Steel
    SCREW, (M6 x 25 MM) Stainless Steel
  • 6
    824015 CUP, Barrel Retainer
    CUP, Barrel Retainer
  • 7
    8M0125617 SENSOR, Position
    SENSOR, Position
  • 8
    10-4001186 SCREW, (M4 X 13) HEX WASH HD SS
    SCREW, (M4 X 13) HEX WASH HD SS
  • 9
    8M0030886 BRACKET ASSY, Shift Link, Painted
    BRACKET ASSY, Shift Link, Painted
  • 10
    8M0001157 PIN, Bow Tie Clip
    PIN, Bow Tie Clip
  • 11
    11-401386 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 12
    12-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel
    WASHER, (.2656 x .625 x .0625) Stainless Steel
  • 13
    8M0031454 LINK, Shift
    LINK, Shift
  • 14
    23-8M0035249 BUSHING, (6.452 MM ID) Flanged
    BUSHING, (6.452 MM ID) Flanged
  • 15
    8M0071763 SHIFT SHAFT ASSEMBLY
    SHIFT SHAFT ASSEMBLY
  • 16
    23-8M0063632 BUSHING, Flanged, Bronze
    BUSHING, Flanged, Bronze
  • 17
    8M0032570 LEVER, Sensor
    LEVER, Sensor
  • 18
    888823001 SHIFT DETENT ASSEMBLY
    SHIFT DETENT ASSEMBLY
