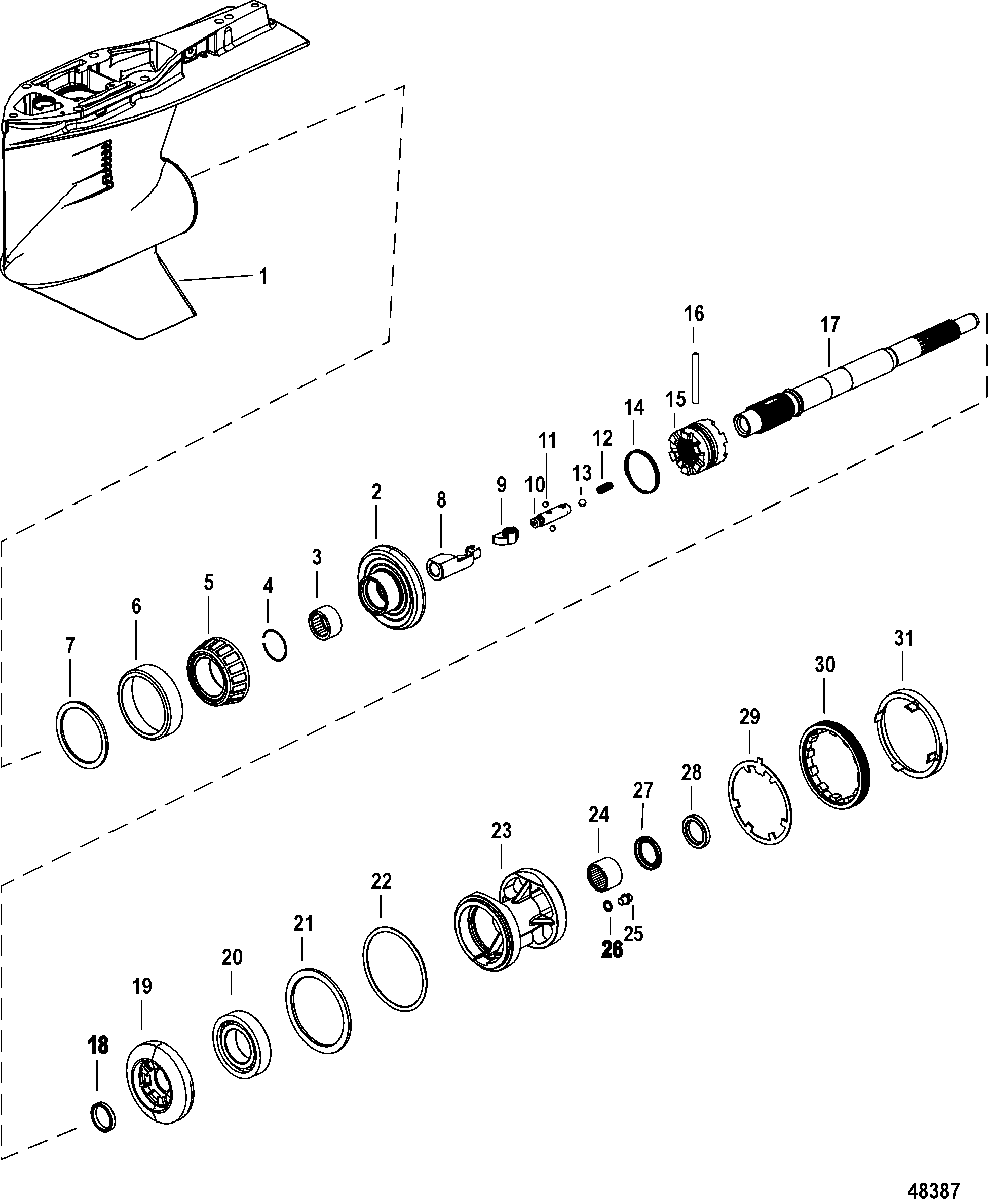

Gear Housing, Propeller Shaft, Standard для Mariner - 150 (4-Stroke) 1B905505 & Up

  • №
    Артикул
    Название
  • -
    1600-8M0099218 GEARCASE HOUSING ASSY, Complete, Long
    Non SeaPro
    GEARCASE HOUSING ASSY, Complete, Long
    Non SeaPro
  • -
    1600-8M0099909 GEARCASE HOUSING ASSY, Complete, Long
    SeaPro
    GEARCASE HOUSING ASSY, Complete, Long
    SeaPro
  • -
    1600-8M0099221 GEARCASE HOUSING ASSY, Complete, X-Long
    Non SeaPro
    GEARCASE HOUSING ASSY, Complete, X-Long
    Non SeaPro
  • -
    1600-8M0099910 GEARCASE HOUSING ASSY, Complete, XL
    SeaPro
    GEARCASE HOUSING ASSY, Complete, XL
    SeaPro
  • 1
    1600-8M0057747 GEARCASE HOUSING ASSY, Basic
    Non SeaPro
    GEARCASE HOUSING ASSY, Basic
    Non SeaPro
  • 1
    1600-8M0099907 GEARCASE HOUSING ASSY, Basic
    SeaPro
    GEARCASE HOUSING ASSY, Basic
    SeaPro
  • 2
    98-8M0096703 GEAR SET-FORWARD/PINION
    3 degree
    GEAR SET-FORWARD/PINION
    3 degree
  • 2
    43-8M0096704 GEAR SET, Forward/Pinion
    2 degree
    GEAR SET, Forward/Pinion
    2 degree
  • 3
    31-8M0057742 BEARING, Needle
    BEARING, Needle
  • 4
    53-8M0071554 RING, Retaining
    RING, Retaining
  • 5
    31-8M0057724 BEARING ASSY, ROLLER, TAPERED
    BEARING ASSY, ROLLER, TAPERED
  • 6
    NSS NOT SOLD SEPARATE, Cup
    NOT SOLD SEPARATE, Cup
  • 7
    15-47397A1 SHIM SET
    SHIM SET
  • 8
    8M0105206 FOLLOWER, Cam, Right Hand
    FOLLOWER, Cam, Right Hand
  • 9
    8M0031224 CAM, Shift
    CAM, Shift
  • 10
    8M0057749 ROD, Clutch Actuator
    ROD, Clutch Actuator
  • 11
    30-8M0054823 BALL BEARING, .2500 dia, NLA - No Longer Required
    BALL BEARING, .2500 dia, NLA - No Longer Required
  • 12
    24-8M0058020 SPRING, Compression .305 OD, NLA - No Longer Required
    SPRING, Compression .305 OD, NLA - No Longer Required
  • 13
    30-8M0054824 BALL BEARING, .3125 dia, NLA - No Longer Required
    BALL BEARING, .3125 dia, NLA - No Longer Required
  • 14
    24-8M0047945 SPRING, Retaining
    SPRING, Retaining
  • 15
    52-8M0045760 CLUTCH, Sliding, 6 Jaw
    CLUTCH, Sliding, 6 Jaw
  • 16
    17-8M0045759 PIN, Cross
    PIN, Cross
  • 17
    44-8M0088077 SHAFT, Propeller, Right Hand
    SHAFT, Propeller, Right Hand
  • 18
    23-824108 SPACER
    SPACER
  • 19
    43-8M0061763 GEAR ASSEMBLY, Reverse
    GEAR ASSEMBLY, Reverse
  • 19
    43-8M0096705 GEAR ASSEMBLY, Reverse
    GEAR ASSEMBLY, Reverse
  • 20
    30-88957T BEARING, Ball
    BEARING, Ball
  • 21
    8M0030779 THRUST RING
    THRUST RING
  • 22
    25-8M0030845 O-RING, 3.975X.210
    O-RING, 3.975X.210
  • 23
    8M0098463 SPOOL, Bearing Carrier
    SPOOL, Bearing Carrier
  • 24
    31-30956T BEARING, Needle
    BEARING, Needle
  • 25
    10-880717A01 SCREW/SEAL KIT, .38 Inch Long
    SCREW/SEAL KIT, .38 Inch Long
  • 25
    10-8M0077071 SCREW/SEAL KIT, .75 Inch Long
    SCREW/SEAL KIT, .75 Inch Long
  • 26
    26-830749 SEAL
    SEAL
  • 27
    26-14077 SEAL, Oil
    SEAL, Oil
  • 28
    26-76868 SEAL
    SEAL
  • 28
    26-12224 SEAL, Fish Line Cutting
    SEAL, Fish Line Cutting
  • 29
    8M0030784 WASHER, Keyed
    WASHER, Keyed
  • 30
    8M0141332 RETAINER BEARING CARRIER
    RETAINER BEARING CARRIER
  • 31
    23-8M0054695 SLEEVE, Propeller Bore
    SLEEVE, Propeller Bore
