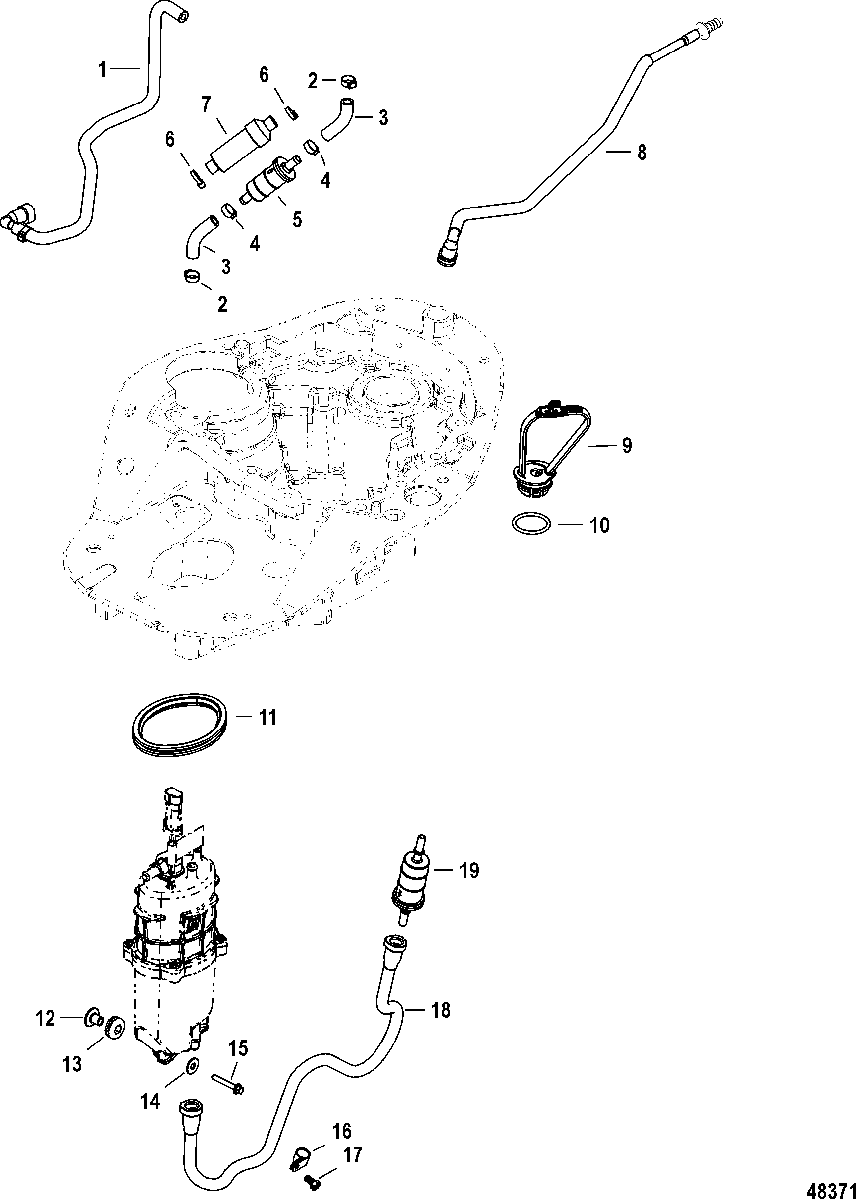

Fuel Supply System, Hoses and module для Mariner - 150 (4-Stroke) 1B905505 & Up

  • №
    Артикул
    Название
  • 1
    32-8M0034897 HOSE, Manifold Ref
    HOSE, Manifold Ref
  • 2
    54-855697 CLAMP, (16.2 mm)
    CLAMP, (16.2 mm)
  • 3
    32-8M0095536 HOSE, FSM to Rail
    HOSE, FSM to Rail
  • 4
    54-855697 CLAMP, (16.2 mm)
    CLAMP, (16.2 mm)
  • 5
    35-8M0057677 FUEL FILTER, Inline
    FUEL FILTER, Inline
  • 6
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 7
    23-8M0059106 SLEEVE, Static, Dia 19.05
    SLEEVE, Static, Dia 19.05
  • 8
    32-8M0096482 HOSE, Fuel- Inlet to Filter
    HOSE, Fuel- Inlet to Filter
  • 9
    8M0057680 RETAINER, Fuel Filter
    RETAINER, Fuel Filter
  • 10
    25-90196 O-RING, (.921 x .139)
    O-RING, (.921 x .139)
  • 11
    8M0037209 GROMMET, FSM Retainer
    GROMMET, FSM Retainer
  • 12
    23-856954 BUSHING
    BUSHING
  • 13
    25-834985 GROMMET
    GROMMET
  • 14
    12-65567 WASHER, (.265 x .750 x .048) Stainless Steel
    WASHER, (.265 x .750 x .048) Stainless Steel
  • 15
    10-8M0103807 SCREW, (M6 x 25 MM) Stainless Steel
    SCREW, (M6 x 25 MM) Stainless Steel
  • 16
    54-8M0037098 CLIP, Hose
    CLIP, Hose
  • 17
    10-8M0037204 SCREW, Nylon, push in
    SCREW, Nylon, push in
  • 18
    32-8M0086989 HOSE, Fuel- Filter to FSM
    HOSE, Fuel- Filter to FSM
  • 19
    35-879885Q FILTER, Fuel In-Line
    FILTER, Fuel In-Line
