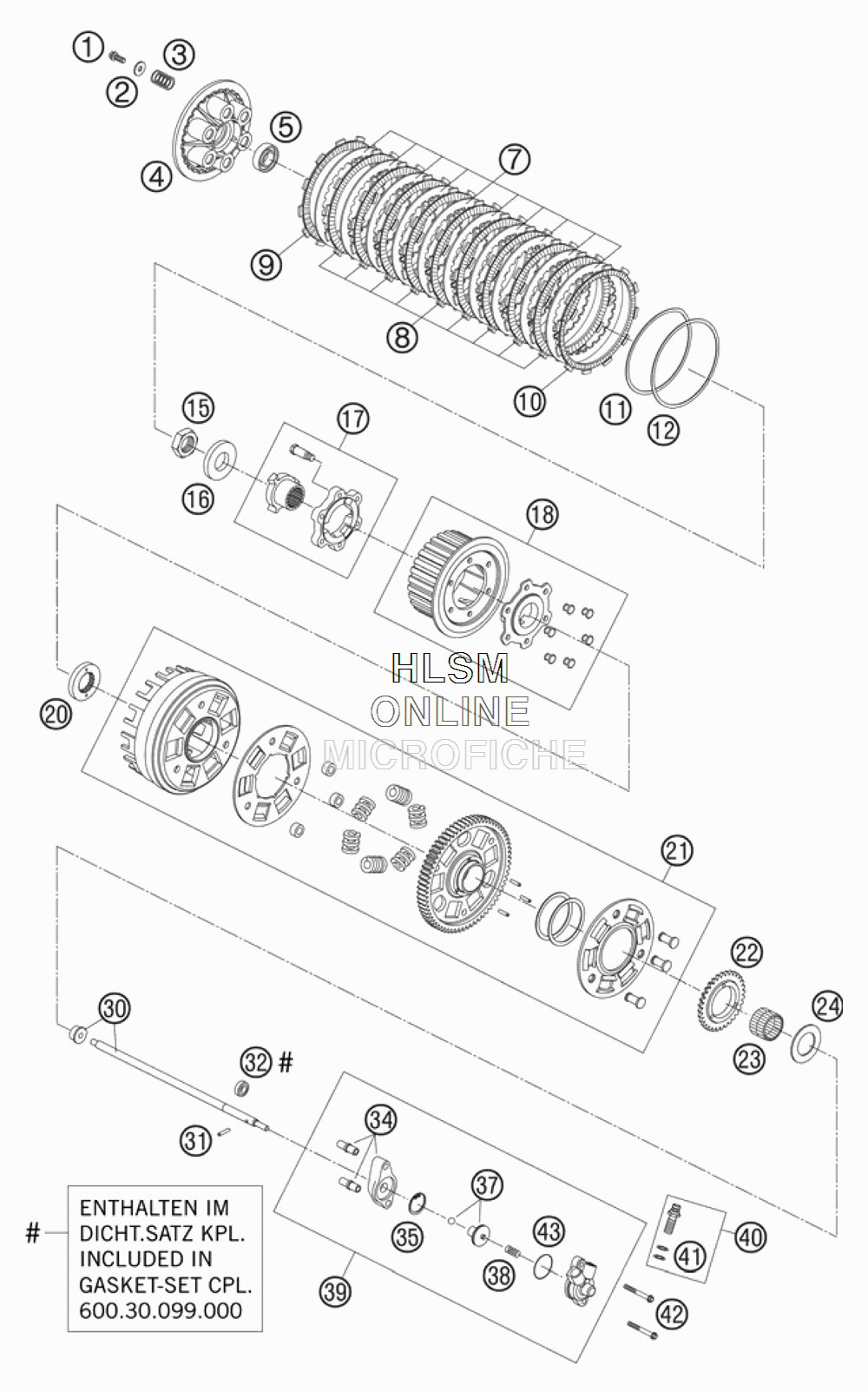

CLUTCH для Ktm 950 Super Enduro - 2007 года выпуска`
-
№АртикулНазвание
-
10015060163 HH COLLAR SCREW M 6X16 WS=8HH COLLAR SCREW M 6X16 WS=8
-
20021060003 WASHER DIN9021-A 6,4WASHER DIN9021-A 6,4
-
360032005000 CLUTCH SPRING LC8CLUTCH SPRING LC8
-
460032003000 PRESSURE CAP LC8PRESSURE CAP LC8
-
50625060032 BALL BEARING 6003 JR2 C4BALL BEARING 6003 JR2 C4
-
760032010000 STEEL DISK 2MMSTEEL DISK 2MM
-
860032011000 LINING DISK 2,8MMLINING DISK 2,8MM
-
960032111000 LINING DISK OUTSIDE 2,8MMLINING DISK OUTSIDE 2,8MM
-
1060032012000 LINING DISK TURN OUT 2,8MMLINING DISK TURN OUT 2,8MM
-
1160032034000 BELLEVILLE SPRINGBELLEVILLE SPRING
-
1260032035000 THRUST WASHERTHRUST WASHER
-
150936220155 HEXAGON NUT DIN0936-M22X1,5 R.HEXAGON NUT DIN0936-M22X1,5 R.
-
160126220373 WASHER DIN0126 22X37X3 MMWASHER DIN0126 22X37X3 MM
-
1760032080000 CLUTCH BOOSTER UNIT CPL.CLUTCH BOOSTER UNIT CPL.
-
1860032002000 INNER CLUTCH HUB CPL.INNER CLUTCH HUB CPL.
-
2060032021000 SECTION WASHERSECTION WASHER
-
2160032001144 OUT.CLUTCH HUB CPL. 67-TOUT.CLUTCH HUB CPL. 67-T
-
2260038001032 OIL PUMP GEAR WHEEL 32-TOIL PUMP GEAR WHEEL 32-T
-
230618303526 NEEDLE BUSH HK 30X35X26NEEDLE BUSH HK 30X35X26
-
2460032020000 STOP DISK 30,2/50/2STOP DISK 30,2/50/2
-
3060032054400 PUSH ROD CPL.PUSH ROD CPL.
-
310402031780 NEEDLE ROL.DIN5402 NRB 3X17,8NEEDLE ROL.DIN5402 NRB 3X17,8
-
320760091862 SHAFT SEAL RING 9X18X06 B-NBRSHAFT SEAL RING 9X18X06 B-NBR
-
3460032061050 DISTANCE CLUTCH CONTR. CPL.DISTANCE CLUTCH CONTR. CPL.
-
350472270120 CIRCLIP DIN0472CIRCLIP DIN0472
-
3760032066000 PISTON WITH O-RING AND BALLPISTON WITH O-RING AND BALL
-
3860032069000 COMPRESSION SPRING 8X20,75COMPRESSION SPRING 8X20,75
-
3960032061044 CYLINDER CPL. LC8CYLINDER CPL. LC8
-
4050332062000 HOLLOW SCREW CPL. M 10X1HOLLOW SCREW CPL. M 10X1
-
410603100141 COPPER GASKET DIN7603-10X14X1COPPER GASKET DIN7603-10X14X1
-
420015060503 HH COLLAR SCREW M 6X50 WS=8HH COLLAR SCREW M 6X50 WS=8
-
4360032065000 O-RING GASKETO-RING GASKET
