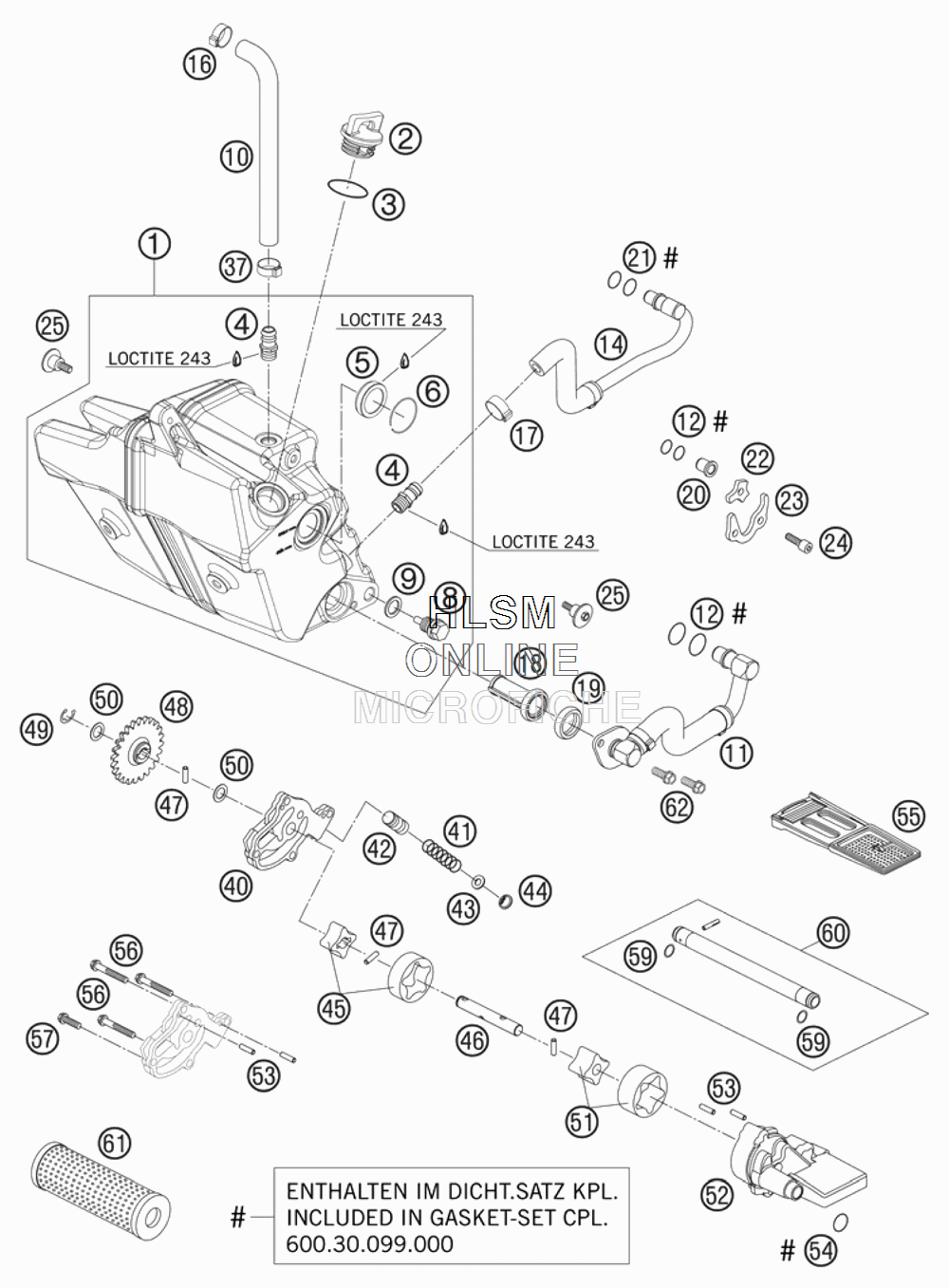

LUBRICATING SYSTEM для Ktm 950 Super Enduro - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    63038081033 OIL TANK CPL.
    OIL TANK CPL.
  • 2
    58030020100 PLUG CPL. M24X3
    PLUG CPL. M24X3
  • 3
    0770191015 O-RING 19,00X3,00 NBR
    O-RING 19,00X3,00 NBR
  • 4
    59030022100 BLEEDER FLANGE M12X1,5 WS=13
    BLEEDER FLANGE M12X1,5 WS=13
  • 5
    59030019000 OIL LEVEL GLASS G 1777 Y
    OIL LEVEL GLASS G 1777 Y
  • 6
    61030019050 CIRCLIP OIL LEVEL GLASS
    CIRCLIP OIL LEVEL GLASS
  • 8
    58030021000 OILDRAIN PLUG W.MAG. M 12X1,5
    OILDRAIN PLUG W.MAG. M 12X1,5
  • 9
    58038022000 CU-SEAL RING DIN7603-12X18X1,5
    CU-SEAL RING DIN7603-12X18X1,5
  • 10
    62538034030 PREFORMED HOSE 9X15
    PREFORMED HOSE 9X15
  • 11
    62538060000 SUCTION PIPE
    SUCTION PIPE
  • 12
    0770090021 O-RING 9X2 VITON
    O-RING 9X2 VITON
  • 14
    62538061000 RETURN OIL PIPE
    RETURN OIL PIPE
  • 16
    00050170706 VARIABLE ONE-EAR CLAMP 17,0MM
    VARIABLE ONE-EAR CLAMP 17,0MM
  • 17
    00050185706 VARIABLE ONE-EAR CLAMP 18,5MM
    VARIABLE ONE-EAR CLAMP 18,5MM
  • 18
    60038017000 OIL SCREEN FINISHED
    OIL SCREEN FINISHED
  • 19
    60038018000 GASKET FOR OIL FILTER HNBR
    GASKET FOR OIL FILTER HNBR
  • 20
    60038024000 PLUG 10MM LC8
    PLUG 10MM LC8
  • 21
    0770110021 O-RING 11X2 VITON
    O-RING 11X2 VITON
  • 22
    60038037000 RETAINING PLATE 2 LC8
    RETAINING PLATE 2 LC8
  • 23
    60038036000 RETAINING PLATE 1 LC8
    RETAINING PLATE 1 LC8
  • 24
    0912060203 AH SCREW DIN0912-M 6X20
    AH SCREW DIN0912-M 6X20
  • 25
    60038083000 SCREW OIL TANK FIXING
    SCREW OIL TANK FIXING
  • 37
    00049160121 CLAMP STD DN16
    CLAMP STD DN16
  • 40
    60038010000 PRESSURE PUMP CASE
    PRESSURE PUMP CASE
  • 41
    60038026000 CONTROL SPRING LC8 3,5 BAR
    CONTROL SPRING LC8 3,5 BAR
  • 42
    60038028000 CONTROL PISTON LC8
    CONTROL PISTON LC8
  • 43
    0988060121 WASHER 6X12X1 HRC 40-45
    WASHER 6X12X1 HRC 40-45
  • 44
    0472012010 CIRCLIP DIN0472 J12
    CIRCLIP DIN0472 J12
  • 45
    60038011000 ROTOR-SET PRESSURE PUMP
    ROTOR-SET PRESSURE PUMP
  • 46
    60038002000 OIL PUMP SHAFT
    OIL PUMP SHAFT
  • 47
    0402041580 NEEDLE ROLLER NRB 4X15,8 G2
    NEEDLE ROLLER NRB 4X15,8 G2
  • 48
    60038001024 OIL PUMP GEAR 24-T
    OIL PUMP GEAR 24-T
  • 49
    0799080000 TAB WASHER DIN6799 RS8
    TAB WASHER DIN6799 RS8
  • 50
    60038007010 WASHER 10X16X0,5
    WASHER 10X16X0,5
  • 51
    60038009000 ROTOR-SET SUCTION PUMP
    ROTOR-SET SUCTION PUMP
  • 52
    60038008000 SUCTION PUMP CASE
    SUCTION PUMP CASE
  • 53
    0402040980 NEEDLE ROL.DIN5402 NRB 4X9,8
    NEEDLE ROL.DIN5402 NRB 4X9,8
  • 54
    0770133024 O-RING 13,3X2,4 VITON
    O-RING 13,3X2,4 VITON
  • 55
    60038016000 OIL SCREEN
    OIL SCREEN
  • 56
    0015060403 HH COLLAR SCREW M 6X40 WS=8
    HH COLLAR SCREW M 6X40 WS=8
  • 57
    0015060253 HH COLLAR SCREW M 6X25 WS=8
    HH COLLAR SCREW M 6X25 WS=8
  • 59
    0770010010 O-RING 10,00X1,00 NBR 70 SH
    O-RING 10,00X1,00 NBR 70 SH
  • 60
    60030065100 OIL INJECTION TUBE GEAR 05
    OIL INJECTION TUBE GEAR 05
  • 61
    60038015000 OIL FILTER
    OIL FILTER
  • 62
    0015060103 HH COLLAR SCREW M 6X10 WS=8
    HH COLLAR SCREW M 6X10 WS=8
