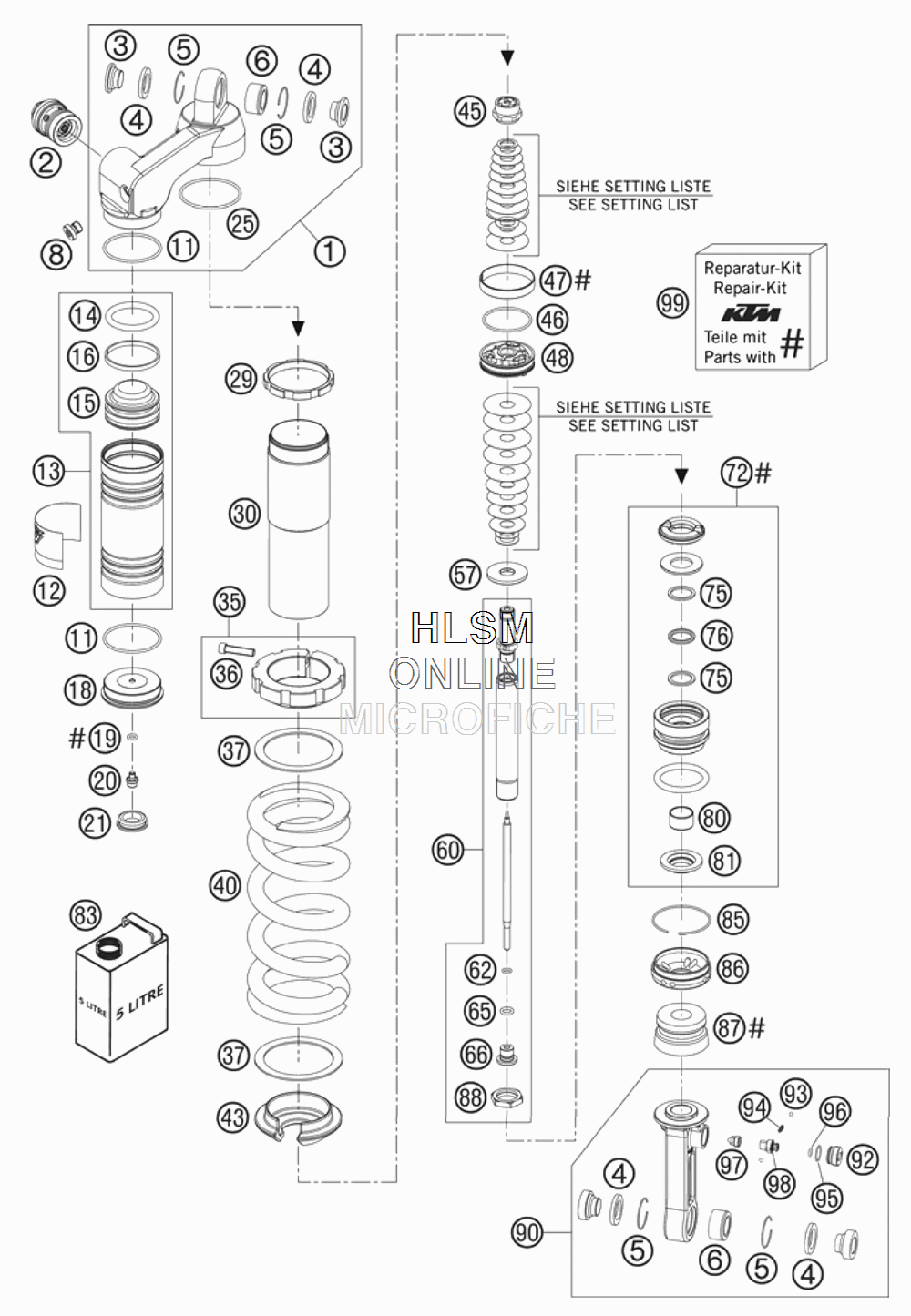

SHOCK ABSORBER - DISASSEMBLED для Ktm 950 Super Enduro - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    46180398S MONOSHOCK TOP CPL.
    MONOSHOCK TOP CPL.
  • 2
    50180213S4 DCC-COMPR.DAMP.CONTROL CPL.
    DCC-COMPR.DAMP.CONTROL CPL.
  • 3
    50180366 ADAPTOR BUSH KGW 14X24
    ADAPTOR BUSH KGW 14X24
  • 4
    46180003 OIL SEAL KGW D=25
    OIL SEAL KGW D=25
  • 5
    50180168 WASHER KGW D=25
    WASHER KGW D=25
  • 6
    50180005 BUSHING KGW 1525 HD
    BUSHING KGW 1525 HD
  • 8
    50180095 BLEED PLUG R 1/8
    BLEED PLUG R 1/8
  • 11
    46810340 O-RING NBR 45X2
    O-RING NBR 45X2
  • 12
    52000044 STICKER WP KTM
    STICKER WP KTM
  • 13
    46180400S RESERV. SCREW CPL. L=125 D=46
    RESERV. SCREW CPL. L=125 D=46
  • 14
    46811043 O-RING VITON 35X5
    O-RING VITON 35X5
  • 15
    50180108 SEPARATION PISTON D=46, H=29
    SEPARATION PISTON D=46, H=29
  • 16
    46810324 PISTON RING 3,9X1,5X138
    PISTON RING 3,9X1,5X138
  • 18
    46811341 RESERVOIR CAP D=46 M5
    RESERVOIR CAP D=46 M5
  • 19
    46810893 O-RING NBR 5,28X1,78
    O-RING NBR 5,28X1,78
  • 20
    36120151 SCREW PLUG M5X6
    SCREW PLUG M5X6
  • 21
    46811208 RUBBER CAP "DO NOT OPEN"
    RUBBER CAP "DO NOT OPEN"
  • 25
    46810016 O-RING NBR 48X2
    O-RING NBR 48X2
  • 29
    46180395 LOCK WASHER M52X1,5
    LOCK WASHER M52X1,5
  • 30
    46180345 TUBE M52X1,5
    TUBE M52X1,5
  • 35
    46180394S ADJUSTING NUT M52X1,5
    ADJUSTING NUT M52X1,5
  • 36
    46180354 AH SCREW M5X25
    AH SCREW M5X25
  • 37
    50180410 INTERM.RING D=58
    INTERM.RING D=58
  • 40
    91010277S SPRING 140-215 (59)D=13,75 TIT
    SPRING 140-215 (59)D=13,75 TIT
  • 43
    46180396 SPRING RETAINER H=15 D=28
    SPRING RETAINER H=15 D=28
  • 45
    46180597 PISTON ROD NUT
    PISTON ROD NUT
  • 46
    46810035 O-RING VITON 37,82X1,78
    O-RING VITON 37,82X1,78
  • 47
    46810361 PISTON RING
    PISTON RING
  • 48
    46810560 PISTON 6+6D7
    PISTON 6+6D7
  • 57
    14460017 REBOUND DISC H=4
    REBOUND DISC H=4
  • 60
    46180509S PISTON ROD CPL. D=18 L=143
    PISTON ROD CPL. D=18 L=143
  • 62
    50180397 O-RING VITON 5X1,5
    O-RING VITON 5X1,5
  • 65
    46180018 O-RING NBR 7,5X2
    O-RING NBR 7,5X2
  • 66
    46180350 NEEDLE GUIDE
    NEEDLE GUIDE
  • 72
    46180341S ADAPTOR CPL. D=46 H=28 D=38
    ADAPTOR CPL. D=46 H=28 D=38
  • 75
    50180102 BACKUPRING 22,55X1,5
    BACKUPRING 22,55X1,5
  • 76
    50180101 QUAD RING 18X2,62
    QUAD RING 18X2,62
  • 80
    46180119 DU-BUSH 18X20X12
    DU-BUSH 18X20X12
  • 81
    50180082 DUST SEAL 1835
    DUST SEAL 1835
  • 83
    50180466S1 SHOCK ABSORBER FLUID 5 LT 05
    SHOCK ABSORBER FLUID 5 LT 05
  • 85
    46810010 CIRCLIP 49X1,5
    CIRCLIP 49X1,5
  • 86
    46180397 COVER H=9,5
    COVER H=9,5
  • 87
    50180276 BUMP RUBBER WP60 D=18-26
    BUMP RUBBER WP60 D=18-26
  • 88
    50180481 NUT M18X1
    NUT M18X1
  • 90
    46180399S MONOSHOCK BOTTOM CPL.
    MONOSHOCK BOTTOM CPL.
  • 92
    46180005 RESERVOIR CAP M16X1
    RESERVOIR CAP M16X1
  • 93
    40540603 STEEL BALL D=3MM
    STEEL BALL D=3MM
  • 94
    48600028 SPRING D=2,9 L=7,9
    SPRING D=2,9 L=7,9
  • 95
    46180013 O-RING NBR 12X1
    O-RING NBR 12X1
  • 96
    50180222 O-RING NBR 4X1,5
    O-RING NBR 4X1,5
  • 97
    46180016 ADJUSTING ADAPTOR REBOUND
    ADJUSTING ADAPTOR REBOUND
  • 98
    46180006 ADJUSTING SCREW L=15,5
    ADJUSTING SCREW L=15,5
  • 99
    R15004 REPAIR KIT GASKET
    REPAIR KIT GASKET
