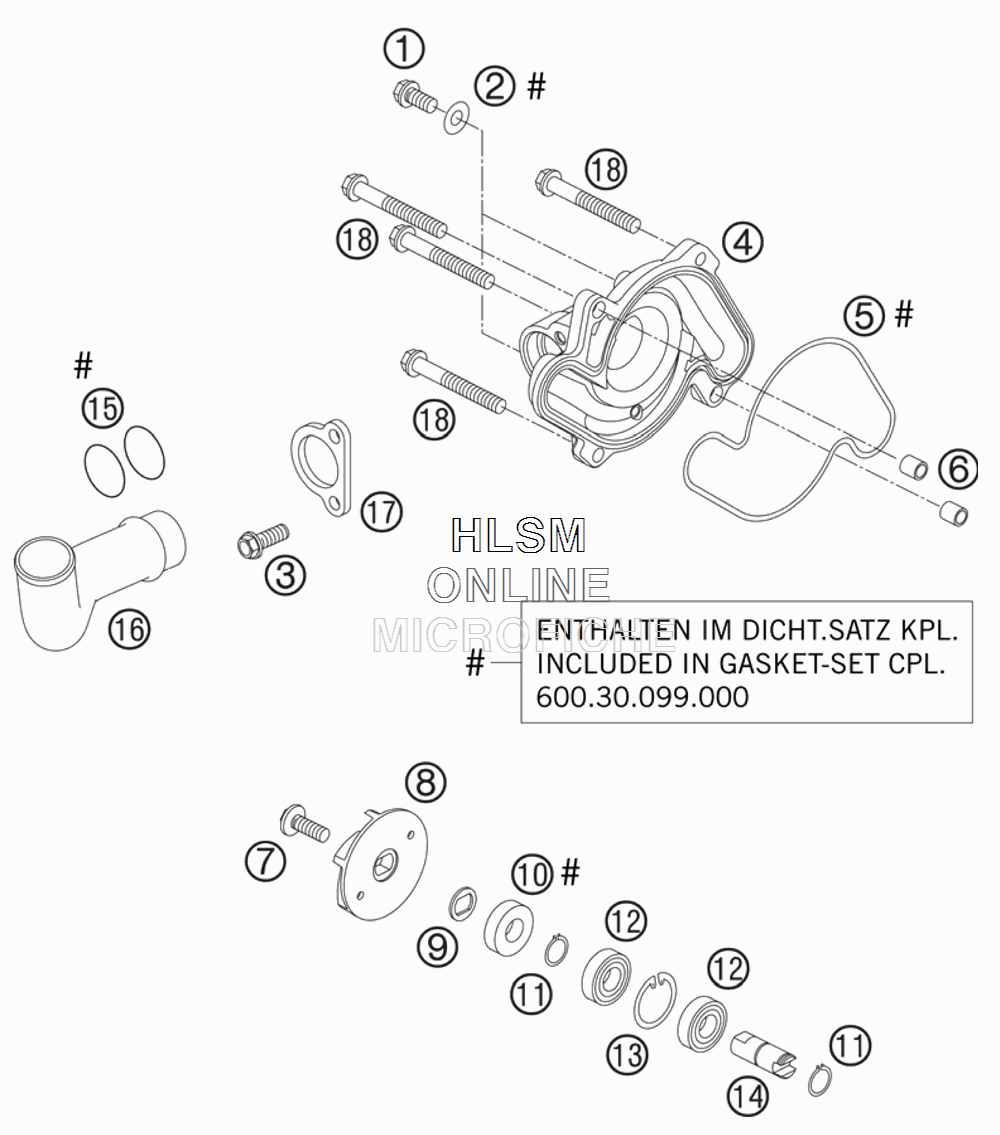

WATER PUMP для Ktm 950 Super Enduro - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    0015060103 HH COLLAR SCREW M 6X10 WS=8
    HH COLLAR SCREW M 6X10 WS=8
  • 2
    0603061001 CU-SEAL RING DIN7603-6X10X1
    CU-SEAL RING DIN7603-6X10X1
  • 3
    0015060163 HH COLLAR SCREW M 6X16 WS=8
    HH COLLAR SCREW M 6X16 WS=8
  • 4
    60035052000 WATER-PUMP COVER
    WATER-PUMP COVER
  • 5
    60035053000 WATER-PUMP GASKET
    WATER-PUMP GASKET
  • 6
    59030023000 DOWEL 6X8X11,5
    DOWEL 6X8X11,5
  • 7
    0014060153 HH COLLAR SCREW M 6X15 WS=8
    HH COLLAR SCREW M 6X15 WS=8
  • 8
    60035055100 WATER-PUMP WHEEL LC8
    WATER-PUMP WHEEL LC8
  • 9
    60035055150 FORM WASHER 16X1 NIRO
    FORM WASHER 16X1 NIRO
  • 10
    0760123072 SHAFT SEAL RING 12X30X7 VITON
    SHAFT SEAL RING 12X30X7 VITON
  • 11
    0471120010 CIRCLIP DIN0471-12X1
    CIRCLIP DIN0471-12X1
  • 12
    0625069010 GROOVED BALL BEARING 6901V C3
    GROOVED BALL BEARING 6901V C3
  • 13
    0472240120 CIRCLIP DIN472 D=24X1,2
    CIRCLIP DIN472 D=24X1,2
  • 14
    60035054000 WATER-PUMP SHAFT
    WATER-PUMP SHAFT
  • 15
    0770250030 O-RING 25,00X3,00 NBR 70
    O-RING 25,00X3,00 NBR 70
  • 16
    62535021000 ALUMINIUM TUBE WATER-PUMP CPL.
    ALUMINIUM TUBE WATER-PUMP CPL.
  • 17
    60035021050 FIXING CLAMP WATER-P. TUBE
    FIXING CLAMP WATER-P. TUBE
  • 18
    0015060603 HH COLLAR SCREW M 6X60 WS=8
    HH COLLAR SCREW M 6X60 WS=8
