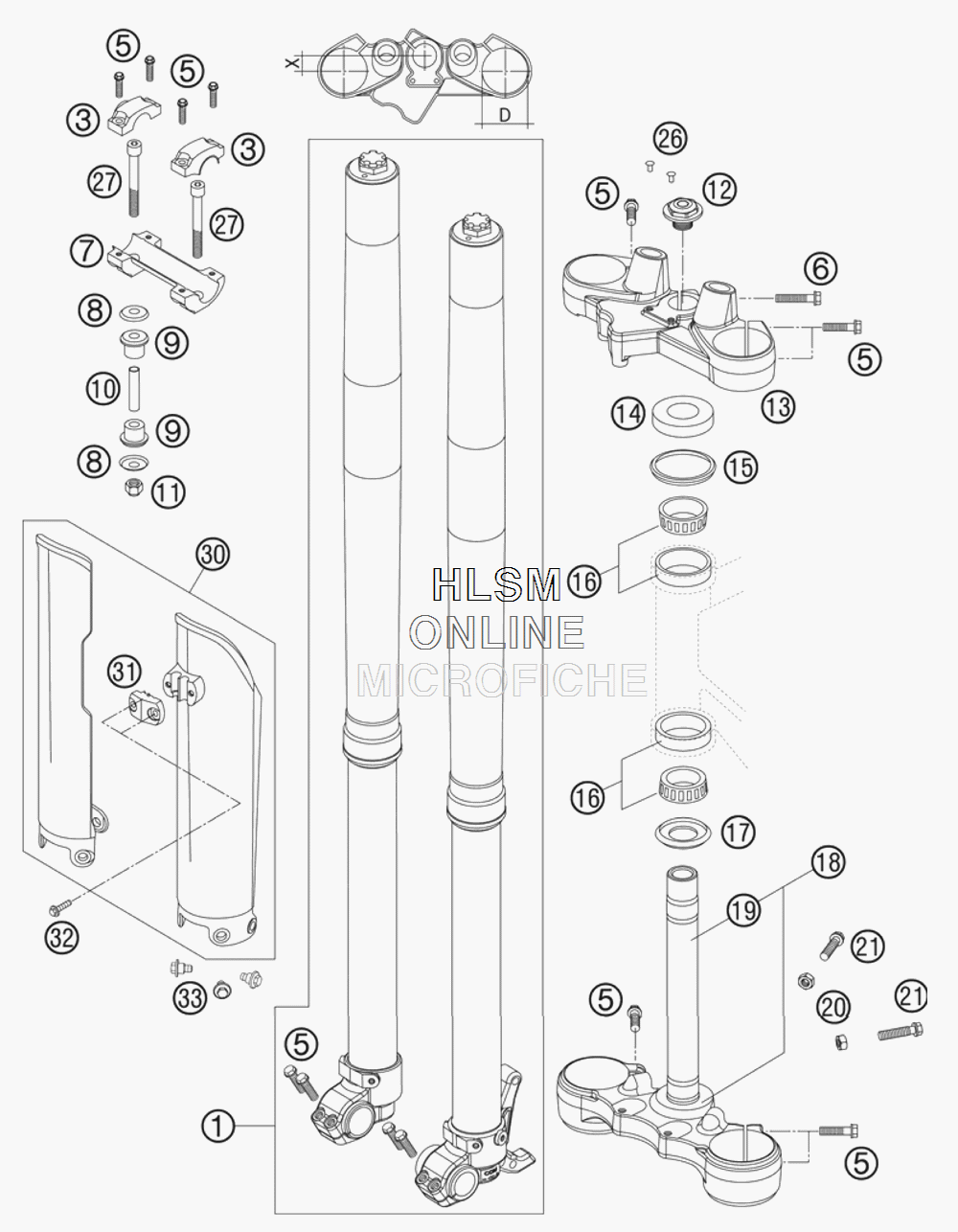

TELESCOPIC FORK для Ktm 950 Super Enduro - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    14187B32 FORK WP
    FORK WP
  • 3
    59001038300 HANDLEBAR CAMP 28MM ELOX.
    HANDLEBAR CAMP 28MM ELOX.
  • 5
    0015080303 HH COLLAR SCREW M 8X30 WS=10
    HH COLLAR SCREW M 8X30 WS=10
  • 6
    0015080353 HH COLLAR SCREW M 8X35 WS=10
    HH COLLAR SCREW M 8X35 WS=10
  • 7
    59001039200 HANDLEBAR SUPPORT 28 MM ELOX.
    HANDLEBAR SUPPORT 28 MM ELOX.
  • 8
    56401042000 WASHER 10,5X32X2
    WASHER 10,5X32X2
  • 9
    56401040000 RUBBER BUSHING
    RUBBER BUSHING
  • 10
    56401041100 SPACER TUBE 10,2X12X44
    SPACER TUBE 10,2X12X44
  • 11
    0982100003 SELF LOCK.NUT DIN 0982-M10 HIGH
    SELF LOCK.NUT DIN 0982-M10 HIGH
  • 12
    54801036200 STEER.HEAD SCREW M20X1,5 SW = 27
    STEER.HEAD SCREW M20X1,5 SW = 27
  • 13
    60001034020 TOP TRIPLE CLAMP X= 20MM/D = 54MM
    TOP TRIPLE CLAMP X= 20MM/D = 54MM
  • 14
    61001086000 STEERING HEAD COVER
    STEERING HEAD COVER
  • 15
    54601184000 STEARING HEAD GASKET TOP
    STEARING HEAD GASKET TOP
  • 16
    54201081100 TAPERED ROLLER BEARING CPL.
    TAPERED ROLLER BEARING CPL.
  • 17
    54601084100 O-RING SUPPORT W. SEALING LIP
    O-RING SUPPORT W. SEALING LIP
  • 18
    60001032020 BOT.TRIPLE CLAMP CPL. D = 60MM
    BOT.TRIPLE CLAMP CPL. D = 60MM
  • 19
    60001033000 FORK TUBE LC8
    FORK TUBE LC8
  • 20
    0934080003 HEXAGON NUT D IN 0934-M 8
    HEXAGON NUT D IN 0934-M 8
  • 21
    0933080253 HH SCREW D IN 0933-M 8X25
    HH SCREW D IN 0933-M 8X25
  • 26
    60103088000 PLUG ZK 8/5
    PLUG ZK 8/5
  • 27
    0984100703 AH SCREW D IN 6912-M10X70
    AH SCREW D IN 6912-M10X70
  • 30
    5900109400030 FORK PROTECT. L/S+ R/S BLACK
    FORK PROTECT. L/S+ R/S BLACK
  • 31
    58201085000 CLAMP F.SPEED CABLE D =8MM
    CLAMP F.SPEED CABLE D =8MM
  • 32
    0017060203 EJOT PT SCREW K60X20 WS=6
    EJOT PT SCREW K60X20 WS=6
  • 33
    59001092050 SPECIAL SCREW M6X12,5 WS=8
    SPECIAL SCREW M6X12,5 WS=8
