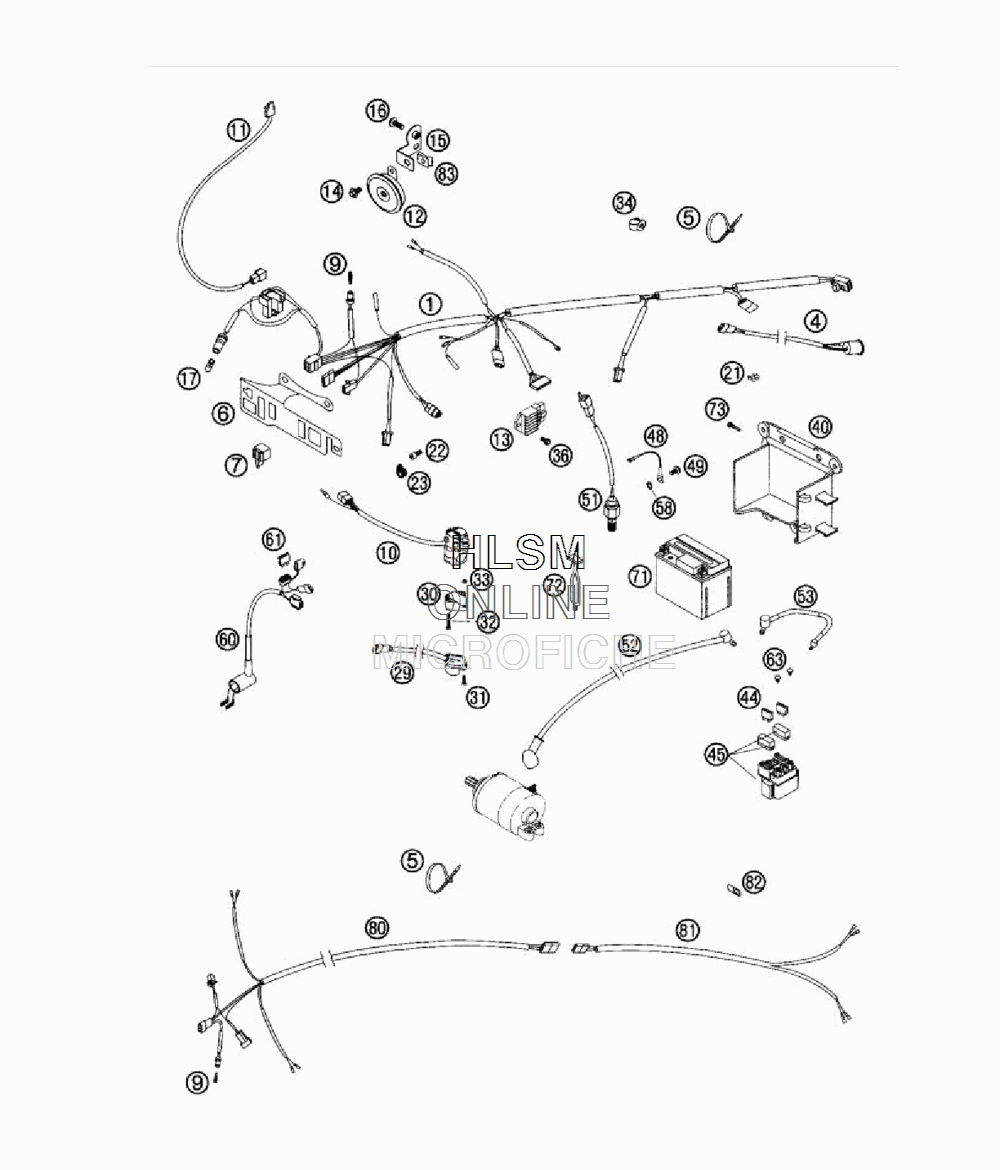

WIRING HARNESS (EU/AUS) для Ktm 525 MXC RFS - 2004 года выпуска`
-
№АртикулНазвание
-
159011075500 WIRING HARNESSWIRING HARNESS
-
450311076000 WIRING HARNESS REARWIRING HARNESS REAR
-
544011076200 CABLE TIE 200/3,6MM BLACKCABLE TIE 200/3,6MM BLACK
-
544011076305 CABLE TIE 300/4,8MM BLACKCABLE TIE 300/4,8MM BLACK
-
659011083000 SUPPORT BRACKET BLACKSUPPORT BRACKET BLACK
-
744611207200 FLASHER UNIT SUMITOMOFLASHER UNIT SUMITOMO
-
949111425000 BULB 12V 1,2W (W2X4,6D)BULB 12V 1,2W (W2X4,6D)
-
1050311070000 H.LIGHT SWITCH CEV 2/4TAKT (SYMBOLS WHITE)H.LIGHT SWITCH CEV 2/4TAKT (SYMBOLS WHITE)
-
1150311050100 FRONT BRAKE LIGHT SWITCHFRONT BRAKE LIGHT SWITCH
-
1250311060000 DC HORN 12V K80/L LEBDC HORN 12V K80/L LEB
-
1350311034000 VOLTAGE REGULA. 12VVOLTAGE REGULA. 12V
-
140014060103 HH COLLAR SCREW M 6X10 WS=8HH COLLAR SCREW M 6X10 WS=8
-
1559011061000 BRACKETBRACKET
-
160014060153 HH COLLAR SCREW M 6X15 WS=8HH COLLAR SCREW M 6X15 WS=8
-
1749011435000 BULB 12V 5W (W2,1X9,5D)BULB 12V 5W (W2,1X9,5D)
-
2157013072000 WIRING HOLDER 12MMWIRING HOLDER 12MM
-
2157013072100 WIRING HOLDER 16MMWIRING HOLDER 16MM
-
220912050083 AH SCREW DIN0912-M 5X 8AH SCREW DIN0912-M 5X 8
-
2357013070100 PVC-CLAMP 5/16" BLACKPVC-CLAMP 5/16" BLACK
-
2950311029000 FLASHER SWITCH CEVFLASHER SWITCH CEV
-
3013011070060 ADAPTER FOR FLASHER SWITCHADAPTER FOR FLASHER SWITCH
-
310985040163 FLAT HEAD SCREW DIN7985-M 4X16FLAT HEAD SCREW DIN7985-M 4X16
-
320084040223 CYL.HEAD SCREW DIN0084-M 4X22ACYL.HEAD SCREW DIN0084-M 4X22A
-
330934040003 HEXAGON NUT DIN0934-M 4HEXAGON NUT DIN0934-M 4
-
3458111076000 CABLE SUPPORT KHS NR.150-47610CABLE SUPPORT KHS NR.150-47610
-
360015060123 HH COLLAR SCREW M 6X12 WS=8HH COLLAR SCREW M 6X12 WS=8
-
4059011055000 BATTERY CARRIER PLASTIC BLACKBATTERY CARRIER PLASTIC BLACK
-
4458011109110 FUSE 10 AFUSE 10 A
-
4558211058000 STARTER RELAY DUKESTARTER RELAY DUKE
-
4858411097100 GROUND CABLE D=6MM L=140MMGROUND CABLE D=6MM L=140MM
-
490014060103 HH COLLAR SCREW M 6X10 WS=8HH COLLAR SCREW M 6X10 WS=8
-
5150311051100 BRAKE LIGHT SWITCH REARBRAKE LIGHT SWITCH REAR
-
5258411059100 STARTERCABLE 700 MMSTARTERCABLE 700 MM
-
5358711086000 WIRING HARNESS BATTERYWIRING HARNESS BATTERY
-
5858411098100 CONTACT WASHER M6 VSV-K6CONTACT WASHER M6 VSV-K6
-
6059011079000 FAN WIRING HARNESSFAN WIRING HARNESS
-
6158011109005 FUSE 5 AFUSE 5 A
-
630902060083 AH OVAL SCREW ISO 7380 M 6X8AH OVAL SCREW ISO 7380 M 6X8
-
7159011053000 BATTERY 12V/ 3,5 AHBATTERY 12V/ 3,5 AH
-
7250303018000 RUBBER FOR CENTER STANDRUBBER FOR CENTER STAND
-
730017060203 SPECIAL SCREW T60 6X20 WS=6SPECIAL SCREW T60 6X20 WS=6
-
8059011080000 FLASH.WIRINGHARNESS FRONTFLASH.WIRINGHARNESS FRONT
-
8159011081000 FLASH.WIRINGHARNESS REARFLASH.WIRINGHARNESS REAR
-
8250031003000 RETAINING PLATERETAINING PLATE
-
8354603048100 RANGE CHANGE METAL NUT M6RANGE CHANGE METAL NUT M6
