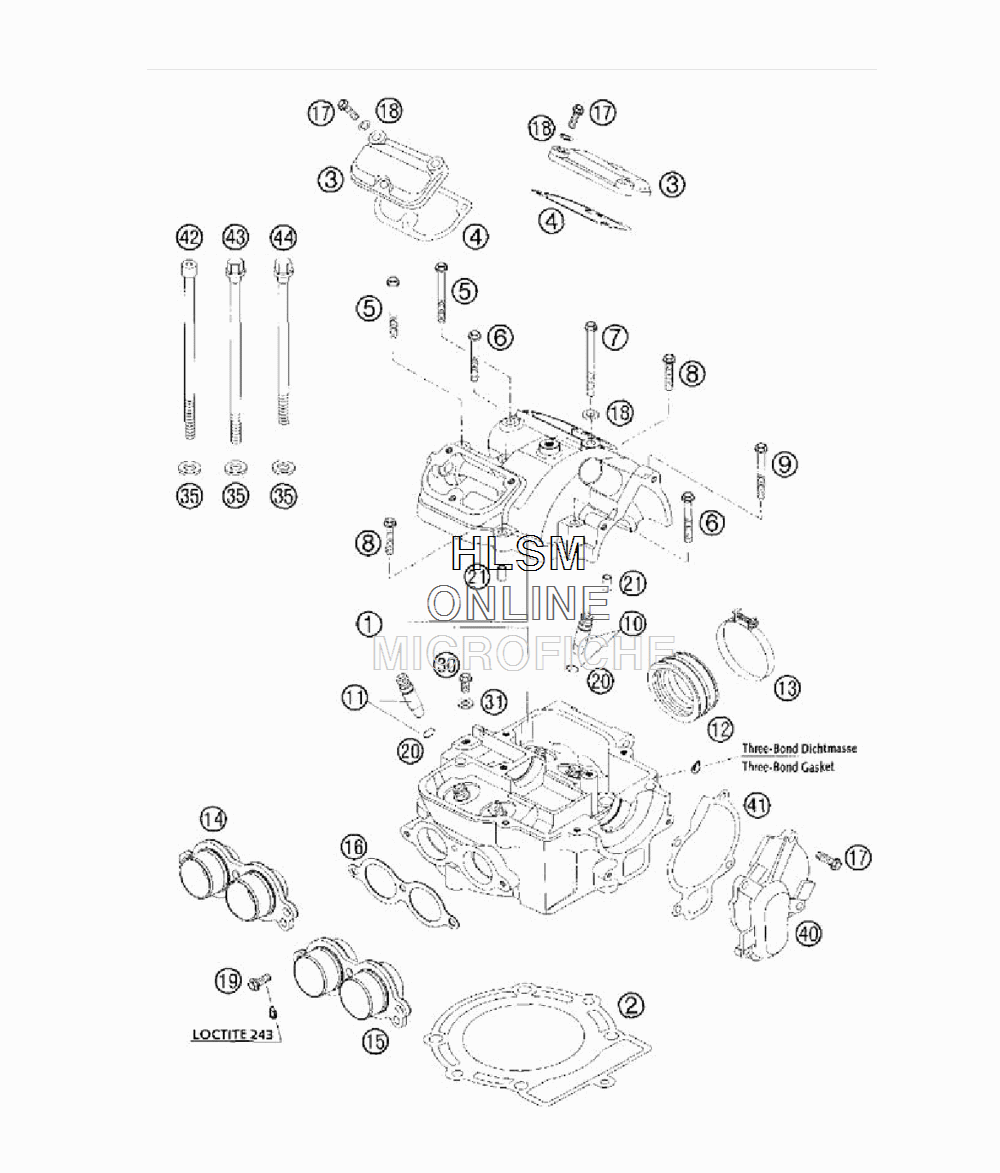

CYLINDER HEAD для Ktm 525 MXC RFS - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    59036020144 CYLINDER HEAD CPL.
    CYLINDER HEAD CPL.
  • 2
    59030036000 CYLINDER HEAD GASKET 95,3 MM
    CYLINDER HEAD GASKET 95,3 MM
  • 3
    58036052000 VALVE COVER REAR
    VALVE COVER REAR
  • 4
    58036053000 VALVE COVER GASKET
    VALVE COVER GASKET
  • 5
    0015060553 HH COLLAR SCREW M 6X55 WS=8
    HH COLLAR SCREW M 6X55 WS=8
  • 6
    0015060453 HH COLLAR SCREW M 6X45 WS=8
    HH COLLAR SCREW M 6X45 WS=8
  • 7
    0015060753 HH COLLAR SCREW M 6X75 WS=8
    HH COLLAR SCREW M 6X75 WS=8
  • 8
    0015060303 HH COLLAR SCREW M 6X30 WS=8
    HH COLLAR SCREW M 6X30 WS=8
  • 9
    0015060503 HH COLLAR SCREW M 6X50 WS=8
    HH COLLAR SCREW M 6X50 WS=8
  • 10
    59036025044 VALVE GUIDE INTAKE CPL.
    VALVE GUIDE INTAKE CPL.
  • 11
    59036026044 VALVE GUIDE EXHAUST CPL.
    VALVE GUIDE EXHAUST CPL.
  • 12
    59036044100 RUBBER CLAMP
    RUBBER CLAMP
  • 13
    59030061000 CLAMP D=56MM B=9MM M4X25
    CLAMP D=56MM B=9MM M4X25
  • 15
    59436039000 EXHAUST FLANGE CPL. 450/525
    EXHAUST FLANGE CPL. 450/525
  • 16
    59036041000 GASKET EXHAUST FLANGE 1MM
    GASKET EXHAUST FLANGE 1MM
  • 17
    0015060203 HH COLLAR SCREW M 6X20 WS=B
    HH COLLAR SCREW M 6X20 WS=B
  • 18
    0603061001 CU-SEAL RING DIN7603-6X10X1
    CU-SEAL RING DIN7603-6X10X1
  • 19
    0015060163 HH COLLAR SCREW M 6X16 WS=8
    HH COLLAR SCREW M 6X16 WS=8
  • 20
    0993012000 CIRCLIP DIN7993-RW12
    CIRCLIP DIN7993-RW12
  • 21
    59030023000 DOWEL 6X8X11,5
    DOWEL 6X8X11,5
  • 30
    59036006090 VENT SCREW M6X70 CPL.
    VENT SCREW M6X70 CPL.
  • 31
    58036065100 CU-SEAL RING 6 X 10 X 2
    CU-SEAL RING 6 X 10 X 2
  • 35
    59036090000 WASHER 10,8X18,8X1,5
    WASHER 10,8X18,8X1,5
  • 40
    59035052000 WATER PUMP COVER
    WATER PUMP COVER
  • 41
    59035053000 WATER PUMP COVER GASKET 0,5MM
    WATER PUMP COVER GASKET 0,5MM
  • 43
    59036079000 CYLINDER HEAD SCREW M10X158
    CYLINDER HEAD SCREW M10X158
