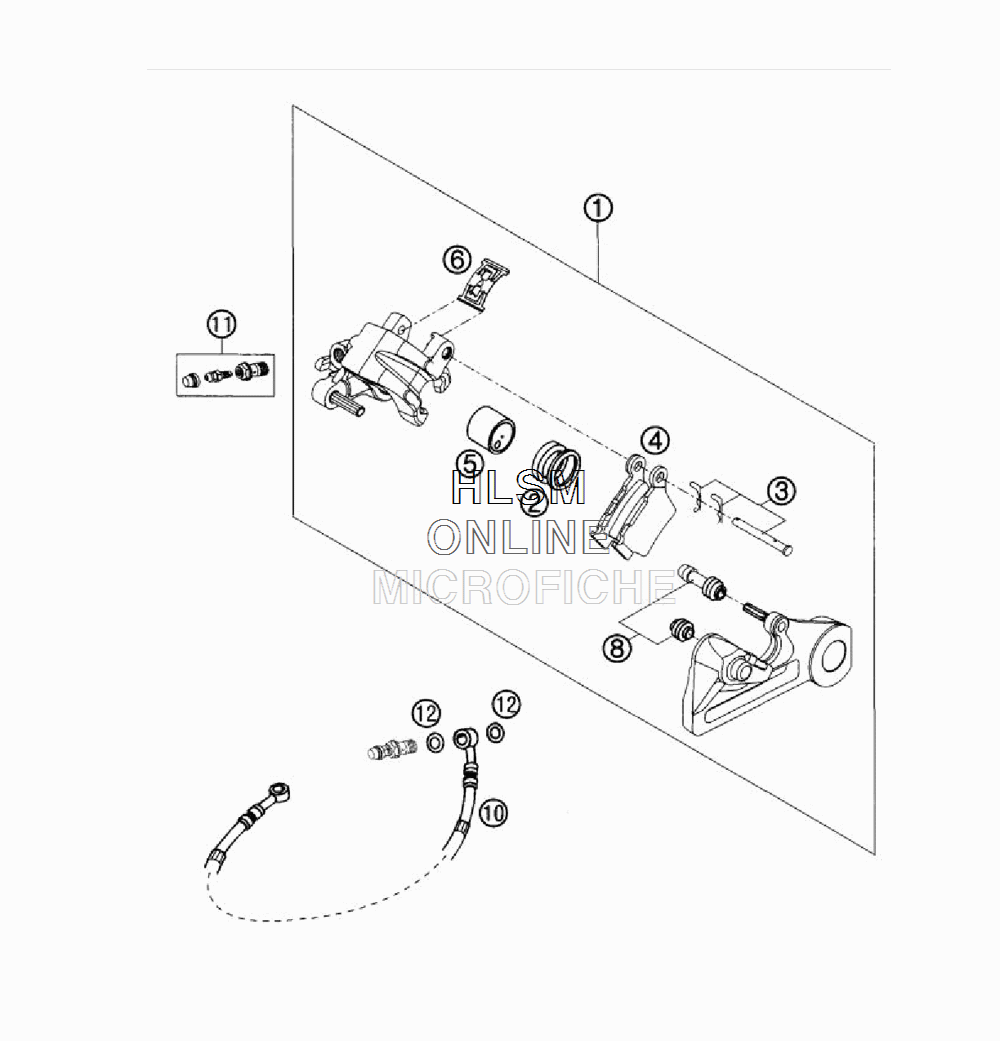

REAR BRAKE CALIPER для Ktm 525 MXC RFS - 2004 года выпуска`
-
№АртикулНазвание
-
154813080044 BRAKE CALIPER REAR CPL.BRAKE CALIPER REAR CPL.
-
250313081200 REPAIR KIT SEALING RINGS 26MMREPAIR KIT SEALING RINGS 26MM
-
354813082000 BOLT SET FOR BRAKE CALIPERBOLT SET FOR BRAKE CALIPER
-
454813090000 BRAKE PAD SET REAR TOSHIBA H38BRAKE PAD SET REAR TOSHIBA H38
-
554813083000 BRAKE PISTON 26MMBRAKE PISTON 26MM
-
654813018000 RETAINING SPRING SETRETAINING SPRING SET
-
854613218000 CUP SET SHORTCUP SET SHORT
-
1054813070000 BRAKE HOSE REAR 655MMBRAKE HOSE REAR 655MM
-
1154813020000 BLEEDER HOLLOW SCREW M10X1BLEEDER HOLLOW SCREW M10X1
-
1242013226000 CU-SEAL RING DIN7603-10X16X1CU-SEAL RING DIN7603-10X16X1
