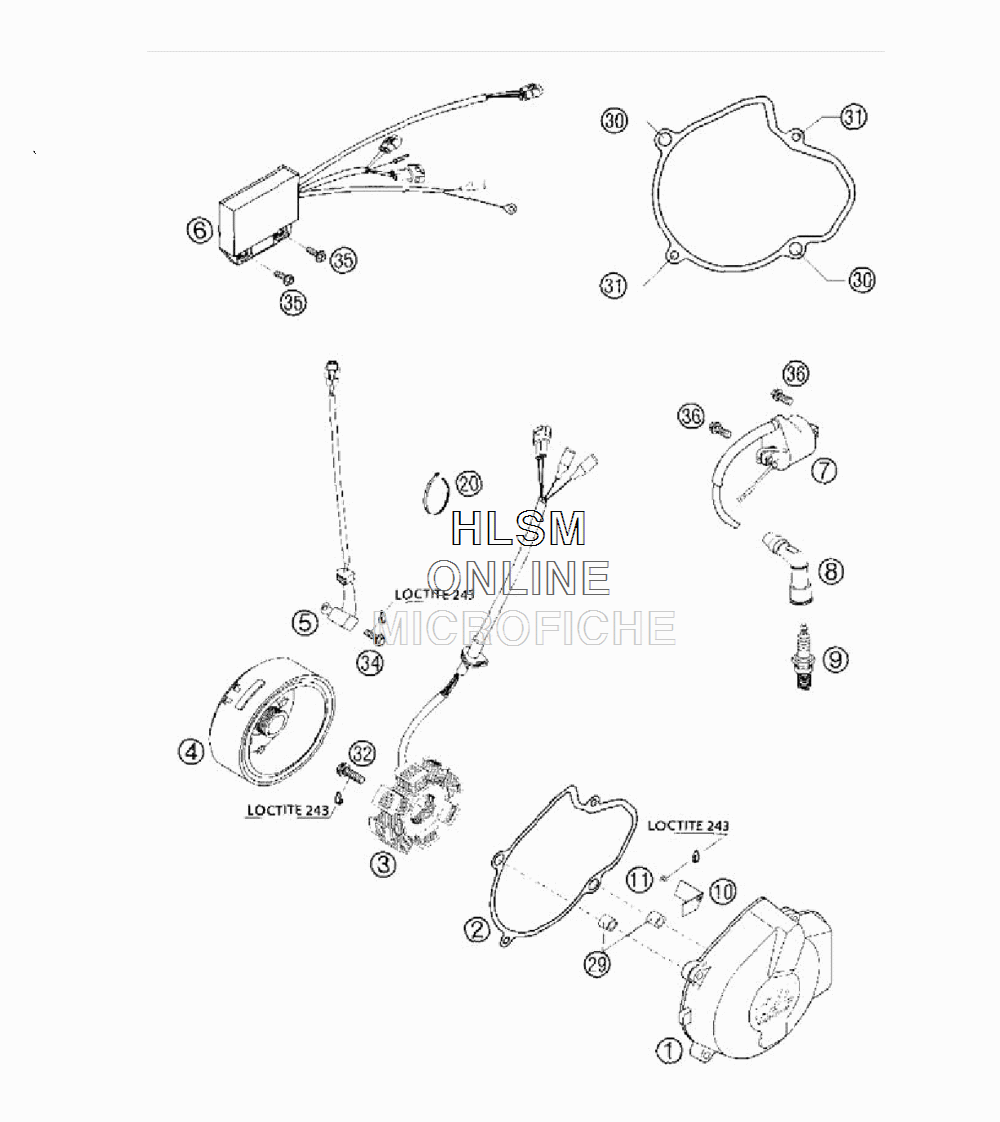

IGNITION SYSTEM для Ktm 525 MXC RFS - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    59030002000 IGNITION COVER 4K38 )2000 (PULVERIZED)
    IGNITION COVER 4K38 )2000 (PULVERIZED)
  • 2
    59030040000 IGNITION COVER GASKET 0,5MM
    IGNITION COVER GASKET 0,5MM
  • 3
    59039104000 STATOR CPL. 4K3B
    STATOR CPL. 4K3B
  • 4
    59039105200 FLYWHEEL 4K3B
    FLYWHEEL 4K3B
  • 5
    59039034000 PULSER COIL KOKUSAN 4K3-A/B
    PULSER COIL KOKUSAN 4K3-A/B
  • 6
    59039031100 DIGITALBOX KOKUSAN 4K3-A/B
    DIGITALBOX KOKUSAN 4K3-A/B
  • 7
    59039006000 IGNITIONCOIL KOKUSAN 4K3-A/B
    IGNITIONCOIL KOKUSAN 4K3-A/B
  • 8
    59039090100 SPARK PLUG CONNECT. VD05EG
    SPARK PLUG CONNECT. VD05EG
  • 9
    59039093100 SPARK PLUG NGK DCPR8E
    SPARK PLUG NGK DCPR8E
  • 10
    59030002050 SUPPORT FOR WIRE
    SUPPORT FOR WIRE
  • 11
    0084040063 CYL.HEAD SCREW DIN0O84-M 4X 6A
    CYL.HEAD SCREW DIN0O84-M 4X 6A
  • 20
    44011076100 CABLE TIE 100/2,5MM BLACK
    CABLE TIE 100/2,5MM BLACK
  • 29
    49030090000 DOWEL 9,8 X 7 X 10
    DOWEL 9,8 X 7 X 10
  • 30
    0015060353 HH COLLAR SCREW M 6X35 WS=8
    HH COLLAR SCREW M 6X35 WS=8
  • 31
    0015060303 HH COLLAR SCREW M 6X30 WS=8
    HH COLLAR SCREW M 6X30 WS=8
  • 32
    0015060203 HH COLLAR SCREW M 6X20 WS=8
    HH COLLAR SCREW M 6X20 WS=8
  • 34
    0015050163 HH COLLAR SCREW M 5X16 WS=8
    HH COLLAR SCREW M 5X16 WS=8
  • 35
    0014060103 HH COLLAR SCREW M 6X10 WS=8
    HH COLLAR SCREW M 6X10 WS=8
  • 36
    0015060163 HH COLLAR SCREW M 6X96 WS=8
    HH COLLAR SCREW M 6X96 WS=8
