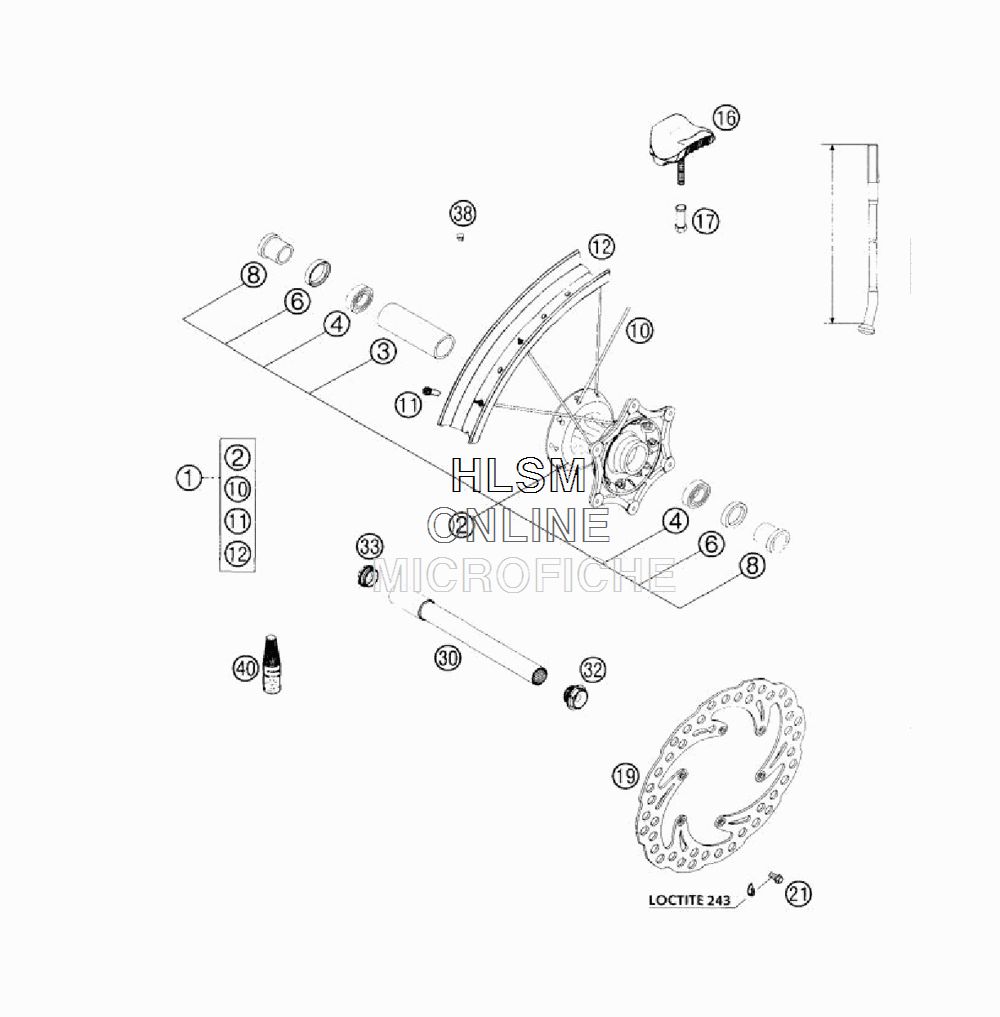

FRONT WHEEL для Ktm 525 MXC RFS - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    54809001144 FRONT WHEEL 1,6X21" DID (EURO)
    FRONT WHEEL 1,6X21" DID (EURO)
  • 1
    54809001244 FRONT WHEEL 1,6X21" EXCEL (USA)
    FRONT WHEEL 1,6X21" EXCEL (USA)
  • 2
    5480901000096 FRONT HUB SX GOLD
    FRONT HUB SX GOLD
  • 3
    54809011000 BEA.SPACERTUBE 35X2 L=79,4
    BEA.SPACERTUBE 35X2 L=79,4
  • 4
    0625069068 GR.BALL BEAR.6906 DDU2CG23S6NM
    GR.BALL BEAR.6906 DDU2CG23S6NM
  • 6
    0760354771 SHAFT SEAL RING 35X47X7 ASL
    SHAFT SEAL RING 35X47X7 ASL
  • 8
    54809012000 SPACER BUSHING F. FR. WHEEL
    SPACER BUSHING F. FR. WHEEL
  • 10
    50309072230 SPOKE M4,5X230-15G 21" DDE
    SPOKE M4,5X230-15G 21" DDE
  • 11
    50309072000 SPOKE NIPPLE M4,5X0,75 8X21
    SPOKE NIPPLE M4,5X0,75 8X21
  • 12
    54609070200 FRONT RIM 1,6X21" DID (EURO)
    FRONT RIM 1,6X21" DID (EURO)
  • 12
    54809070000 FRONT RIM 1,6X21" EXCEL AL7 (USA)
    FRONT RIM 1,6X21" EXCEL AL7 (USA)
  • 16
    51009100100 RIM LOCK VM1 (1,60")
    RIM LOCK VM1 (1,60")
  • 17
    50310090050 NUT FOR WHEEL HOLDER
    NUT FOR WHEEL HOLDER
  • 19
    54809060100 BRAKE DISC FRONT D=260MM
    BRAKE DISC FRONT D=260MM
  • 21
    59009062013 SPECIAL SCREW M6X13 WS=8 10.9
    SPECIAL SCREW M6X13 WS=8 10.9
  • 30
    54809081000 WHEEL SPIN.FR. D=26 M24X1,5
    WHEEL SPIN.FR. D=26 M24X1,5
  • 32
    54809082000 SPINDLE SCREW M24X1,5 WS=27
    SPINDLE SCREW M24X1,5 WS=27
  • 33
    54809081050 PLUG BUSHING WS=27
    PLUG BUSHING WS=27
  • 38
    55003135000 PLUG FOR RIM
    PLUG FOR RIM
  • 40
    6899785 LOCTITE 243 BLUE 6CCM
    LOCTITE 243 BLUE 6CCM
