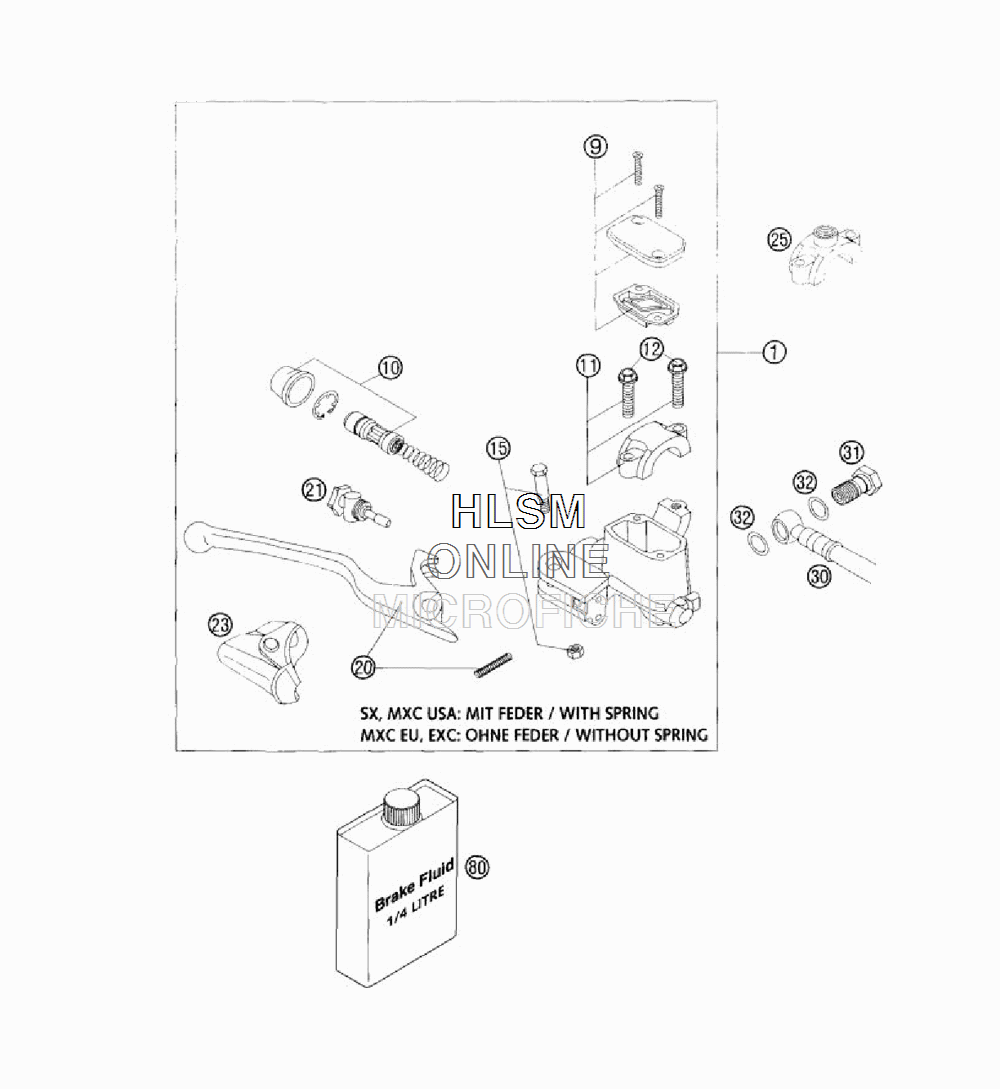

HAND BRAKE CONTROL для Ktm 525 MXC RFS - 2004 года выпуска
-
№АртикулНазвание
-
150313001100 HANDBRAKE CYL. NAT.HANDBRAKE CYL. NAT.
-
950313003000 HANDBRAKE CYL.COVER CPL.HANDBRAKE CYL.COVER CPL.
-
1050313008300 REP.SET PISTON D=11REP.SET PISTON D=11
-
1150313005000 CLAMP CPL. NATURECLAMP CPL. NATURE
-
120015060253 HH COLLAR SCREW M 6X25 WS=8HH COLLAR SCREW M 6X25 WS=8
-
1550313006100 LEVER SCREW CPL.LEVER SCREW CPL.
-
2050313002100 HANDBRAKE LEVER SHORTHANDBRAKE LEVER SHORT
-
2150313007100 ADJUSTING SCREW CPL.ADJUSTING SCREW CPL.
-
2350313004000 PROTECTION CAP HAND BRAKE CYL.PROTECTION CAP HAND BRAKE CYL.
-
2558012040150 CLAMP FOR MIRROWCLAMP FOR MIRROW
-
3059013011000 BRAKEHO. FRONT 1300MMBRAKEHO. FRONT 1300MM
-
3150213025000 HOLLOW SCREW M10X1X19HOLLOW SCREW M10X1X19
-
3242013226000 CU-SEAL RING DIN7603-10X16X1CU-SEAL RING DIN7603-10X16X1
-
80306054 BRAKE FLUID DOT 5.1BRAKE FLUID DOT 5.1
