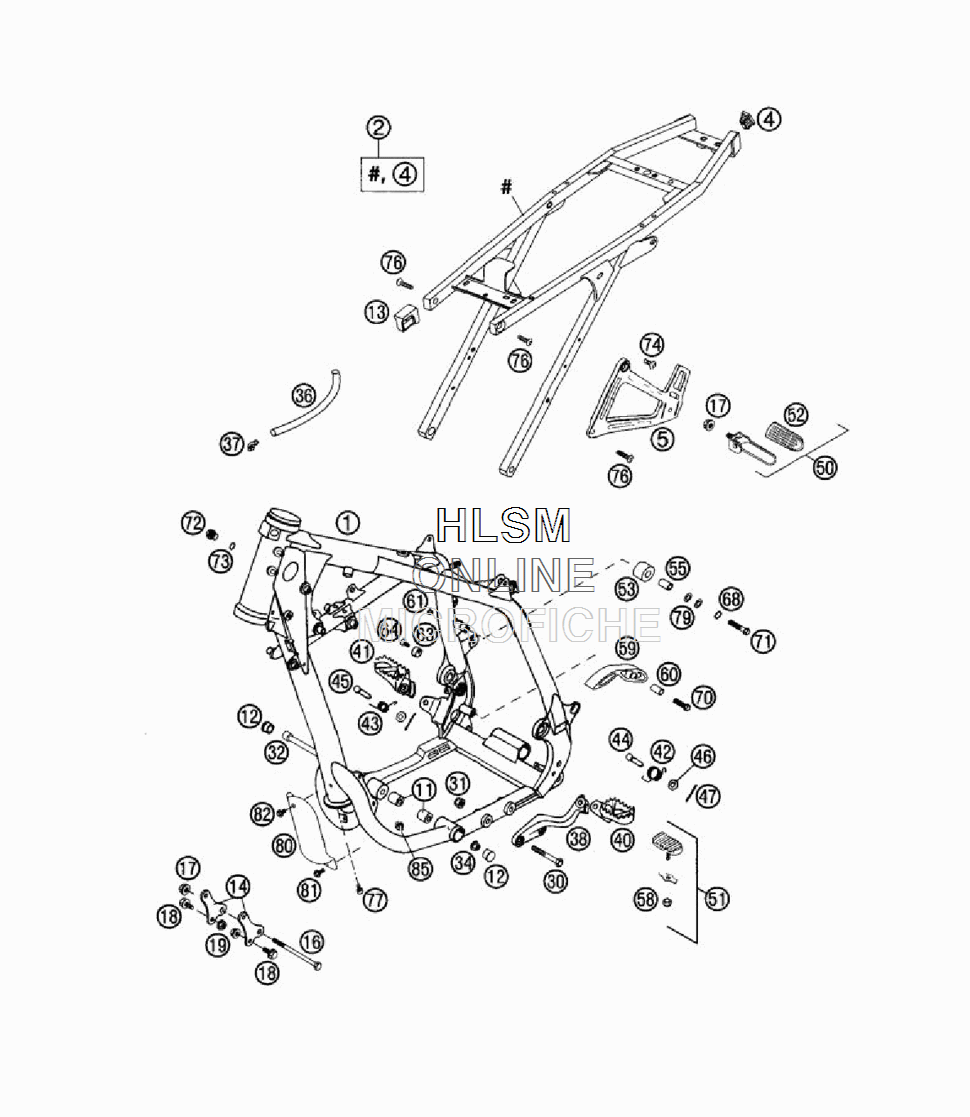

FRAME - SUB FRAME для Ktm LC4 640 Duke - 2002 года выпуска`

№

Артикул

Название
1

5870300114430 FRAME CPL. BLACK

FRAME CPL. BLACK

0 ₽
2

58703002044 SUB FRAME CPL. BLACK

SUB FRAME CPL. BLACK

120 680 ₽
4

58303002090 PLUG 12 X 17 MM

PLUG 12 X 17 MM

300 ₽
5

5810300320030 FOOTREST BRACKET L/S BLACK

FOOTREST BRACKET L/S BLACK

14 250 ₽
5

5810300420030 FOOTREST BRACKET R/S BLACK

FOOTREST BRACKET R/S BLACK

19 040 ₽
11

58003012000 SPACER ROLLER 10,3X20X22

SPACER ROLLER 10,3X20X22

2 720 ₽
12

71001012100 PVC CAP D=22MM

PVC CAP D=22MM

590 ₽
13

58307015000 TANK SUPPORT

TANK SUPPORT

1 790 ₽
14

58303055000 ENGINE SUPPORT AGW

ENGINE SUPPORT AGW

3 410 ₽
16

0931101103 HH SCREW DIN0931-M10X110

HH SCREW DIN0931-M10X110

600 ₽
17

49009082000 SELF LOCKING NUT M10 FK1O

SELF LOCKING NUT M10 FK1O

640 ₽
18

49109481052 HH COLLAR SCREW M 8X16 WS=13

HH COLLAR SCREW M 8X16 WS=13

590 ₽
19

54310086200 SELF LOCKING NUT M8 10.9

SELF LOCKING NUT M8 10.9

500 ₽
30

0931100603 HH SCREW DIN0931-M10X60

HH SCREW DIN0931-M10X60

0 ₽
31

0985100003 SELF LOCKING NUT DIN0985-M10

SELF LOCKING NUT DIN0985-M10

350 ₽
32

0912101603 AH SCREW DIN0912-M10X160

AH SCREW DIN0912-M10X160

1 810 ₽
34

54630044000 COLLAR NUT M10 WS=13

COLLAR NUT M10 WS=13

680 ₽
36

55007016001 PVC-HOSE 7X10 PER METRE

PVC-HOSE 7X10 PER METRE

1 640 ₽
37

50303089000 ANGEL PIECE '97

ANGEL PIECE '97

1 160 ₽
38

5830303800030 FOOTREST BRACKET L/S BLACK

FOOTREST BRACKET L/S BLACK

11 920 ₽
40

5830304000030 FOOTREST L/S BLACK

FOOTREST L/S BLACK

7 600 ₽
41

5460314000030 FOOTREST R/S BLACK

FOOTREST R/S BLACK

8 250 ₽
42

58303041000 FOOTREST SPRING L/S

FOOTREST SPRING L/S

1 750 ₽
43

54603041000 FOOTREST SPRING L/S & R/S

FOOTREST SPRING L/S & R/S

1 110 ₽
44

58303044000 BOLT FOR FOOTREST

BOLT FOR FOOTREST

2 080 ₽
45

54603044000 BOLT FOR FOOTREST 9,8 X 50

BOLT FOR FOOTREST 9,8 X 50

2 050 ₽
46

0125100003 WASHER DIN0125-A10,5

WASHER DIN0125-A10,5

290 ₽
47

0094032253 PIN DIN0094-3,2X25 STEEL

PIN DIN0094-3,2X25 STEEL

290 ₽
50

58303050044 FOOTREST REAR L/S CPL.

FOOTREST REAR L/S CPL.

28 790 ₽
50

58303150044 FOOT REST REAR R/S CPL.

FOOT REST REAR R/S CPL.

28 270 ₽
51

58303045044 FOOTREST RUBBER CPL.

FOOTREST RUBBER CPL.

4 590 ₽
52

58303051000 FOOTREST RUBBER L/S & R/S

FOOTREST RUBBER L/S & R/S

3 970 ₽
53

58403060000 CHAIN ROLL 12X28X22

CHAIN ROLL 12X28X22

1 400 ₽
55

58403060065 BUSH CHAIN ROLL 8X12X23

BUSH CHAIN ROLL 8X12X23

700 ₽
58

0985060003 SELF LOCK. NUT DIN0985-M 6

SELF LOCK. NUT DIN0985-M 6

290 ₽
59

51103053000 CHAIN SLIDING PIECE BELOW

CHAIN SLIDING PIECE BELOW

2 110 ₽
60

51103053051 BUSHING 8,2X10X20

BUSHING 8,2X10X20

930 ₽
61

54403135000 PLASTIC CAP SFL10

PLASTIC CAP SFL10

380 ₽
63

58303063000 BRAKE LEVER STOP

BRAKE LEVER STOP

1 380 ₽
64

0991060203 FLAT HEAD SCREW DIN7991-M 6X20

FLAT HEAD SCREW DIN7991-M 6X20

290 ₽
68

36003014000 LOCK WASHER 8MM

LOCK WASHER 8MM

290 ₽
70

0015080303 HH COLLAR SCREW M8X30 WS=10

HH COLLAR SCREW M8X30 WS=10

700 ₽
71

0015080453 HH COLLAR SCREW M 8X45 WS=10

HH COLLAR SCREW M 8X45 WS=10

410 ₽
72

0910100003 PLUG DIN0910-M 10X1

PLUG DIN0910-M 10X1

790 ₽
73

58038022900 CU-SEAL RING 10 X 14 X 1,5

CU-SEAL RING 10 X 14 X 1,5

380 ₽
74

54610052000 SPROCKET SCREW-AH M8X20 WS=6

SPROCKET SCREW-AH M8X20 WS=6

410 ₽
76

54510052100 SPROCKET SCREW-AH M8X26 WS=6

SPROCKET SCREW-AH M8X26 WS=6

500 ₽
77

0984060103 AH SCREW DIN6912-M 6X10

AH SCREW DIN6912-M 6X10

210 ₽
79

0125080003 WASHER DIN0125-A 8,4

WASHER DIN0125-A 8,4

120 ₽
80

58303010000 COVER OIL FILTER

COVER OIL FILTER

9 230 ₽
81

0014060153 HH COLLAR SCREW M 6X15 WS=8

HH COLLAR SCREW M 6X15 WS=8

560 ₽
82

0014060103 HH COLLAR SCREW M6X10 WS=8

HH COLLAR SCREW M6X10 WS=8

500 ₽
85

50235033300 SNAP-NUT HOLDER M6 KP142

SNAP-NUT HOLDER M6 KP142

970 ₽
