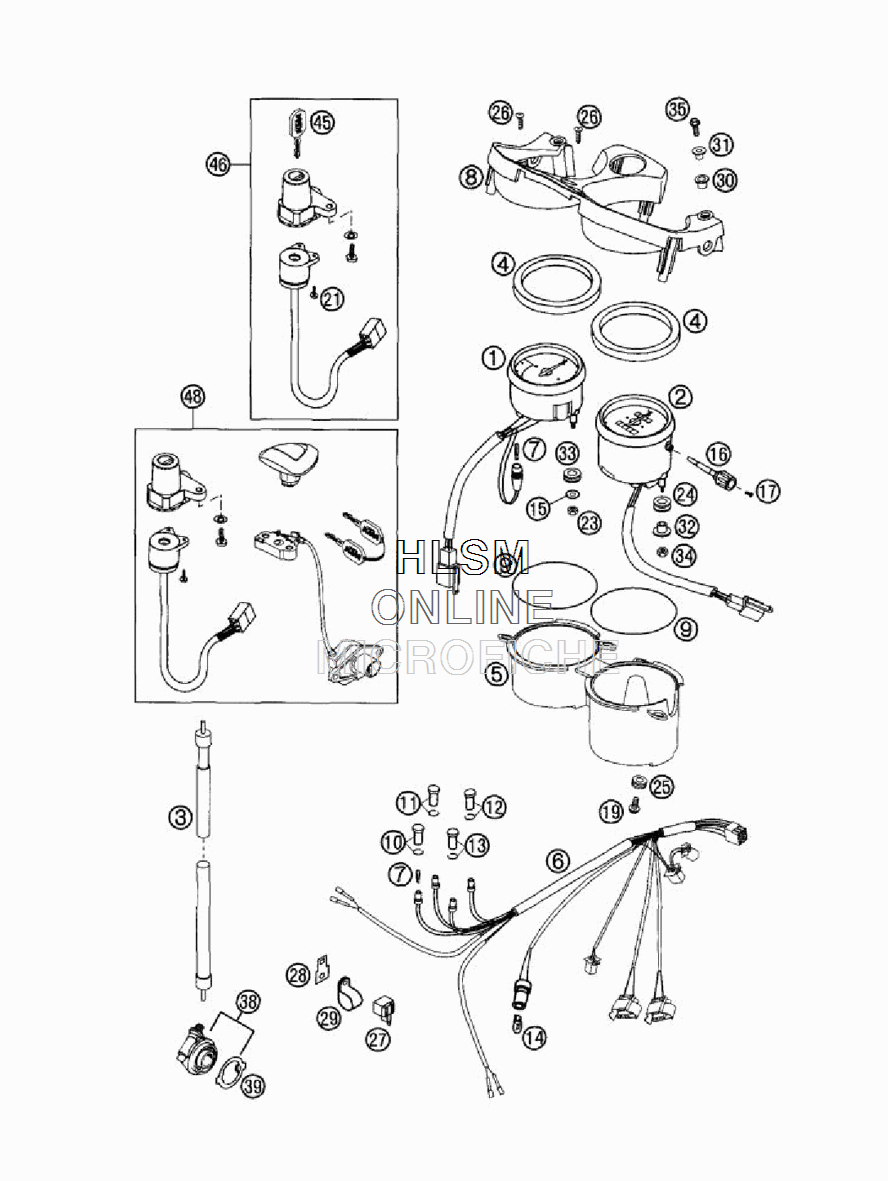

SPEEDOMETER - TACHOMETER для Ktm LC4 640 Duke - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    58714075000 TACHOMETER
    TACHOMETER
  • 2
    58714057000 SPEEDOMETER KMH
    SPEEDOMETER KMH
  • 2
    58714057100 SPEEDOMETER MILES
    SPEEDOMETER MILES
  • 3
    58714055000 SPEEDOM.CABLE M12/12 785MM
    SPEEDOM.CABLE M12/12 785MM
  • 4
    58714067000 FOAM RUBBER RING 92X110X15
    FOAM RUBBER RING 92X110X15
  • 5
    58711051000 INSTRUMENTS BRACKET
    INSTRUMENTS BRACKET
  • 6
    58711082000 WIRING HARNESS COCKPIT
    WIRING HARNESS COCKPIT
  • 7
    49111425000 BULB 12V 1,2W (W2X4,6D)
    BULB 12V 1,2W (W2X4,6D)
  • 8
    58714070000 INSTRUMENTS COVER
    INSTRUMENTS COVER
  • 9
    0770860025 O-RING 86,00X2,50 NBR70IT
    O-RING 86,00X2,50 NBR70IT
  • 10
    58011021300 H.BEAM INDICATOR LIGHT BLUE
    H.BEAM INDICATOR LIGHT BLUE
  • 11
    58011023300 NEUTRAL INDIC. LIGHT GREEN
    NEUTRAL INDIC. LIGHT GREEN
  • 12
    58011022400 TEMPERATURE WARN. LIGHT RED
    TEMPERATURE WARN. LIGHT RED
  • 13
    58011024300 FLASHER INDICAT. LIGHT GREEN
    FLASHER INDICAT. LIGHT GREEN
  • 14
    49011435000 BULB 12V 5W (W2,1X9,5D)
    BULB 12V 5W (W2,1X9,5D)
  • 15
    0134070003 WASHER DIN0134- 7,4
    WASHER DIN0134- 7,4
  • 16
    58714049000 RESET KNOB FOR TRIPMETER
    RESET KNOB FOR TRIPMETER
  • 17
    58714049010 SCREW FOR RESET KNOB
    SCREW FOR RESET KNOB
  • 19
    0016050121 PLASTIC SCREW KA5OX12 PT1411
    PLASTIC SCREW KA5OX12 PT1411
  • 21
    0985040123 FLAT HEAD SCREW DIN7985-M 4X12
    FLAT HEAD SCREW DIN7985-M 4X12
  • 23
    0934050003 HEXAGON NUT DIN0934-M 5
    HEXAGON NUT DIN0934-M 5
  • 24
    31008080000 RUBBER GROMMIT BL. DA60/110/30
    RUBBER GROMMIT BL. DA60/110/30
  • 25
    31008060000 RUBBER SLEEVE D=8MM OPEN
    RUBBER SLEEVE D=8MM OPEN
  • 26
    0017050181 PLASTIC SCREW KB 5X18 BLACK
    PLASTIC SCREW KB 5X18 BLACK
  • 27
    44611207200 FLASHER UNIT SUMITOMO ADV.
    FLASHER UNIT SUMITOMO ADV.
  • 28
    58211031100 BRACKET FOR FLASHER RELAYS
    BRACKET FOR FLASHER RELAYS
  • 29
    57013070400 PVC CLAMP HEYCO 11/16 3381
    PVC CLAMP HEYCO 11/16 3381
  • 30
    31008070000 RUBBER GROMMIT D=7,6MM
    RUBBER GROMMIT D=7,6MM
  • 31
    58714070050 BUSHING F.INSTRUMENTS COVER
    BUSHING F.INSTRUMENTS COVER
  • 32
    58714062010 DISTANCE BUSHING
    DISTANCE BUSHING
  • 33
    31008008000 RUBBER GROMMIT BLACK
    RUBBER GROMMIT BLACK
  • 34
    0985050003 SELF LOCKING NUT DIN0985-M 5
    SELF LOCKING NUT DIN0985-M 5
  • 35
    0015060163 HH COLLAR SCREW M 6X16 WS=8
    HH COLLAR SCREW M 6X16 WS=8
  • 38
    58311052000 SPEEDOME.DRIVE 748208(2,66)
    SPEEDOME.DRIVE 748208(2,66)
  • 39
    58111053100 DRIVING DOG F.SPEEDOM.DRIVE
    DRIVING DOG F.SPEEDOM.DRIVE
  • 45
    40011166100 KEY BLANK
    KEY BLANK
  • 46
    58411066000 IGNITION LOCK (4 SWITCH POSITIONS)
    IGNITION LOCK (4 SWITCH POSITIONS)
  • 46
    58411066100 IGNITION LOCK (3 SWITCH POSITIONS)
    IGNITION LOCK (3 SWITCH POSITIONS)
  • 48
    58711066044 LOCK SYSTEM (EURO)
    LOCK SYSTEM (EURO)
  • 48
    58711066144 LOCK SYSTEM (AUS)
    LOCK SYSTEM (AUS)
