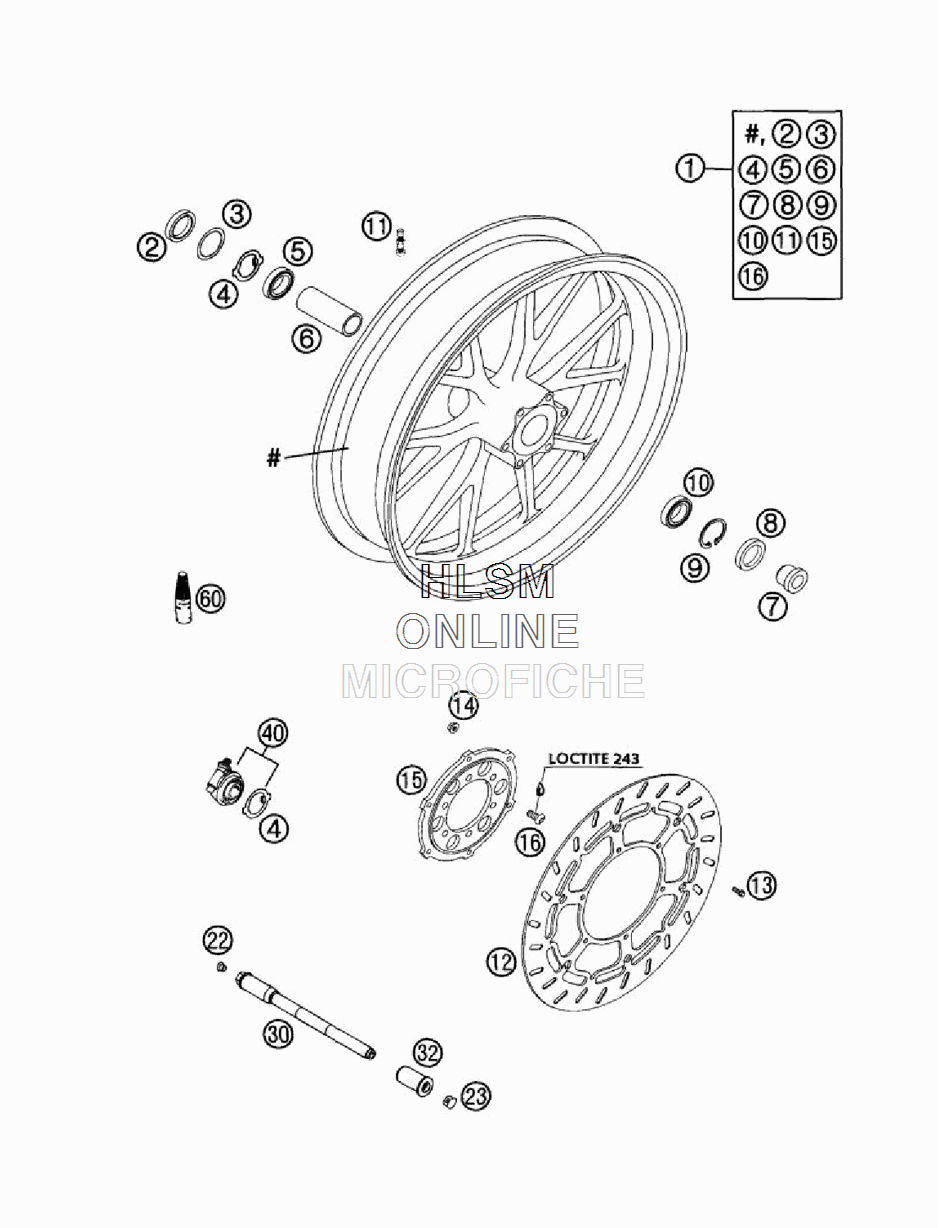

FRONT WHEEL для Ktm LC4 640 Duke - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    5870906800030 FRONT WHEEL CPL.3,5X17
    FRONT WHEEL CPL.3,5X17
  • 2
    0760405270 SHAFT SEAL RING 40X52X7 B
    SHAFT SEAL RING 40X52X7 B
  • 3
    58111054000 WASHER 40 X 52 X 0,15
    WASHER 40 X 52 X 0,15
  • 4
    58111053100 DRIVING DOG F.SPEEDOM.DRIVE
    DRIVING DOG F.SPEEDOM.DRIVE
  • 5
    0625062032 GROOVED BALL BEAR.6203 2RSR.C3
    GROOVED BALL BEAR.6203 2RSR.C3
  • 6
    54609011000 BEAR.SPACER TUBE 17,5X22X64,5
    BEAR.SPACER TUBE 17,5X22X64,5
  • 7
    58309051000 DISTANCE SLEEVE 17 X 30 X 26,7
    DISTANCE SLEEVE 17 X 30 X 26,7
  • 8
    0760253570 SHAFT SEAL RING 25X35X7 BTSL
    SHAFT SEAL RING 25X35X7 BTSL
  • 9
    0472035150 CIRCLIP DIN0472-35X1,5
    CIRCLIP DIN0472-35X1,5
  • 10
    0625060037 GROOVED BALL BEAR.6003 2RSR.C3
    GROOVED BALL BEAR.6003 2RSR.C3
  • 11
    58709077044 VALVE CPL. BBS
    VALVE CPL. BBS
  • 12
    58309060000 BRAKE DISK FRONT D=320MM
    BRAKE DISK FRONT D=320MM
  • 13
    0015060203 HH COLLAR SCREW M 6X20 WS=8
    HH COLLAR SCREW M 6X20 WS=8
  • 14
    56509064100 SELF LOCKING NUT M6 10.9
    SELF LOCKING NUT M6 10.9
  • 15
    58709061000 BRAKE DISC ADAPTER
    BRAKE DISC ADAPTER
  • 16
    0107080203 AH OVAL H.SCREW DIN0170-M 8X20
    AH OVAL H.SCREW DIN0170-M 8X20
  • 22
    50210086000 COVERING CAP SFL16
    COVERING CAP SFL16
  • 23
    58301098000 PLASTIC CAP 3/8 2663
    PLASTIC CAP 3/8 2663
  • 30
    58309081000 WHEEL SPINDLE M17X250
    WHEEL SPINDLE M17X250
  • 32
    58309082000 AXLE NUT M17 X 1,5
    AXLE NUT M17 X 1,5
  • 40
    58311052000 SPEEDOME.DRIVE 748208(2,66)
    SPEEDOME.DRIVE 748208(2,66)
  • 60
    6899785 LOCTITE 243 BLUE 6CCM
    LOCTITE 243 BLUE 6CCM
