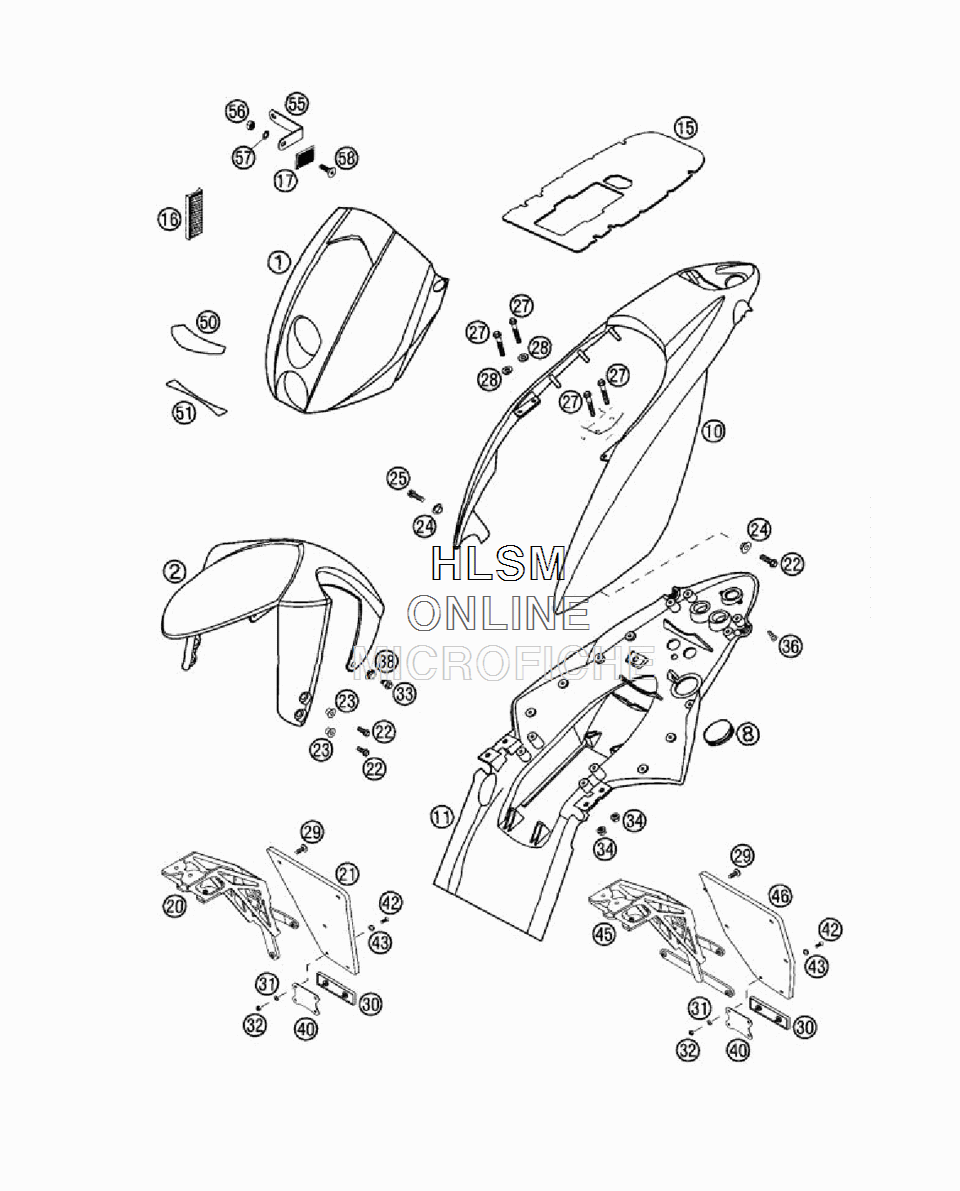

MASK W/ FENDERS для Ktm LC4 640 Duke - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    5870800100021 HEAD LIGHT MASK WHITE DUKE
    HEAD LIGHT MASK WHITE DUKE
  • 1
    5870800100030 HEAD LIGHT MASK BLACK DUKE
    HEAD LIGHT MASK BLACK DUKE
  • 1
    5870800100070 HEAD LIGHT MASK ORANGE DUKE
    HEAD LIGHT MASK ORANGE DUKE
  • 2
    58708010000 FENDER FRONT DUKE WHITE
    FENDER FRONT DUKE WHITE
  • 2
    5870801000030 FENDER FRONT DUKE BLACK
    FENDER FRONT DUKE BLACK
  • 2
    5870801000070 FENDER FRONT DUKE ORANGE
    FENDER FRONT DUKE ORANGE
  • 8
    54606004000 PLUG 37MM
    PLUG 37MM
  • 10
    5870801800030 REAR COVER TOP DUKE BLACK
    REAR COVER TOP DUKE BLACK
  • 11
    58708019000 REAR BASE
    REAR BASE
  • 15
    58708018050 CABLE COVER RUBBER 3MM
    CABLE COVER RUBBER 3MM
  • 16
    58412080100 REFLECTOR YELLOW
    REFLECTOR YELLOW
  • 17
    16512180100 REFLECTOR RED REAR
    REFLECTOR RED REAR
  • 20
    58708015000 NUMBER PLATE CARRIER
    NUMBER PLATE CARRIER
  • 21
    58708016000 NUMBER PLATE HOLDER
    NUMBER PLATE HOLDER
  • 22
    0015060163 HH COLLAR SCREW M 6X16 WS=8
    HH COLLAR SCREW M 6X16 WS=8
  • 23
    50308053000 BUSH FOR SPOILER 6X11X16X7,5
    BUSH FOR SPOILER 6X11X16X7,5
  • 24
    50308052000 BUSH FOR SPOILER 6X11X16X5
    BUSH FOR SPOILER 6X11X16X5
  • 25
    0015060203 HH COLLAR SCREW M 6X20 WS=8
    HH COLLAR SCREW M 6X20 WS=8
  • 27
    0015060353 HH COLLAR SCREW M 6X35 WS=8
    HH COLLAR SCREW M 6X35 WS=8
  • 28
    0021060003 WASHER DIN9021-A 6,4
    WASHER DIN9021-A 6,4
  • 29
    0014060153 HH COLLAR SCREW M 6X15 WS=8
    HH COLLAR SCREW M 6X15 WS=8
  • 30
    58412080000 REFLECTOR RED
    REFLECTOR RED
  • 31
    0125050003 WASHER DIN0125-A 5,3
    WASHER DIN0125-A 5,3
  • 32
    0985050003 SELF LOCKING NUT DIN0985-M 5
    SELF LOCKING NUT DIN0985-M 5
  • 33
    59001092050 SPECIAL SCREW M6X12,5 WS=8
    SPECIAL SCREW M6X12,5 WS=8
  • 34
    56509064100 SELF LOCKING NUT M6 10.9
    SELF LOCKING NUT M6 10.9
  • 36
    0016050121 PLASTIC SCREW KA50X12 PT1411
    PLASTIC SCREW KA50X12 PT1411
  • 38
    58708010050 RUBBER 60 SHORE EPDM BLACK
    RUBBER 60 SHORE EPDM BLACK
  • 40
    58412080050 BRACKET FOR REFLECTOR
    BRACKET FOR REFLECTOR
  • 42
    0966050163 OVAL HEAD SCREW DIN0966-M 5X16
    OVAL HEAD SCREW DIN0966-M 5X16
  • 43
    40006006000 WASHER 6MM
    WASHER 6MM
  • 45
    58708015100 NUMBER PLATE CARRIER
    NUMBER PLATE CARRIER
  • 46
    58708016100 NUMBER PLATE HOLDER
    NUMBER PLATE HOLDER
  • 50
    58708001051 HEAT SHIELD HIGH BEAM
    HEAT SHIELD HIGH BEAM
  • 51
    58708001052 HEAT SHIELD LOW BEAM
    HEAT SHIELD LOW BEAM
  • 55
    58712081000 HOLDER FOR REFLECTOR
    HOLDER FOR REFLECTOR
  • 56
    0934060003 HEXAGON NUT DIN0934-M 6
    HEXAGON NUT DIN0934-M 6
  • 57
    0797060003 TOOTH LOCK WASH. DIN6797-A 6,4
    TOOTH LOCK WASH. DIN6797-A 6,4
  • 58
    0991060203 FLAT HEAD SCREW DIN7991-M 6X20
    FLAT HEAD SCREW DIN7991-M 6X20
