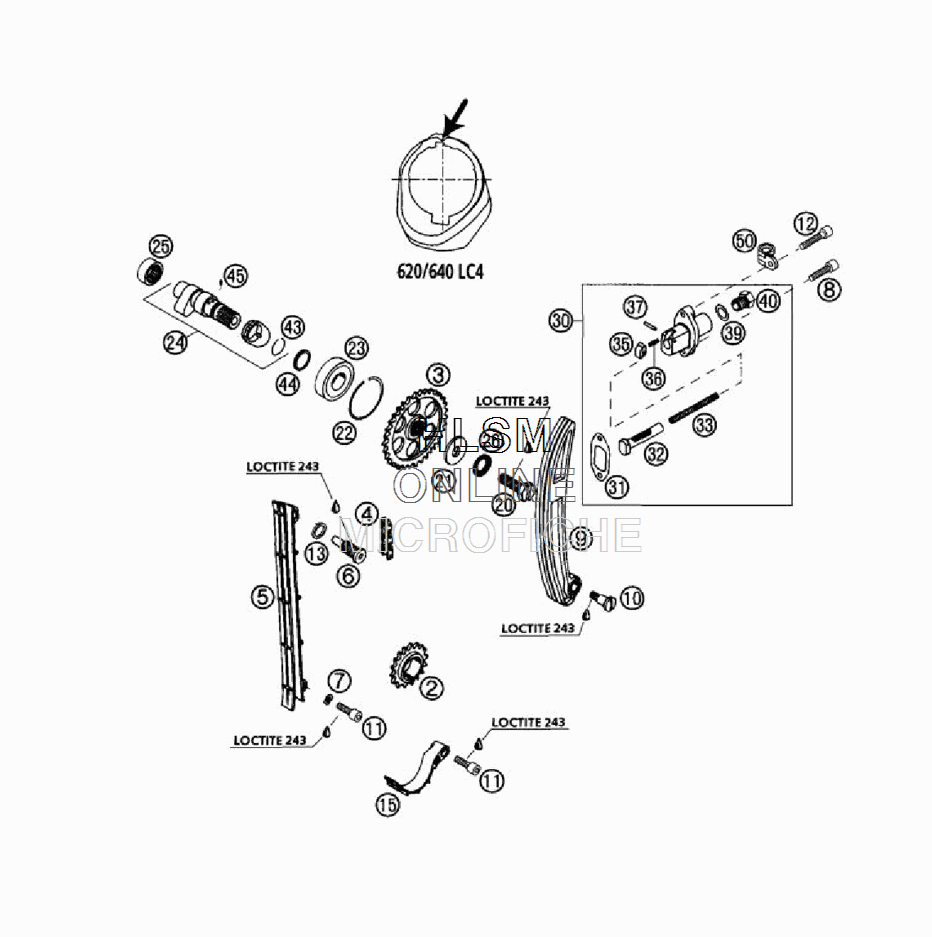

TIMING VALVE для Ktm LC4 640 Duke - 2002 года выпуска

  • №
    Артикул
    Название
  • 2
    58036014000 TIMING GEAR 17-T
    TIMING GEAR 17-T
  • 3
    58336011001 CAMSHAFT GEAR 34-T "01"
    CAMSHAFT GEAR 34-T "01"
  • 4
    58036013000 TIMING CHAIN C107C / 100 LINKS
    TIMING CHAIN C107C / 100 LINKS
  • 5
    58036001000 TIMING CHAIN GUIDE
    TIMING CHAIN GUIDE
  • 6
    58036009000 CHAIN GUIDE SCREW
    CHAIN GUIDE SCREW
  • 7
    0137060003 SPRING WASHER DIN0137-B 6
    SPRING WASHER DIN0137-B 6
  • 8
    0912060253 AH SCREW DIN0912-M 6X25
    AH SCREW DIN0912-M 6X25
  • 9
    58036002000 TIMING CHAIN TENSIONER
    TIMING CHAIN TENSIONER
  • 10
    0923080120 FLAT HEAD SCR. M 8X12
    FLAT HEAD SCR. M 8X12
  • 11
    0912060208 AH SCREW DIN0912-M 6X20 SS
    AH SCREW DIN0912-M 6X20 SS
  • 12
    0912060303 AH SCREW DIN0912-M 6X30
    AH SCREW DIN0912-M 6X30
  • 13
    58038022100 CU-SEAL RING 12 X 16 X 2
    CU-SEAL RING 12 X 16 X 2
  • 15
    58336018000 SECURING GUIDE
    SECURING GUIDE
  • 20
    58336112000 DRIVING SCREW M10X25
    DRIVING SCREW M10X25
  • 21
    58036012000 WASHER 10 X 28 X 3 HARDENED
    WASHER 10 X 28 X 3 HARDENED
  • 22
    58036096000 CIRCLIP SB 42
    CIRCLIP SB 42
  • 23
    0625060040 GROOVED BALL BEARING 6004 C3
    GROOVED BALL BEARING 6004 C3
  • 24
    58336110044 CAMSHAFT CPL.
    CAMSHAFT CPL.
  • 25
    58036097000 NEEDLE BEARING BK 2012
    NEEDLE BEARING BK 2012
  • 26
    36003014200 LOCKING WASHER 10MM
    LOCKING WASHER 10MM
  • 30
    58036003144 AUTOM.TENSIONER CPL.
    AUTOM.TENSIONER CPL.
  • 31
    58036005100 TENSIONER GASKET 1,5 MM
    TENSIONER GASKET 1,5 MM
  • 32
    58036004100 PRESSURE BOLT
    PRESSURE BOLT
  • 33
    58036006100 PRESSURE SPRING 0,9MM
    PRESSURE SPRING 0,9MM
  • 35
    58036007100 RATCHETING PAWL
    RATCHETING PAWL
  • 36
    58036007050 PRES.SPRING F.RATCHETING PAWL
    PRES.SPRING F.RATCHETING PAWL
  • 37
    0402031780 NEEDLE ROL.DIN5402 NRO 3X17,8
    NEEDLE ROL.DIN5402 NRO 3X17,8
  • 39
    58038022000 CU-SEAL RING DIN7603-12X18X1,5
    CU-SEAL RING DIN7603-12X18X1,5
  • 40
    58036008100 PLUG M12X1,5 ALU
    PLUG M12X1,5 ALU
  • 43
    0417200120 CIRCLIP WS20
    CIRCLIP WS20
  • 44
    58336015000 STEPPED RING
    STEPPED RING
  • 45
    58336016052 SPRING FOR AUTO-DECOMPR.
    SPRING FOR AUTO-DECOMPR.
  • 50
    54211052000 CLAMP RSGU 24/15
    CLAMP RSGU 24/15
