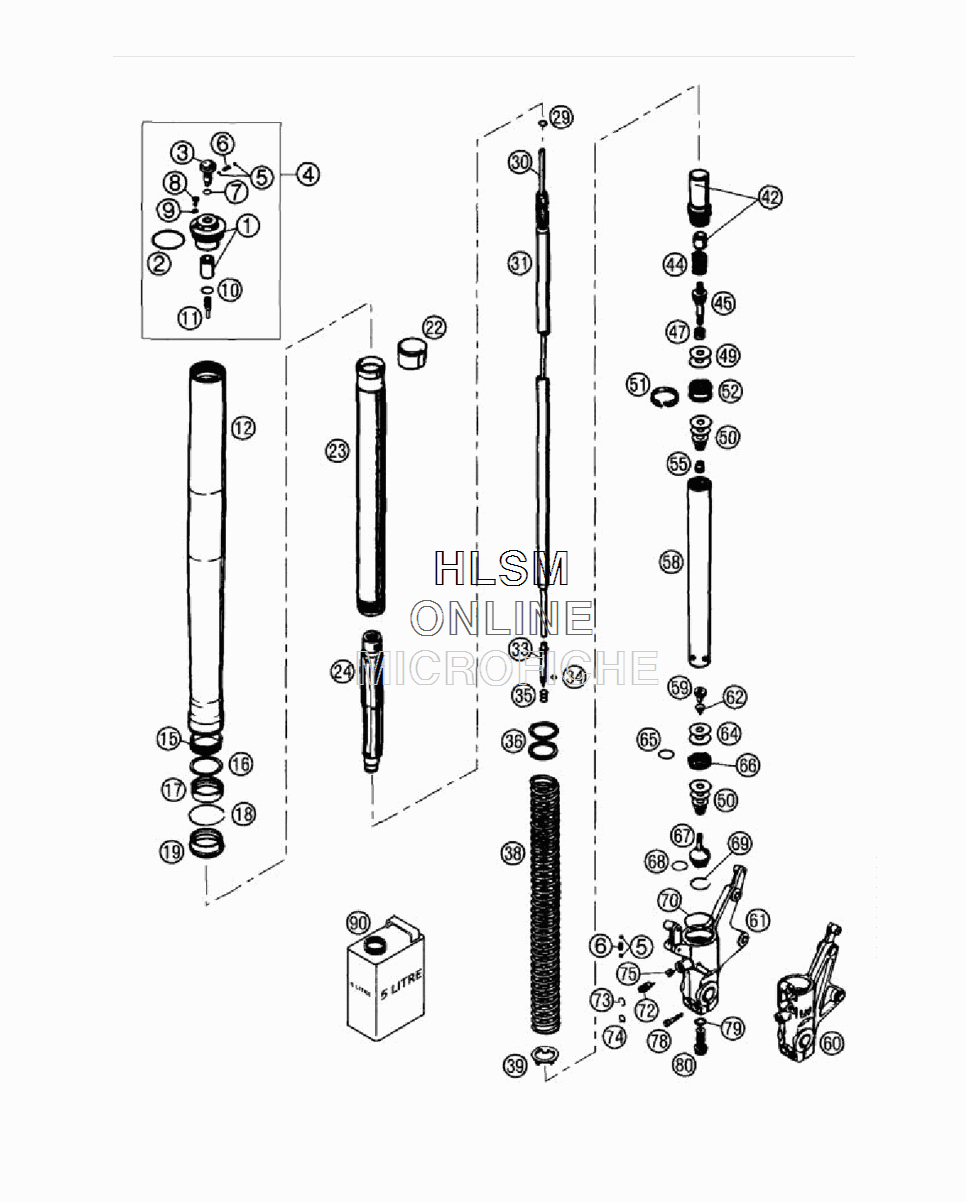

FORK LEGS - 43 - DISASEMBLED для Ktm LC4 640 Duke - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    48600020S SREW CAP+BUSH M51X1,5
    SREW CAP+BUSH M51X1,5
  • 2
    46810340 O-RING NBR 45X2
    O-RING NBR 45X2
  • 3
    48600018 KNOB REBOUNG ADJUSTER
    KNOB REBOUNG ADJUSTER
  • 4
    48600020S1 SCREW CAP M51X1,5 CPL.
    SCREW CAP M51X1,5 CPL.
  • 5
    40540603 STEEL BALL D=3MM
    STEEL BALL D=3MM
  • 6
    48600028 SPRING D=2,9 L=7,9
    SPRING D=2,9 L=7,9
  • 7
    48600044 O-RING NBR 6X1,5
    O-RING NBR 6X1,5
  • 8
    48600058 VENT SCREW M4X6
    VENT SCREW M4X6
  • 9
    48600009 O-RING NBR 3,7X1,6
    O-RING NBR 3,7X1,6
  • 10
    48600043 O-RING NBR 12X1,5
    O-RING NBR 12X1,5
  • 11
    48600019 HOLDER F. ADJUSTMENT TUBE D=4MM
    HOLDER F. ADJUSTMENT TUBE D=4MM
  • 12
    43570183 OUT.TUBE BLACK L=577MM D=54/54
    OUT.TUBE BLACK L=577MM D=54/54
  • 15
    43570019 DU-BUSH 47 X 43 X 20
    DU-BUSH 47 X 43 X 20
  • 16
    43570092 SUPPORT RING 45 X 52,5 X 1,5
    SUPPORT RING 45 X 52,5 X 1,5
  • 17
    43570140 OIL SEAL RING 43X53,15X9,5
    OIL SEAL RING 43X53,15X9,5
  • 18
    43570008 LOCK WASHER SB53
    LOCK WASHER SB53
  • 19
    43570094 DUST STRIPPER D=43MM
    DUST STRIPPER D=43MM
  • 22
    43570020 DU-BUSH 43,8 X 43 X 20
    DU-BUSH 43,8 X 43 X 20
  • 23
    43570064 INNER TUBE D=43MM L=550MM
    INNER TUBE D=43MM L=550MM
  • 24
    43570142S HYDR.STOP L=200MM D=27,5 CPL.
    HYDR.STOP L=200MM D=27,5 CPL.
  • 29
    48600175 O-RING NBR 6,3X2,4
    O-RING NBR 6,3X2,4
  • 30
    48600131 ADJUSTMENT TUBE L=357MM
    ADJUSTMENT TUBE L=357MM
  • 31
    48600132 PISTONROD D=14MM L=391MM M11X1
    PISTONROD D=14MM L=391MM M11X1
  • 33
    48600150 REBOUND NEEDLE
    REBOUND NEEDLE
  • 34
    48600046 O-RING NBR 3X1,5
    O-RING NBR 3X1,5
  • 35
    48600033 SPRING REBOUND NEEDLE C=4N/MM
    SPRING REBOUND NEEDLE C=4N/MM
  • 36
    48600053 SPACER 42X26,5X1,5
    SPACER 42X26,5X1,5
  • 36
    48600036 SPACER 42X26,5X2,5
    SPACER 42X26,5X2,5
  • 36
    48600037 SPACER 42X26,5X5
    SPACER 42X26,5X5
  • 36
    48600038 SPACER 42X26,5X10
    SPACER 42X26,5X10
  • 38
    95010018S SPRING 7,0 N/MM SET D=4,9MM
    SPRING 7,0 N/MM SET D=4,9MM
  • 39
    43570131 INTERM. RING 26,2X38,5X3
    INTERM. RING 26,2X38,5X3
  • 42
    43570132S SCREW SLEEVE M29,3X1+BUSH
    SCREW SLEEVE M29,3X1+BUSH
  • 44
    48600015 REBOUND SPRING D=14,6MM L=22MM
    REBOUND SPRING D=14,6MM L=22MM
  • 45
    48600151 TAB REBOUND
    TAB REBOUND
  • 47
    35480377 SPRING CHECK VALVE D=0,5
    SPRING CHECK VALVE D=0,5
  • 49
    48600062 CHECK VALVE 8X24X0,1
    CHECK VALVE 8X24X0,1
  • 49
    40541392 SHIM 6X8X0,2
    SHIM 6X8X0,2
  • 50
    40540400 SHIM 6X12X0,1
    SHIM 6X12X0,1
  • 50
    40540401 SHIM 6X14X0,1
    SHIM 6X14X0,1
  • 50
    40540402 SHIM 6X16X0,1
    SHIM 6X16X0,1
  • 50
    40540403 SHIM 6X18X0,1
    SHIM 6X18X0,1
  • 50
    40541402 SHIM 6X11X0,2
    SHIM 6X11X0,2
  • 50
    40540404 SHIM 6X12X0,15
    SHIM 6X12X0,15
  • 50
    40540405 SHIM 6X14X0,15
    SHIM 6X14X0,15
  • 50
    40540406 SHIM 6X16X0,15
    SHIM 6X16X0,15
  • 50
    40540407 SHIM 6X18X0,15
    SHIM 6X18X0,15
  • 50
    40540410 SHIM 6X16X0,2
    SHIM 6X16X0,2
  • 50
    40540411 SHIM 6X18X0,2
    SHIM 6X18X0,2
  • 50
    40540414 SHIM 6X16X0,25
    SHIM 6X16X0,25
  • 50
    40540447 SHIM 6X10X0,3
    SHIM 6X10X0,3
  • 50
    40541383 SHIM 6X11X0,1
    SHIM 6X11X0,1
  • 50
    40541391 SHIM 6X11X0,3
    SHIM 6X11X0,3
  • 50
    40541406 SHIM 6X11X0,15
    SHIM 6X11X0,15
  • 50
    40541417 SHIM 6X11X0,25
    SHIM 6X11X0,25
  • 50
    40540415 SHIM 6X18X0,25
    SHIM 6X18X0,25
  • 50
    48600063 SHIM 6X24X0,1
    SHIM 6X24X0,1
  • 50
    48600064 SHIM 6X22X0,1
    SHIM 6X22X0,1
  • 50
    48600065 SHIM 6X20X0,1
    SHIM 6X20X0,1
  • 50
    48600066 SHIM 6X24X0,1
    SHIM 6X24X0,1
  • 50
    48600067 SHIM 6X22X0,1
    SHIM 6X22X0,1
  • 50
    48600116 SHIM 6X24X0,1 DELTA
    SHIM 6X24X0,1 DELTA
  • 51
    48600060 PISTON RING 5X1X84
    PISTON RING 5X1X84
  • 52
    48600042 PISTON REBOUND D=27,7
    PISTON REBOUND D=27,7
  • 55
    40540486 NUT M6XO,5 REBOUND
    NUT M6XO,5 REBOUND
  • 58
    48600133 TUBE 29,3X1X405 D=28MM
    TUBE 29,3X1X405 D=28MM
  • 59
    40541241 CHECK VALVE NUT M6XO,5
    CHECK VALVE NUT M6XO,5
  • 60
    43570196 AXLE CLAMP L/S BLACK
    AXLE CLAMP L/S BLACK
  • 61
    43570197 AXLE CLAMP R/S BLACK
    AXLE CLAMP R/S BLACK
  • 62
    40541278 SPRING CHECK VALVE D=0,5MM
    SPRING CHECK VALVE D=0,5MM
  • 64
    48600061 CHECK VALVE 8X24X0,4
    CHECK VALVE 8X24X0,4
  • 65
    46811499 O-RING NBR 21X2
    O-RING NBR 21X2
  • 66
    48600047 PISTON COMPRESSION D=27,9
    PISTON COMPRESSION D=27,9
  • 67
    48600177 TAP COMPRESSION
    TAP COMPRESSION
  • 68
    43570180 O-RING NBR 15X1,5
    O-RING NBR 15X1,5
  • 69
    43570175 COPPER WASHER 29,8X1,6
    COPPER WASHER 29,8X1,6
  • 70
    43570023 O-RING NBR 41X2
    O-RING NBR 41X2
  • 72
    48600034 COMPRESSION ADJ. SCREW
    COMPRESSION ADJ. SCREW
  • 73
    48600051 LOCK WASHER RB12
    LOCK WASHER RB12
  • 74
    48600049 O-RING NBR 8X2
    O-RING NBR 8X2
  • 75
    48600153 NEEDLE COMPRESSION M10X1
    NEEDLE COMPRESSION M10X1
  • 78
    40540215 AH SCREW M 8X30
    AH SCREW M 8X30
  • 79
    46810146 COPPER WASHER 12X16X1,5
    COPPER WASHER 12X16X1,5
  • 80
    48600176 BOLT M12X1 D=3
    BOLT M12X1 D=3
  • 90
    40540882S1 FORKOIL SAE 5 5L. 0,8 LITRE
    FORKOIL SAE 5 5L. 0,8 LITRE
