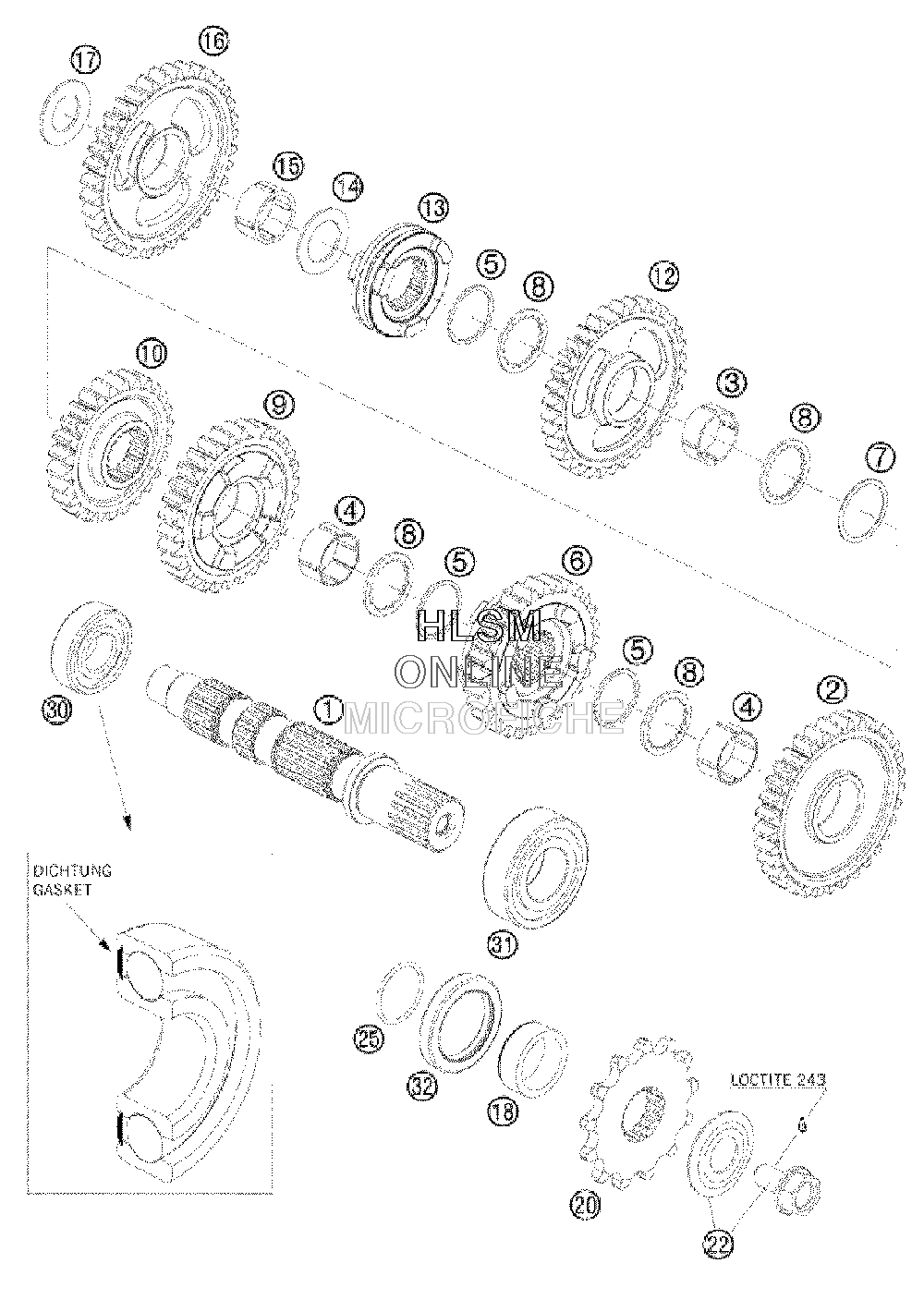

TRANSMISSION - COUNTERSHAFT для Ktm 525 XC - 2009 года выпуска`
-
№АртикулНазвание
-
183133010000 COUNTERSHAFTCOUNTERSHAFT
-
283033012000 IDLER GEAR 2.G. 33TIDLER GEAR 2.G. 33T
-
383033042000 NEEDLE BEAR. 22X26X10 SLOTTEDNEEDLE BEAR. 22X26X10 SLOTTED
-
483033041000 NEEDLE BEAR. 22X26X13 SLOTTEDNEEDLE BEAR. 22X26X13 SLOTTED
-
50417025000 CIRCLIP SW25CIRCLIP SW25
-
683033014000 SLIDING GEAR 4. G. 28TSLIDING GEAR 4. G. 28T
-
783033032000 DISTANCE DISK 25X30X0,2DISTANCE DISK 25X30X0,2
-
783033033000 DISTANCE DISK 25X30X0,3DISTANCE DISK 25X30X0,3
-
883033022000 STOP DISK 22,6X30X1,5 18TSTOP DISK 22,6X30X1,5 18T
-
983033013000 IDLER GEAR 3.G. 30TIDLER GEAR 3.G. 30T
-
1083033015100 SOLID GEAR 5.G. 26TSOLID GEAR 5.G. 26T
-
1283033018100 IDLER GEAR REVERSE-GEARIDLER GEAR REVERSE-GEAR
-
1383033017000 SLIDING SLEEVE REVERSE-GEARSLIDING SLEEVE REVERSE-GEAR
-
1483033025000 STOP DISK 20,2X31,X1,5STOP DISK 20,2X31,X1,5
-
1583033044000 NEEDLE BEAR. 22X26X12NEEDLE BEAR. 22X26X12
-
1683033011000 IDLER GEAR 1.G. 35TIDLER GEAR 1.G. 35T
-
1749032012000 STOP DISK 17,2X30X1,5STOP DISK 17,2X30X1,5
-
1854633014100 SPACER BUSHING 12MMSPACER BUSHING 12MM
-
2050033029013 SPROCKET 13-TSPROCKET 13-T
-
2050033029014 SPROCKET 14-TSPROCKET 14-T
-
2050033029015 SPROCKET 15-TSPROCKET 15-T
-
2259033034044 SCREW+SPRING WASHERSCREW+SPRING WASHER
-
250770020220 O-RING 25,12X1,78 NBR70O-RING 25,12X1,78 NBR70
-
300625062036 BALL BEARING 6203 RSH C3BALL BEARING 6203 RSH C3
-
3149030023000 CYL.ROLL BEARING NJ205CYL.ROLL BEARING NJ205
-
320760324571 SHAFT SEAL RING 32X45X7 BSLNBRSHAFT SEAL RING 32X45X7 BSLNBR
