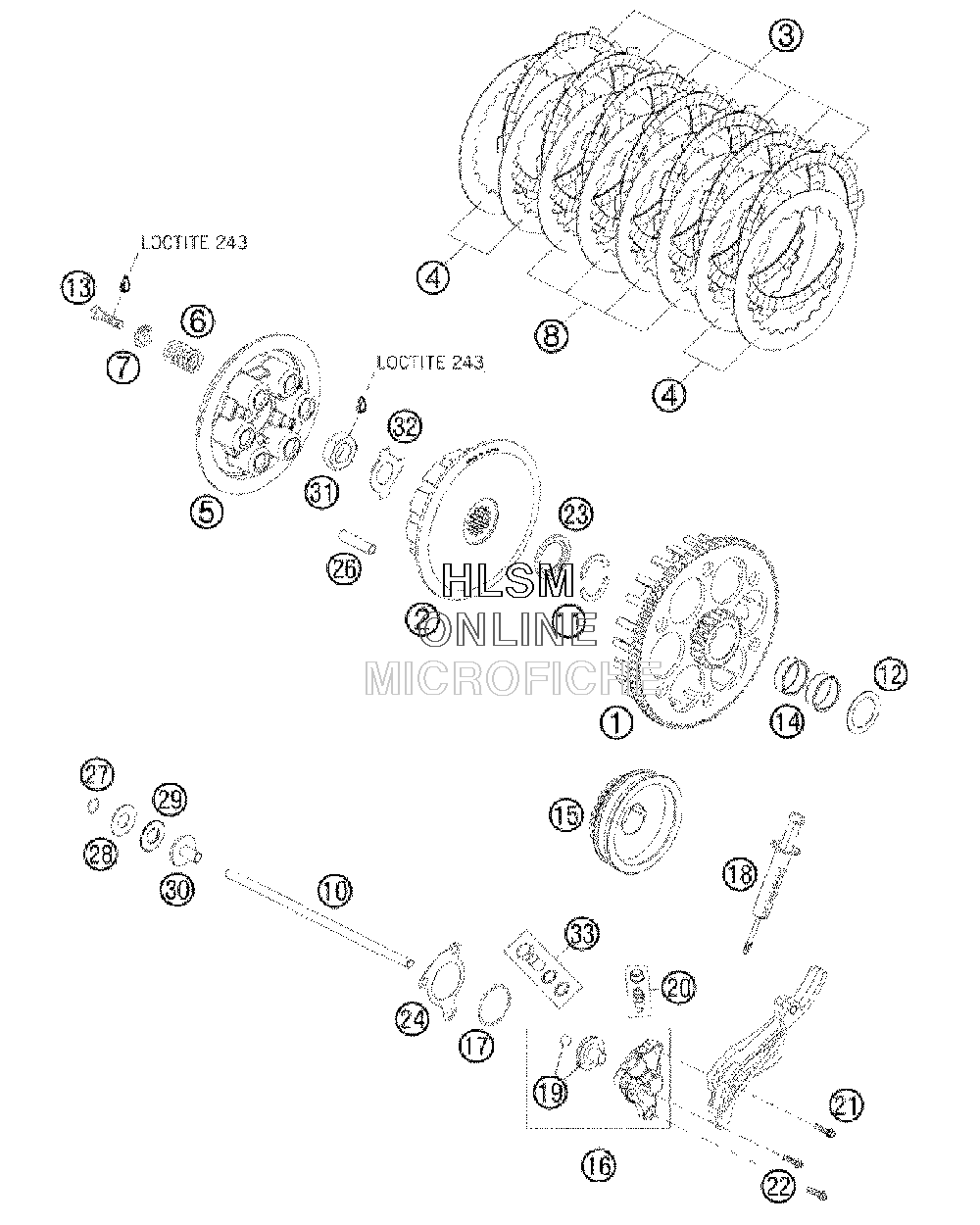

CLUTCH для Ktm 525 XC - 2009 года выпуска
-
№АртикулНазвание
-
183032000078 CLUTCH CAGE 75 TCLUTCH CAGE 75 T
-
259032002500 INNER HUB - RACINGINNER HUB - RACING
-
359032011100 LINING DISC 2MMLINING DISC 2MM
-
459032010100 INTERMEDIATE DISC 1MMINTERMEDIATE DISC 1MM
-
559032003500 PRESSURE CAP WITH OIL BOREPRESSURE CAP WITH OIL BORE
-
659032005000 CLUTCH SPRING 2,5X43MMCLUTCH SPRING 2,5X43MM
-
759032006050 SPRING RETAINER 6,2X12X18X5,2SPRING RETAINER 6,2X12X18X5,2
-
859032010200 INTERMEDIATE DISC 1,4MMINTERMEDIATE DISC 1,4MM
-
1083032054000 PUSH ROD L=201MMPUSH ROD L=201MM
-
1159032007000 HALF-WASHERHALF-WASHER
-
1259032017000 SUPPORTWASHER 25X35X1SUPPORTWASHER 25X35X1
-
130984060252 AH SCREW DIN6912 M6X25AH SCREW DIN6912 M6X25
-
140405252910 NEEDLE BEAR K 25X29X10NEEDLE BEAR K 25X29X10
-
1583032022031 PRIMARY GEAR 31T CPL.PRIMARY GEAR 31T CPL.
-
1659032061044 OUTPUT CYLINDER CPL. 27MMOUTPUT CYLINDER CPL. 27MM
-
170770300015 O-RING 30,00X1,50 NBR 70O-RING 30,00X1,50 NBR 70
-
1850329050000 VENT INJEKTION HYDR. CLUTCHVENT INJEKTION HYDR. CLUTCH
-
1959032066000 PISTON + O-RING + BALL 27MMPISTON + O-RING + BALL 27MM
-
2054732064000 BLEEDER SCREW WITH CAPBLEEDER SCREW WITH CAP
-
210025060306 HH COLLAR SCREW M6X30HH COLLAR SCREW M6X30
-
220025060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
2359032009000 STEPPED WASHERSTEPPED WASHER
-
2459032065000 GASKET FOR SLAVE CYLINDERGASKET FOR SLAVE CYLINDER
-
2659032004300 DRIVING SLEEVE D=8, L=33DRIVING SLEEVE D=8, L=33
-
270993012000 CIRCLIP DIN7993-RW12CIRCLIP DIN7993-RW12
-
2854637098200 AXIAL WASHER AS1226 12X26X1AXIAL WASHER AS1226 12X26X1
-
2954637097200 AXIAL NEEDLE BEARING AXK 1226AXIAL NEEDLE BEARING AXK 1226
-
3050332054051 PRESSURE PIECE 125-380PRESSURE PIECE 125-380
-
310936181505 HEXAGON NUT DIN0936-M18X1,5 R.HEXAGON NUT DIN0936-M18X1,5 R.
-
3256532018000 LOCK WASHERLOCK WASHER
-
3359032062000 HOLLOW SCREW + COPPER GASKETHOLLOW SCREW + COPPER GASKET
