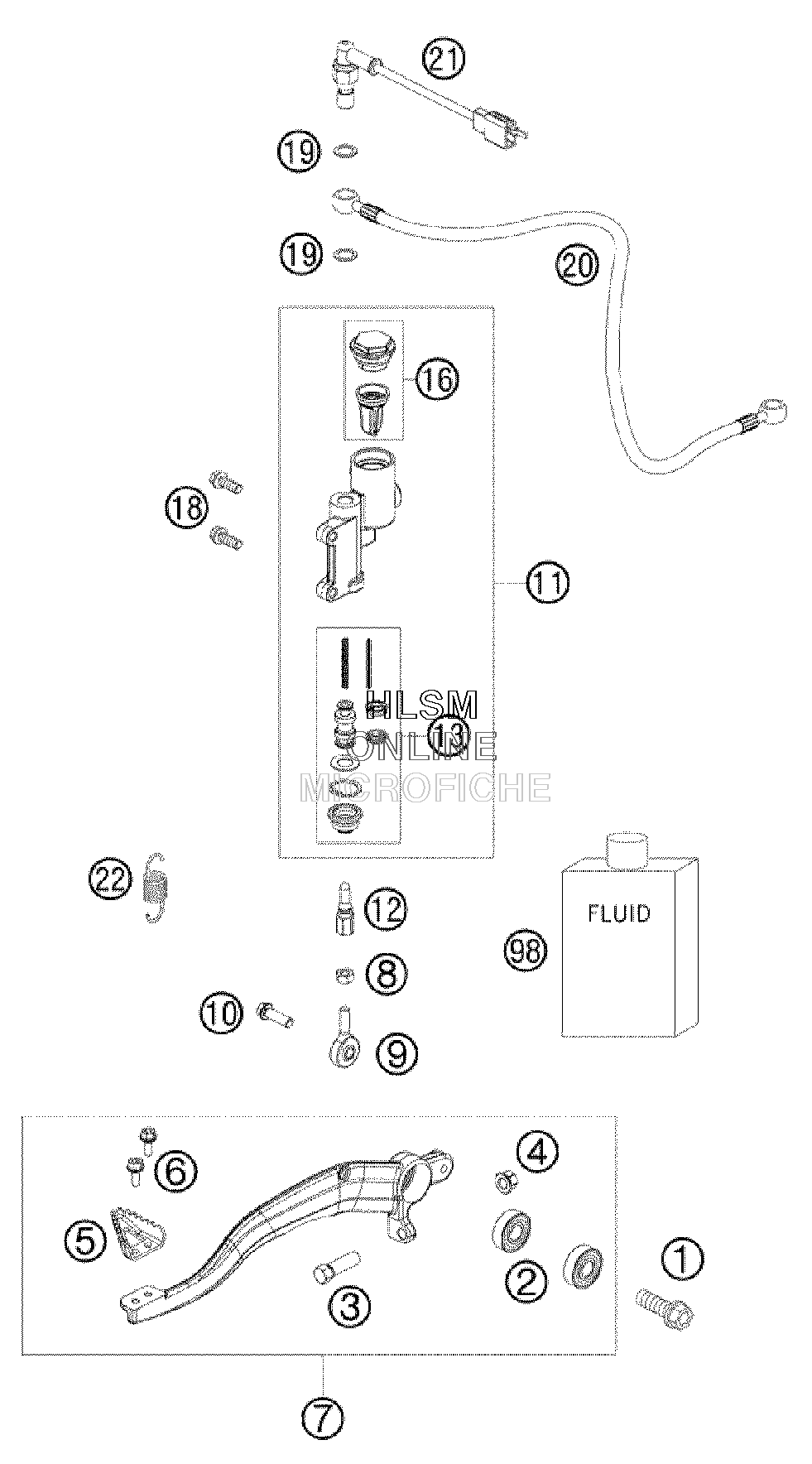

BRAKE - REAR CONTROL для Ktm 525 XC - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    0035100309S AH-COLLAR SCREW M10X30 ISA45
    AH-COLLAR SCREW M10X30 ISA45
  • 2
    0625060002 BALL BEARING SKF 6000-2RS1
    BALL BEARING SKF 6000-2RS1
  • 3
    59001037000 SPECIAL SCREW M8X26 WS=10
    SPECIAL SCREW M8X26 WS=10
  • 4
    46030045000 COLLAR NUT M8 WS=10
    COLLAR NUT M8 WS=10
  • 5
    60013051000 STEP PLATE FOOT BRAKE LEVER
    STEP PLATE FOOT BRAKE LEVER
  • 6
    0025050126 HH COLLAR SCREW M5X12
    HH COLLAR SCREW M5X12
  • 7
    83013050044 FOOT BRAKE LEVER CPL. ATV
    FOOT BRAKE LEVER CPL. ATV
  • 8
    0985060003 SELF LOCK. NUT DIN0985-M 6
    SELF LOCK. NUT DIN0985-M 6
  • 9
    54813055000 SWIVEL HEAD KA6
    SWIVEL HEAD KA6
  • 10
    0025060206 HH COLLAR SCREW M6X20
    HH COLLAR SCREW M6X20
  • 11
    83013060000 FOOT BRAKE CYL. MAGURA 13MM
    FOOT BRAKE CYL. MAGURA 13MM
  • 12
    83013056000 PUSH ROD
    PUSH ROD
  • 13
    83013061000 REPAIR KIT PISTON MAGURA 13 MM
    REPAIR KIT PISTON MAGURA 13 MM
  • 16
    83013062000 COVER, MEMBRANE MAGURA
    COVER, MEMBRANE MAGURA
  • 18
    0025060166 HH COLLAR SCREW M6X16
    HH COLLAR SCREW M6X16
  • 19
    59413013050 COPPER GASKET
    COPPER GASKET
  • 20
    83013070100 BRAKE HOSE REAR
    BRAKE HOSE REAR
  • 21
    50311051100 BRAKE LIGHT SWITCH REAR
    BRAKE LIGHT SWITCH REAR
  • 22
    83003062000 RETURN SPRING F. BRAKE LEVER
    RETURN SPRING F. BRAKE LEVER
  • 98
    00062030000 BRAKE FLUID DOT5.1 0,25L
    BRAKE FLUID DOT5.1 0,25L
