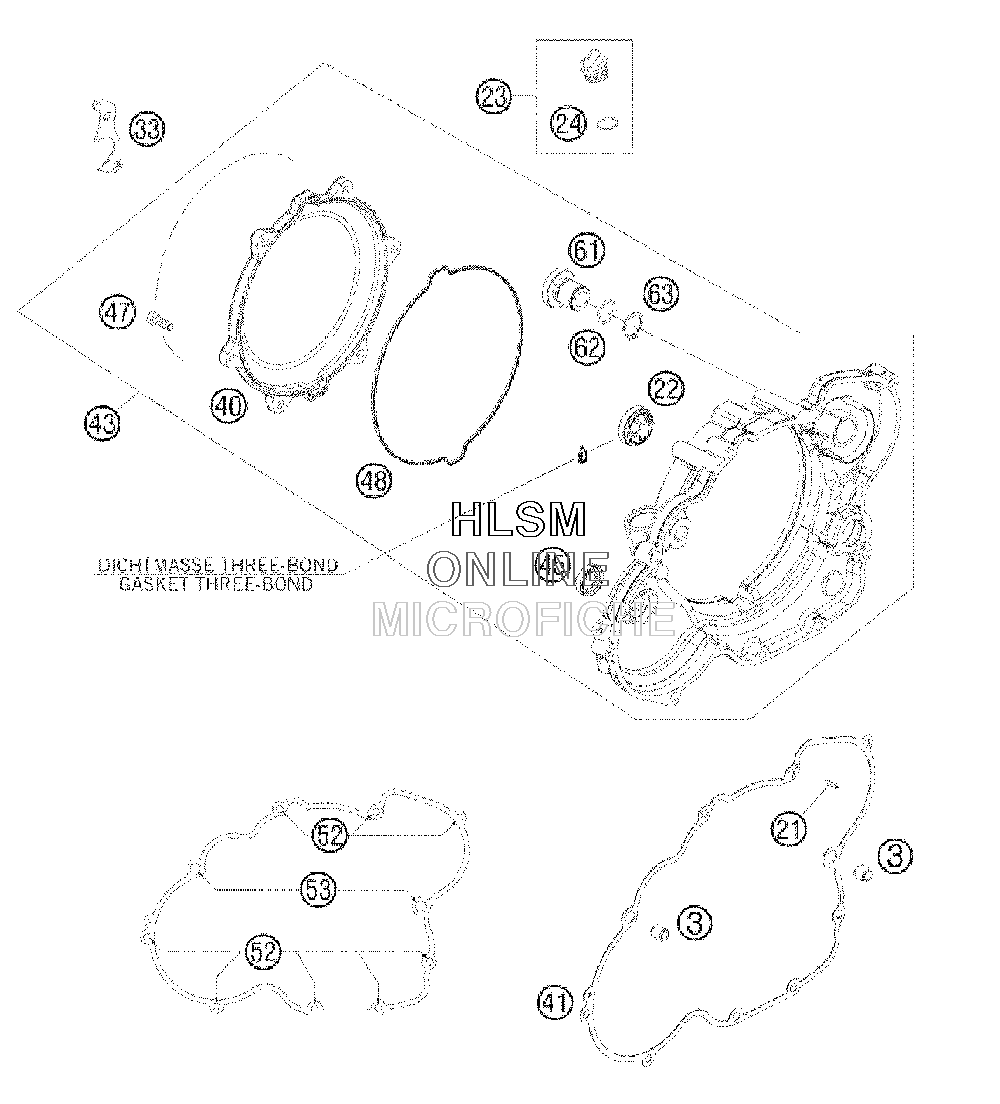

CLUTCH COVER для Ktm 525 XC - 2009 года выпуска
-
№АртикулНазвание
-
349030090000 DOWEL 9,8 X 7 X 10DOWEL 9,8 X 7 X 10
-
210402025980 NEEDLE ROLLER DIN5402 2,5X9,8NEEDLE ROLLER DIN5402 2,5X9,8
-
2259030019000 OIL LEVEL GLASS G 1777 YOIL LEVEL GLASS G 1777 Y
-
2358030120000 OIL FILLER CAP M24X3 WITH O-ROIL FILLER CAP M24X3 WITH O-R
-
240770191015 O-RING 19,00X3,00 NBRO-RING 19,00X3,00 NBR
-
3359030001090 RET.BRACKET F.BRAKE LEVER HUBRET.BRACKET F.BRAKE LEVER HUB
-
405903002600025 OUTER CLUTCH COVEROUTER CLUTCH COVER
-
4159030025200 CLUTCH COVER GASKETCLUTCH COVER GASKET
-
438303000103325 CLUTCH COVER CPL. GREYCLUTCH COVER CPL. GREY
-
450760142460 SHAFT SEAL RING 14X24X6 BSHAFT SEAL RING 14X24X6 B
-
470984060163 AH SCREW DIN6912-M 6X16AH SCREW DIN6912-M 6X16
-
4859030027000 GASKET F. OUTER CLUTCH COV.GASKET F. OUTER CLUTCH COV.
-
520025060306 HH COLLAR SCREW M6X30HH COLLAR SCREW M6X30
-
530025060356 HH COLLAR SCREW M6X35HH COLLAR SCREW M6X35
-
6183033056000 KICK-STARTER PLUGKICK-STARTER PLUG
-
620770160021 O-RING 16,00X2,00 VITONO-RING 16,00X2,00 VITON
-
630471190120 CIRCLIP DIN0471-19X1,2CIRCLIP DIN0471-19X1,2
