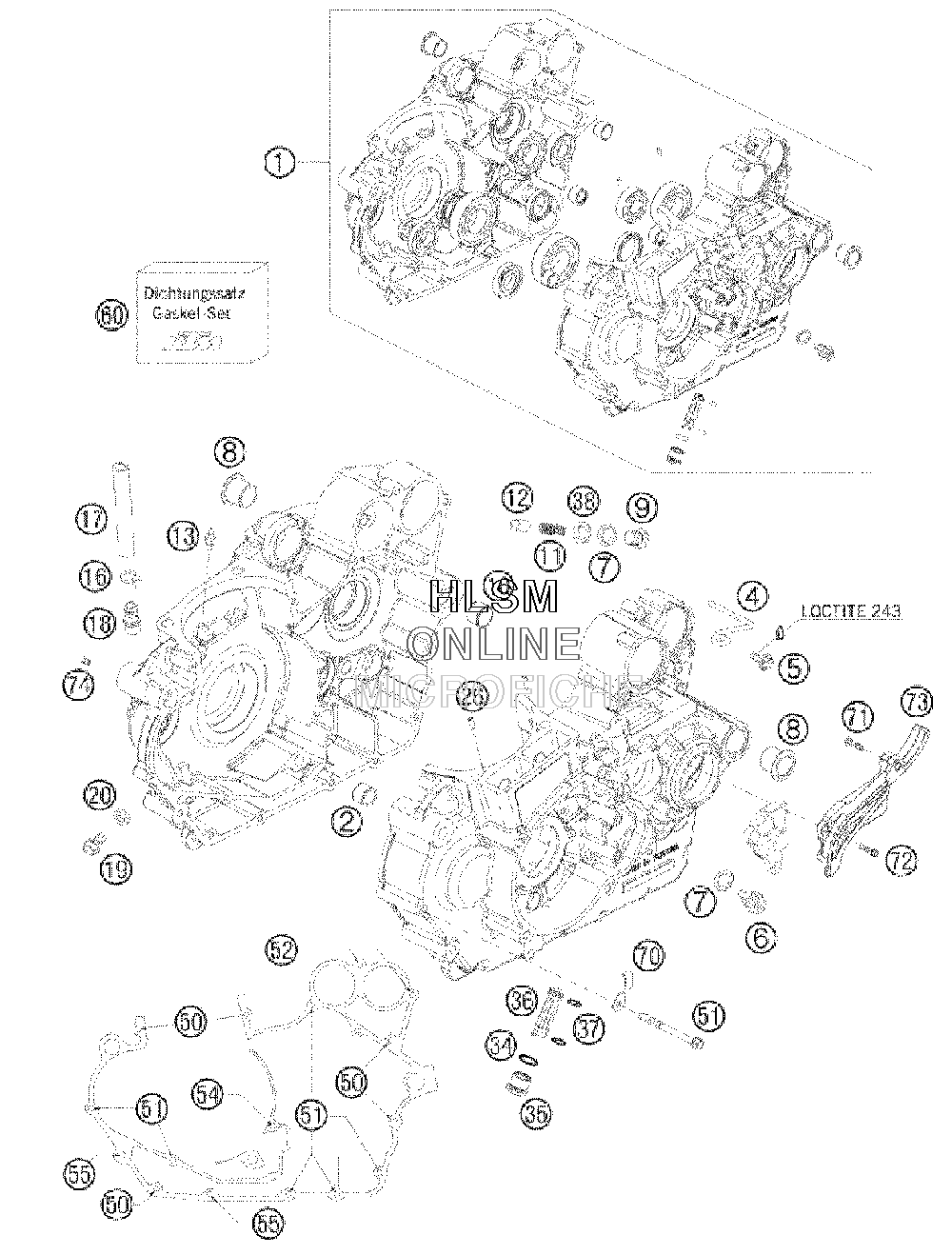

ENGINE CASE для Ktm 525 XC - 2009 года выпуска
-
№АртикулНазвание
-
183130000033 ENGINE CASE WITH BEARING CPL.ENGINE CASE WITH BEARING CPL.
-
251030026100 DOWEL 17 X 13 X 12DOWEL 17 X 13 X 12
-
459030090000 HANGER FOR VENT HOSEHANGER FOR VENT HOSE
-
50024060156 HH COLLAR SCREW M6X15HH COLLAR SCREW M6X15
-
658030021000 OILDRAIN PLUG W.MAG. M 12X1,5OILDRAIN PLUG W.MAG. M 12X1,5
-
758038022000 CU-SEAL RING DIN7603-12X18X1,5CU-SEAL RING DIN7603-12X18X1,5
-
875030010000 CASE BUSHCASE BUSH
-
90908120153 PLUG DIN0908-M12X1,5PLUG DIN0908-M12X1,5
-
1059030024000 DOWEL 17 X 19 X 12DOWEL 17 X 19 X 12
-
1158038023300 PRESSURE SPRING L=25MM D=1MMPRESSURE SPRING L=25MM D=1MM
-
1258038028000 VALVE PISTON D=10MMVALVE PISTON D=10MM
-
1360030064070 OIL JET 70 M6X0,75 WS8OIL JET 70 M6X0,75 WS8
-
1658431082100 YDNAC-CLAMP 10173 (16MM)YDNAC-CLAMP 10173 (16MM)
-
1783031050000 ENGINE BREATHER TUBEENGINE BREATHER TUBE
-
1859030022100 BLEEDER FLANGE M12X1,5BLEEDER FLANGE M12X1,5
-
190025080126 HH COLLAR SCREW M8X12HH COLLAR SCREW M8X12
-
2058030081000 CU-SEAL RING 8 X 14 X 3CU-SEAL RING 8 X 14 X 3
-
260402040980 NEEDLE ROL.DIN5402 NRB 4X9,8NEEDLE ROL.DIN5402 NRB 4X9,8
-
340770120020 O-RING 12,00X2,00 NBR 70O-RING 12,00X2,00 NBR 70
-
3559038017000 PLUG M20X1,5 WS=13PLUG M20X1,5 WS=13
-
3659038015100 OIL SCREEN 11,8X44,5MMOIL SCREEN 11,8X44,5MM
-
370770090015 O-RING 9X1,5 NBRO-RING 9X1,5 NBR
-
380603121830 SEAL RING DIN7603 12X18X3SEAL RING DIN7603 12X18X3
-
500025060456 HH COLLAR SCREW M6X45HH COLLAR SCREW M6X45
-
510025060606 HH COLLAR SCREW M6X60HH COLLAR SCREW M6X60
-
520025060306 HH COLLAR SCREW M6X30HH COLLAR SCREW M6X30
-
540025060756 HH COLLAR SCREW M6X75HH COLLAR SCREW M6X75
-
550015060653 HH COLLAR SCREW M 6X65HH COLLAR SCREW M 6X65
-
6083030099000 GASKET SET CPL. ATVGASKET SET CPL. ATV
-
7083034046000 SUPPORTSUPPORT
-
710025080306 HH COLLAR SCREW M8X30HH COLLAR SCREW M8X30
-
720025060306 HH COLLAR SCREW M6X30HH COLLAR SCREW M6X30
-
7354803096000 SPROCKET COVER 250 SXSPROCKET COVER 250 SX
-
7459030058000 JET 100 BING M4JET 100 BING M4
