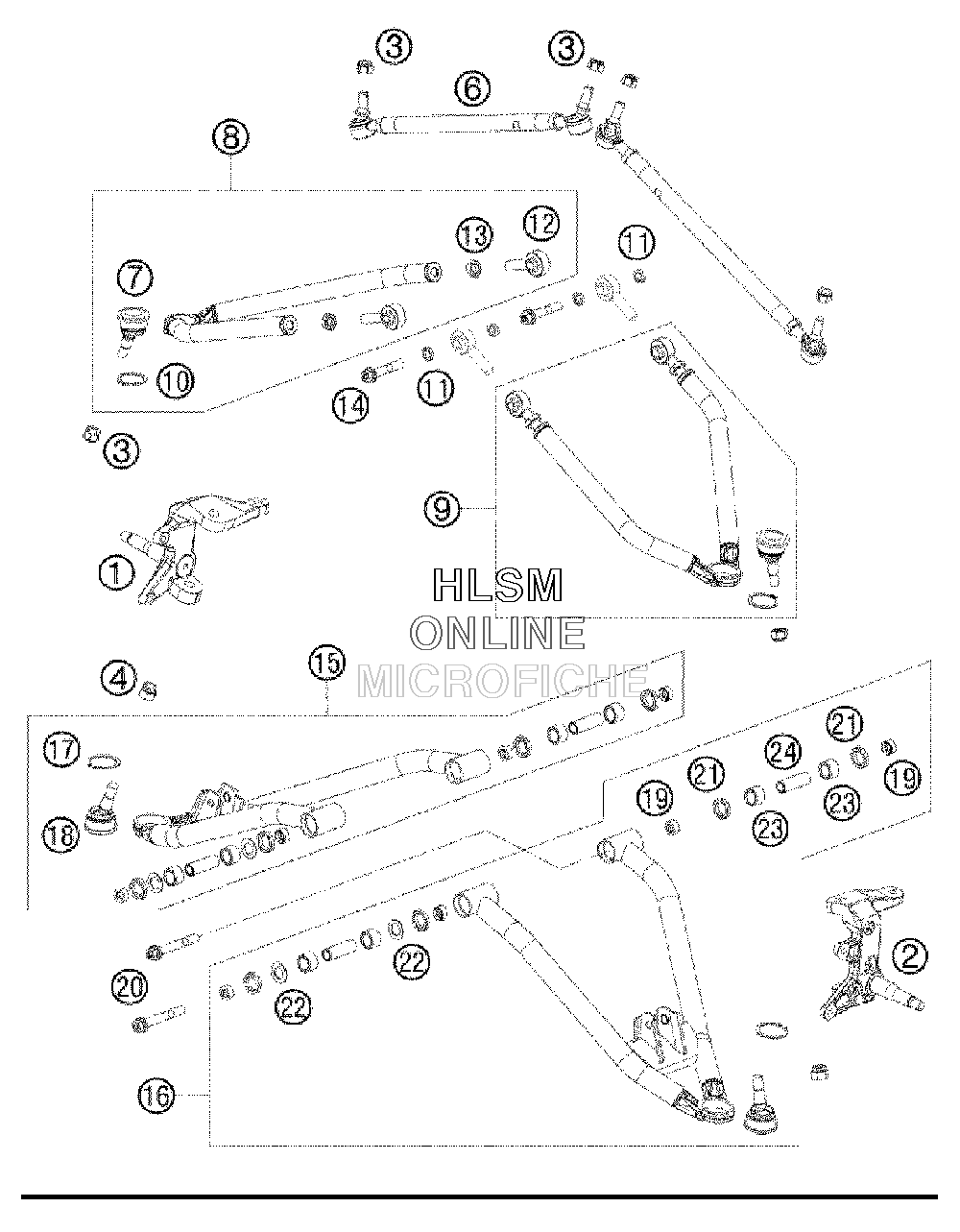

FRONT A-ARMS для Ktm 525 XC - 2009 года выпуска
-
№АртикулНазвание
-
183061006000 WHEEL CARRIER R/S CPL.WHEEL CARRIER R/S CPL.
-
283061005000 WHEEL CARRIER L/S CPL.WHEEL CARRIER L/S CPL.
-
30982101253 SELF LOCK.NUT M10X1,25SELF LOCK.NUT M10X1,25
-
483061005025 SELF LOCK.NUT M12X1,5SELF LOCK.NUT M12X1,5
-
683061010044 TRACK RODS CPL.TRACK RODS CPL.
-
783061001050 BALL HEAD M10X1,25BALL HEAD M10X1,25
-
883061003044 A-ARM TOP R/S XC CPL.A-ARM TOP R/S XC CPL.
-
983061001044 A-ARM TOP L/S XC CPL.A-ARM TOP L/S XC CPL.
-
100471320150 CIRCLIP DIN0471-32X1,5CIRCLIP DIN0471-32X1,5
-
1183061001025 SPACER BUSHING F. BALLJOINTSPACER BUSHING F. BALLJOINT
-
1283061001051 SWIVEL HEADSWIVEL HEAD
-
130936120123 HEXAGON NUT DIN 936 M12X1,25HEXAGON NUT DIN 936 M12X1,25
-
140023100523 COLLAR SCREW M10X52COLLAR SCREW M10X52
-
1583061004044 A-ARM DOWN R/S XC CPL.A-ARM DOWN R/S XC CPL.
-
1683061002044 A-ARM DOWN L/S XC CPL.A-ARM DOWN L/S XC CPL.
-
170471350150 CIRCLIP DIN0741-35X1,5CIRCLIP DIN0741-35X1,5
-
1883061002050 BALL HEAD M12X1,5BALL HEAD M12X1,5
-
1983061034000 BUCKET F. SHAFT SEAL RINGBUCKET F. SHAFT SEAL RING
-
200023100703 COLLAR SCREW M10X70COLLAR SCREW M10X70
-
210760172660 SHAFT SEAL RING 17X26X6SHAFT SEAL RING 17X26X6
-
2283061015000 STOP DISK 15,2X25,7X1STOP DISK 15,2X25,7X1
-
2383061079000 NEEDLE BEARING HMK 1515NEEDLE BEARING HMK 1515
-
2483061032000 BUSHING SLEEVE F. A/ARMBUSHING SLEEVE F. A/ARM
