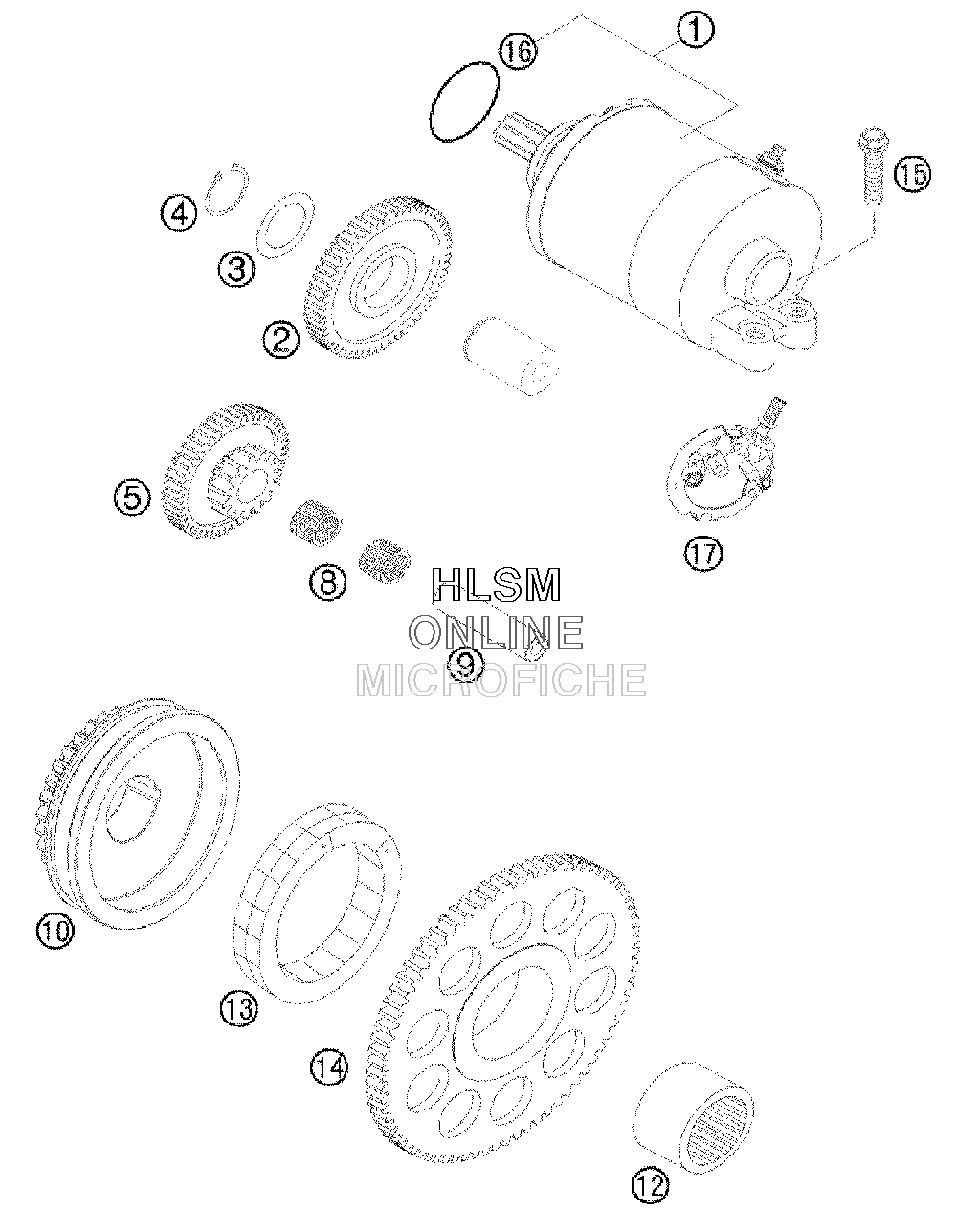

ELECTRIC STARTER для Ktm 525 XC - 2009 года выпуска`
-
№АртикулНазвание
-
159040001000 E-STARTER ENGINE KPL. 0,45 KWE-STARTER ENGINE KPL. 0,45 KW
-
259040022258 GEAR WHEELGEAR WHEEL
-
354633090000 STOP DISK 17,2X25X1STOP DISK 17,2X25X1
-
40471170010 CIRCLIP DIN0471-17X1CIRCLIP DIN0471-17X1
-
559040016000 TORQUE LIMITERTORQUE LIMITER
-
80405101310 NEEDLE BEARING K 10X13X10NEEDLE BEARING K 10X13X10
-
959040029000 BEARING BOLTBEARING BOLT
-
1083032022031 PRIMARY GEAR 31T CPL.PRIMARY GEAR 31T CPL.
-
120618301617 NEEDLE BEARING HK 3016 BNEEDLE BEARING HK 3016 B
-
1358440026000 FREE-WHEEL FWD 332008 BLSFREE-WHEEL FWD 332008 BLS
-
1459040020175 FREEWHEEL GEARFREEWHEEL GEAR
-
150025060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
160770250030 O-RING 25,00X3,00 NBR 70O-RING 25,00X3,00 NBR 70
-
1778040002000 BRUSH HOLDER F. STARTERBRUSH HOLDER F. STARTER
Все узлы модели:
- ACCESSORIES KIT
- AIR FILTER
- BALANCER SHAFT
- BRAKE - CALIPER FRONT
- BRAKE - CALIPER REAR
- BRAKE - HAND CYLINDER
- BRAKE - REAR CONTROL
- CARBURETOR
- CLUTCH
- CLUTCH COVER
- COOLING SYSTEM
- CRANKSHAFT - PISTON
- CYLINDER
- CYLINDER HEAD
- DECAL
- • ELECTRIC STARTER
- ENGINE CASE
- EXHAUST SYSTEM
- FENDERS - MASK
- FRAME
- FRONT A-ARMS
- HANDLEBAR - CONTROLS
- IGNITION SYSTEM
- INSTRUMENTS - LOCK SYSTEM
- LIGHTING SYSTEM
- LUBRICATIN SYSTEM
- MONOSHOCK
- SHIFTING MECHANISM
- SPECIAL TOOLS - ENGINE
- SPECIAL TOOLS - FRAME
- SUSPENSION - SHOCK ABSORBER ABSORBER FRONT DISASSEMBLED
- SUSPENSION - SHOCK ABSORBER REAR DISASSEMBLED
- SUSPENSION - SWING ARM
- TANK - SEAT - COVER
- TIMING DRIVE
- TRANSMISSION - COUNTERSHAFT
- TRANSMISSION - MAIN SHAFT
- VALVE DRIVE
- WHEEL - FRONT
- WHEEL - REAR
- WIRING HARNESS
