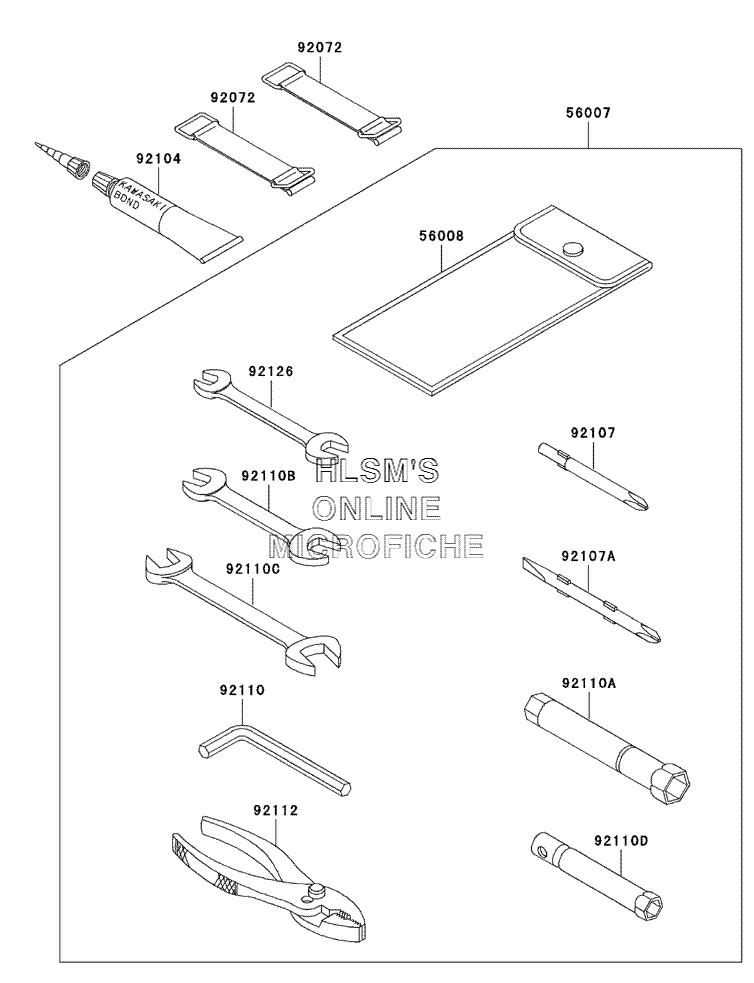

OWNER TOOLS для Kawasaki STX-15F (JT1500-A1) - 2004 года выпуска`
-
№АртикулНазвание
-
5600756007-3716 TOOL, KITTOOL, KIT
-
5600856008-3704 BAG, TOOLBAG, TOOL
-
9207292072-3853 BAND, L=50BAND, L=50
-
9210492104-002 GASKET, LIQUID, TUBE, 100G (SILVER) (OPT)GASKET, LIQUID, TUBE, 100G (SILVER) (OPT)
-
9210792107-005 TOOL, DRIVER, #3 PHILLIPSTOOL, DRIVER, #3 PHILLIPS
-
92107A92107-1051 TOOL, DRIVER, #2 PHILLIPS AND SLOTTOOL, DRIVER, #2 PHILLIPS AND SLOT
-
9211092110-1015 TOOL, WRENCH, ALLEN, 5MMTOOL, WRENCH, ALLEN, 5MM
-
92110A92110-1145 TOOL, WRENCH, BOX, 16MMTOOL, WRENCH, BOX, 16MM
-
92110B92110-1152 TOOL, WRENCH, OPEN END, 10X12TOOL, WRENCH, OPEN END, 10X12
-
92110C92110-1153 TOOL, WRENCH, OPEN END, 14X17TOOL, WRENCH, OPEN END, 14X17
-
92110D92110-1156 TOOL, WRENCH, BOX, 10MMTOOL, WRENCH, BOX, 10MM
-
9211292112-1001 TOOL, PLIERSTOOL, PLIERS
-
9212692126-004 TOOL, WRENCH, OPEN END, 8X10TOOL, WRENCH, OPEN END, 8X10
