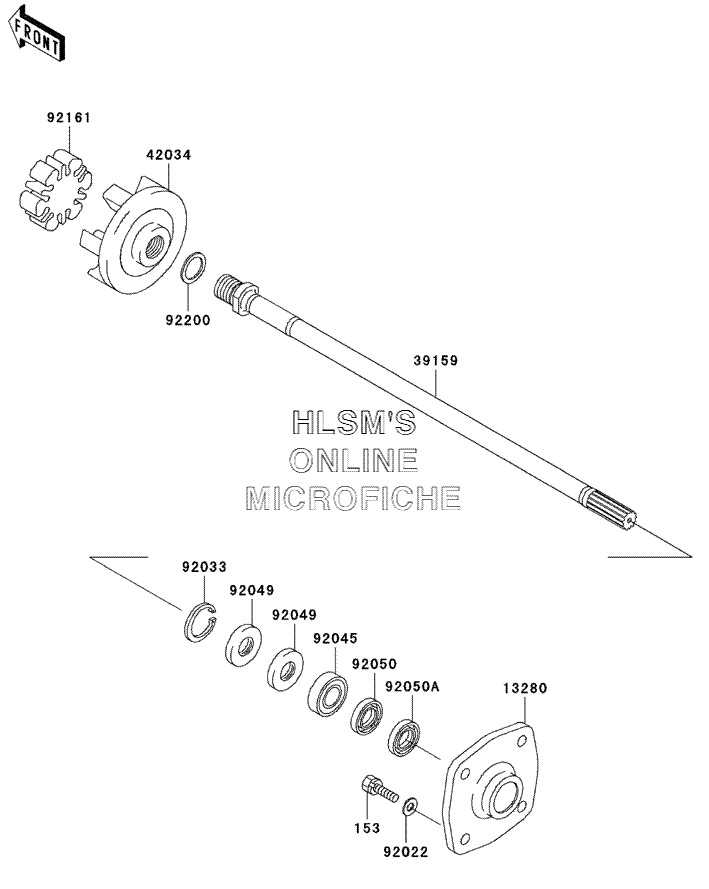

DRIVE SHAFT для Kawasaki STX-15F (JT1500-A1) - 2004 года выпуска
-
№АртикулНазвание
-
153153R0830 BOLT, WS, SMALLBOLT, WS, SMALL
-
1328013280-3730 HOLDERHOLDER
-
3915939159-3739 SHAFT, DRIVESHAFT, DRIVE
-
4203442034-3711 COUPLINGCOUPLING
-
9202292022-1964 WASHER, 8.2X18X1.5WASHER, 8.2X18X1.5
-
9203392033-3713 RING, SNAP, 42MMRING, SNAP, 42MM
-
9204592045-3705 BEARING, BALL, 60042RDBEARING, BALL, 60042RD
-
9204992049-3707 SEAL, OIL, S620426SEAL, OIL, S620426
-
9205092050-502 SEAL, OIL, SCY20368SEAL, OIL, SCY20368
-
92050A92050-503 SEAL, OIL, SC20367SEAL, OIL, SC20367
-
9216192161-3711 DAMPERDAMPER
-
9220092200-3739 WASHER, 24X32X2.0WASHER, 24X32X2.0
