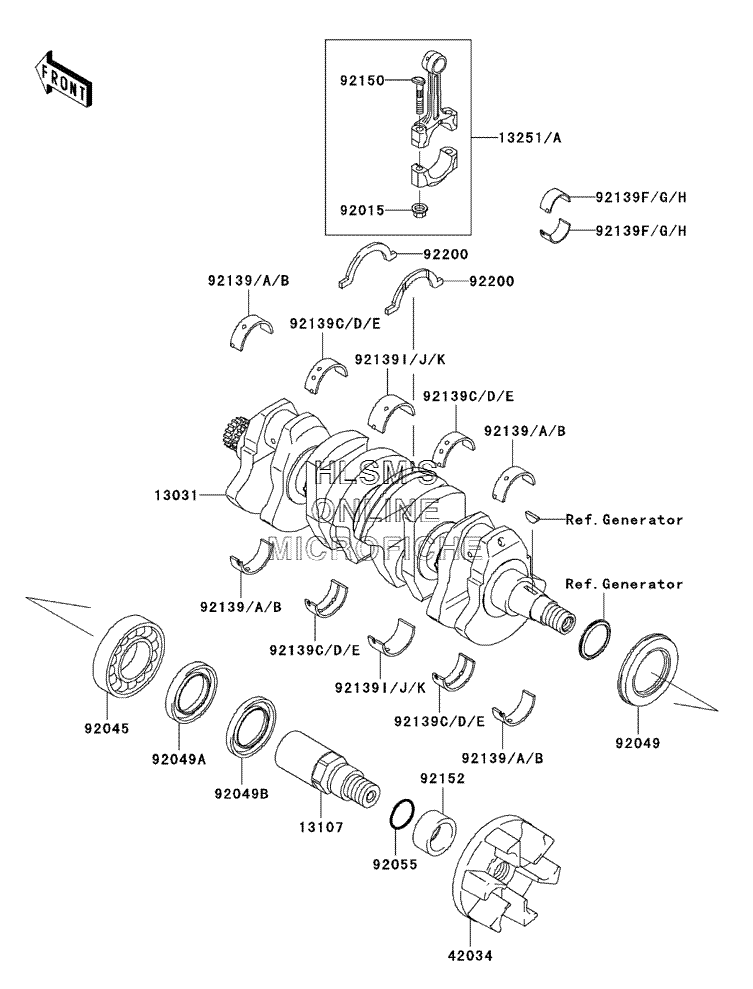

CRANKSHAFT для Kawasaki STX-15F (JT1500-A1) - 2004 года выпуска

  • №
    Артикул
    Название
  • 13031
    13031-3741 CRANKSHAFT, COMP
    CRANKSHAFT, COMP
  • 13107
    13107-3785 SHAFT
    SHAFT
  • 13251
    13251-3702-II ROD, ASSY., CONNECTING, I
    ROD, ASSY., CONNECTING, I
  • 13251A
    13251-3702-JJ ROD, ASSY., CONNECTING, J
    ROD, ASSY., CONNECTING, J
  • 42034
    42034-3711 COUPLING
    COUPLING
  • 92015
    92015-1559 NUT, CONNECTING ROD
    NUT, CONNECTING ROD
  • 92045
    92045-3739 BEARING, BALL, 6208ZZ AS2S
    BEARING, BALL, 6208ZZ AS2S
  • 92049
    92049-3736 SEAL, OIL, SD347626LHS
    SEAL, OIL, SD347626LHS
  • 92049A
    92049-3737 SEAL, OIL, FPJ740628.5ZS
    SEAL, OIL, FPJ740628.5ZS
  • 92049B
    92049-3738 SEAL, OIL, S40626NS
    SEAL, OIL, S40626NS
  • 92055
    92055-091 O-RING
    O-RING
  • 92139
    92139-3702 BUSHING, CRANKSHAFT, #1 AND #5 (BLUE)
    BUSHING, CRANKSHAFT, #1 AND #5 (BLUE)
  • 92139A
    92139-3703 BUSHING, CRANKSHAFT, #1 AND #5 (BLACK)
    BUSHING, CRANKSHAFT, #1 AND #5 (BLACK)
  • 92139B
    92139-3704 BUSHING, CRANKSHAFT, #1 AND #5 (BROWN)
    BUSHING, CRANKSHAFT, #1 AND #5 (BROWN)
  • 92139C
    92139-3705 BUSHING, CRANKSHAFT, #2 AND #4 (BLUE)
    BUSHING, CRANKSHAFT, #2 AND #4 (BLUE)
  • 92139D
    92139-3706 BUSHING, CRANKSHAFT, #2 AND #4 (BLACK)
    BUSHING, CRANKSHAFT, #2 AND #4 (BLACK)
  • 92139E
    92139-3707 BUSHING, CRANKSHAFT, #2 AND #4 (BROWN)
    BUSHING, CRANKSHAFT, #2 AND #4 (BROWN)
  • 92139F
    92139-3708 BUSHING, CONNECTING ROD (BLUE)
    BUSHING, CONNECTING ROD (BLUE)
  • 92139G
    92139-3709 BUSHING, CONNECTING ROD (BLACK)
    BUSHING, CONNECTING ROD (BLACK)
  • 92139H
    92139-3710 BUSHING, CONNECTING ROD (BROWN)
    BUSHING, CONNECTING ROD (BROWN)
  • 92139I
    92139-3711 BUSHING, CRANKSHAFT, #3 (BLUE)
    BUSHING, CRANKSHAFT, #3 (BLUE)
  • 92139J
    92139-3712 BUSHING, CRANKSHAFT, #3 (BLACK)
    BUSHING, CRANKSHAFT, #3 (BLACK)
  • 92139K
    92139-3713 BUSHING, CRANKSHAFT, #3 (BROWN)
    BUSHING, CRANKSHAFT, #3 (BROWN)
  • 92150
    92150-1362 BOLT, CONNECTING ROD, 9MM
    BOLT, CONNECTING ROD, 9MM
  • 92152
    92152-3733 COLLAR, OUTPUT (REAR) L=19.5
    COLLAR, OUTPUT (REAR) L=19.5
  • 92200
    92200-3789 WASHER
    WASHER
