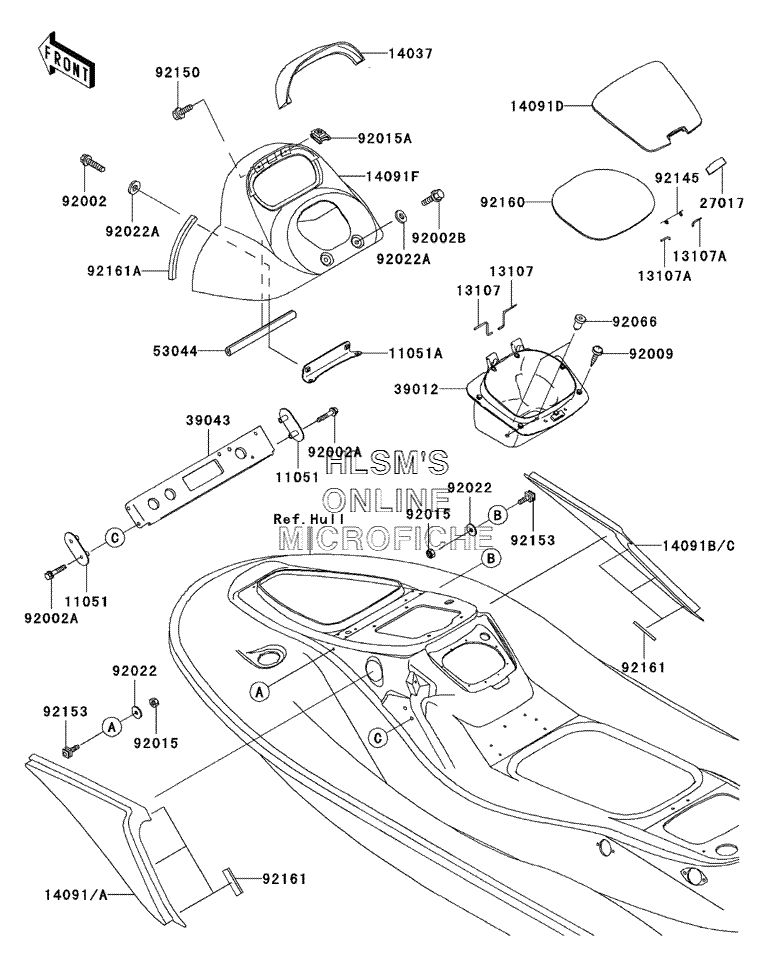

HULL MIDDLE FITTINGS для Kawasaki STX-15F (JT1500-A1) - 2004 года выпуска
-
№АртикулНазвание
-
1105111051-3782 BRACKET, CROSSMEMBERBRACKET, CROSSMEMBER
-
11051A11051-3811 BRACKETBRACKET
-
1310713107-3761 SHAFTSHAFT
-
13107A13107-3769 SHAFTSHAFT
-
1403714037-3709-378 SCREEN, METER (F.S.BLACK)SCREEN, METER (F.S.BLACK)
-
14091A14091-3708-8C COVER, SIDE (LEFT) (J.WHITE)COVER, SIDE (LEFT) (J.WHITE)
-
14091C14091-3709-8C COVER, SIDE (RIGHT) (J.WHITE)COVER, SIDE (RIGHT) (J.WHITE)
-
14091D14091-3710-8C COVER, CENTER STORAGE (J.WHITE)COVER, CENTER STORAGE (J.WHITE)
-
14091F14091-3770-378 COVER, HANDLE (F.S.BLACK)COVER, HANDLE (F.S.BLACK)
-
2701727017-3725 LOCK, CENTER STORAGELOCK, CENTER STORAGE
-
3901239012-3735 CASE, STORAGECASE, STORAGE
-
3904339043-3703 CROSSMEMBER, COMPCROSSMEMBER, COMP
-
5304453044-3755 TRIM, L=180TRIM, L=180
-
9200292002-3714 BOLT, 6X25BOLT, 6X25
-
92002A92002-3726 BOLT, 6X30BOLT, 6X30
-
92002B92002-3763 BOLT, 6X12BOLT, 6X12
-
9200992009-3716 SCREW, TAPPING, 5X20SCREW, TAPPING, 5X20
-
9201592015-3798 NUT, LOCK, 5MMNUT, LOCK, 5MM
-
92015A92015-3830 NUT, CLIP, 5MMNUT, CLIP, 5MM
-
9202292022-3041 WASHER, 5X16X1.5WASHER, 5X16X1.5
-
92022A92022-3710 WASHER, 6.5X20X1.5WASHER, 6.5X20X1.5
-
9206692066-3773 PLUGPLUG
-
9214592145-3711 SPRINGSPRING
-
9215092150-3778 BOLT, 5X16BOLT, 5X16
-
9215392153-3703 BOLT, 5MMBOLT, 5MM
-
9216092160-3933 DAMPERDAMPER
-
9216192161-3756 DAMPERDAMPER
-
92161A92161-3757 DAMPERDAMPER
