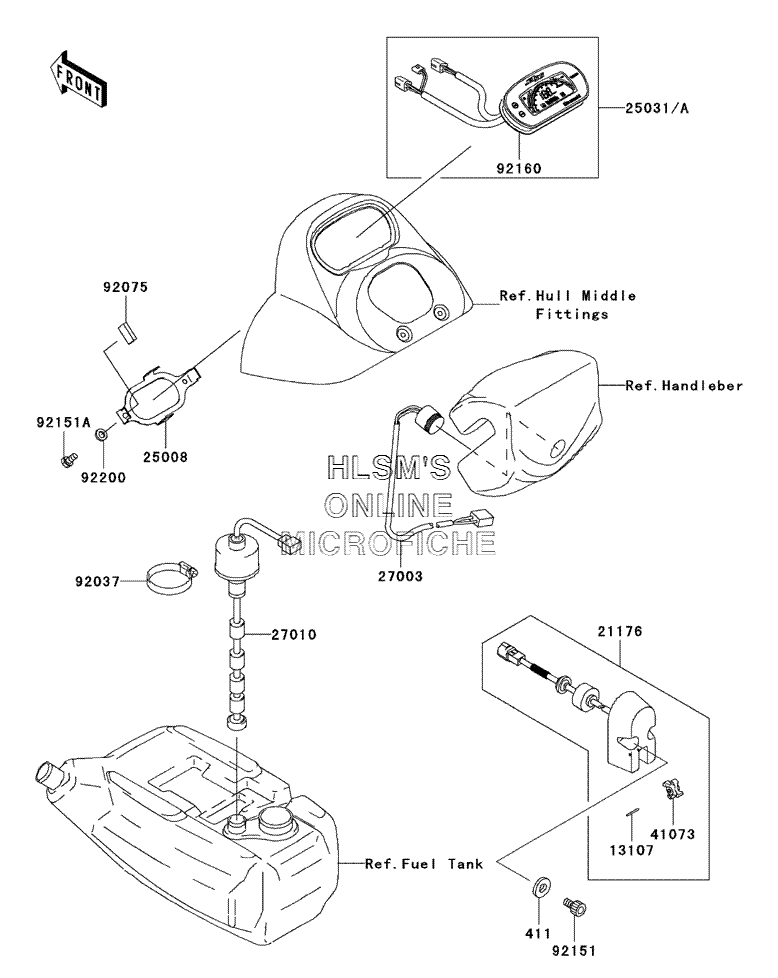

METERS для Kawasaki STX-15F (JT1500-A1) - 2004 года выпуска
-
№АртикулНазвание
-
411411S0600 WASHER, PLAIN, 6MMWASHER, PLAIN, 6MM
-
1310713107-3754 SHAFTSHAFT
-
2117621176-3760-6Z SENSOR, SPEEDOMETER (F.BLACK)SENSOR, SPEEDOMETER (F.BLACK)
-
2500825008-3709 BRACKET, METERBRACKET, METER
-
2503125031-3753 METER, ASSY., MILE AND KMMETER, ASSY., MILE AND KM
-
2700327003-3706 HORNHORN
-
2701027010-3770 SWITCH, FUEL LEVELSWITCH, FUEL LEVEL
-
4107341073-3701 WHEEL, ASSY., PADDLEWHEEL, ASSY., PADDLE
-
9203792037-3009 CLAMPCLAMP
-
9207592075-1446 DAMPERDAMPER
-
9215192151-3704 BOLT, 6X10BOLT, 6X10
-
92151A92151-3707 BOLT, 5X10BOLT, 5X10
-
9216092160-3881 DAMPER, METERDAMPER, METER
-
9220092200-3714 WASHER, 5.9X16X1.5WASHER, 5.9X16X1.5
Все узлы модели:
- BILGE SYSTEM
- CABLES
- CAMSHAFT(S)/TENSIONER
- COOLING
- CRANKCASE
- CRANKSHAFT
- CYLINDER HEAD
- CYLINDER HEAD COVER
- CYLINDER/PISTON(S)
- DECALS
- DRIVE SHAFT
- ELECTRICAL EQUIPMENT
- ENGINE COVER(S)
- ENGINE MOUNT
- FUEL INJECTION
- FUEL PUMP
- FUEL TANK
- GENERATOR
- HANDLE POLE
- HANDLEBAR
- HULL
- HULL FRONT FITTINGS
- HULL MIDDLE FITTINGS
- HULL REAR FITTINGS
- IGNITION SYSTEM
- INTAKE SILENCER
- JET PUMP
- LABELS
- MANUALS
- • METERS
- MUFFLER(S)
- OIL PAN
- OIL PUMP
- OWNER TOOLS
- PADS
- SEAT
- STARTER MOTOR
- THROTTLE
- VALVE(S)
