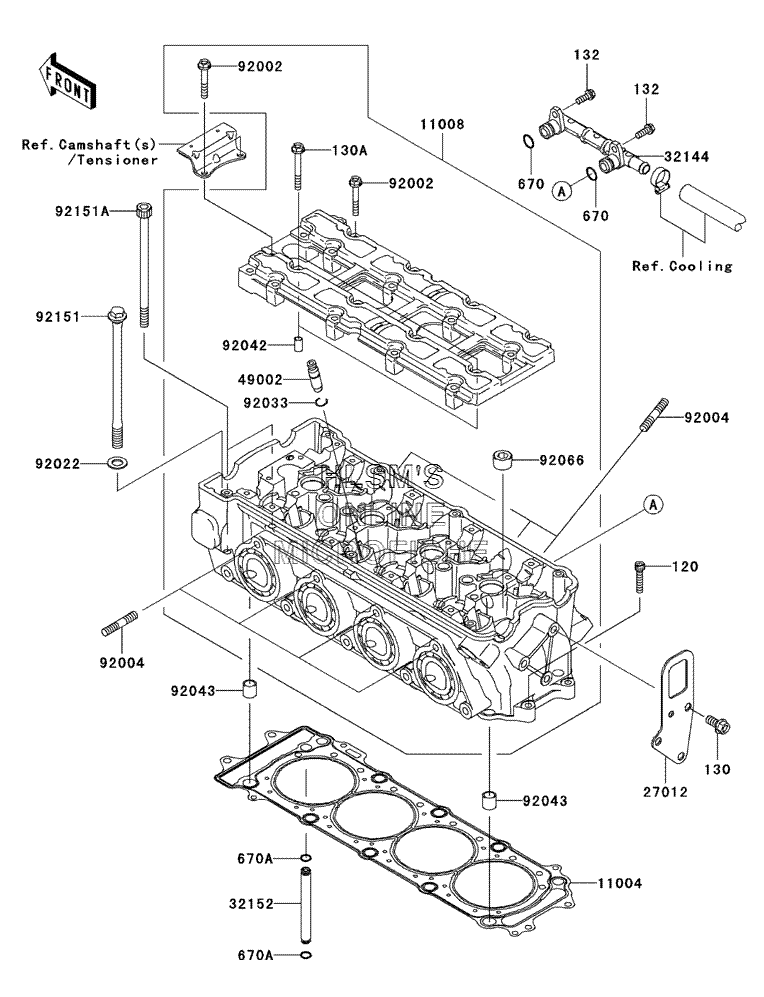

CYLINDER HEAD для Kawasaki STX-15F (JT1500-A1) - 2004 года выпуска
-
№АртикулНазвание
-
120120Z0630 BOLT, SOCKETBOLT, SOCKET
-
130130Y0818 BOLT, FLANGEDBOLT, FLANGED
-
130A130Z0650 BOLT, FLANGEDBOLT, FLANGED
-
132132Y0616 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
670670B2012 O-RING, 12MMO-RING, 12MM
-
670A670D1507 O-RING, 7MMO-RING, 7MM
-
1100411004-3721 GASKET, HEADGASKET, HEAD
-
1100811008-3705 HEAD, COMP, CYLINDERHEAD, COMP, CYLINDER
-
2701227012-3856 HOOK, ENGINE, REARHOOK, ENGINE, REAR
-
3214432144-3703 PIPE, ASSY.PIPE, ASSY.
-
3215232152-1544 PIPE, OILPIPE, OIL
-
4900249002-1140 GUIDE, VALVEGUIDE, VALVE
-
9200292002-1756 BOLT, 6X40BOLT, 6X40
-
9200492004-3743 STUD, 8X30STUD, 8X30
-
9202292022-1720 WASHER, 11.5X20.5X1.6WASHER, 11.5X20.5X1.6
-
9203392033-1247 RING, SNAPRING, SNAP
-
9204292042-007 PIN, DOWEL, 6.3X8X14PIN, DOWEL, 6.3X8X14
-
9204392043-1593 PIN, 14X14PIN, 14X14
-
9206692066-0002 PLUG, PT1/2X12.5PLUG, PT1/2X12.5
-
9215192151-1513 BOLT, 11X168BOLT, 11X168
-
92151A92151-1804 BOLT, SOCKET, 7X120BOLT, SOCKET, 7X120
