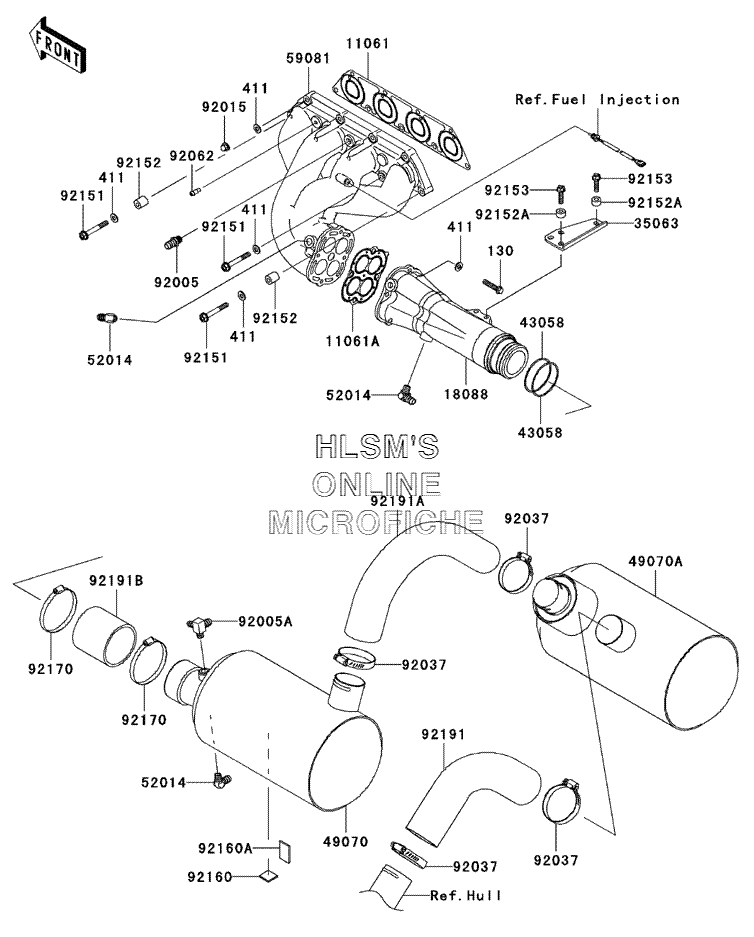

MUFFLER(S) для Kawasaki STX-15F (JT1500-A1) - 2004 года выпуска
-
№АртикулНазвание
-
130130Z0840 BOLT, FLANGEDBOLT, FLANGED
-
411411S0800 WASHER, PLAIN, 8MMWASHER, PLAIN, 8MM
-
1106111061-3713 GASKET, MANIFOLD EXHAUSTGASKET, MANIFOLD EXHAUST
-
11061A11061-3714 GASKET, PIPE EXHAUSTGASKET, PIPE EXHAUST
-
1808818088-3723 PIPE, EXHAUSTPIPE, EXHAUST
-
3506335063-3704 STAYSTAY
-
4305843058-3733 RING, GASKETRING, GASKET
-
4907049070-3744 MUFFLER, COMPMUFFLER, COMP
-
49070A49070-3745 MUFFLER, COMP, 2NDMUFFLER, COMP, 2ND
-
5201452014-3711 ELBOWELBOW
-
5908159081-3741 MANIFOLD, EXHAUSTMANIFOLD, EXHAUST
-
9200592005-3714 FITTINGFITTING
-
92005A92005-3751 FITTINGFITTING
-
9201592015-1371 NUT, CAP, 8MMNUT, CAP, 8MM
-
9203792037-3738 CLAMPCLAMP
-
9206292062-3705 NOZZLENOZZLE
-
9215192151-3730 BOLT, 8X60BOLT, 8X60
-
9215292152-3736 COLLARCOLLAR
-
92152A92152-3740 COLLAR, 8.2X17X10COLLAR, 8.2X17X10
-
9215392153-3722 BOLT, FLANGED, 8X30BOLT, FLANGED, 8X30
-
9216092160-3864 DAMPER, 25X25DAMPER, 25X25
-
92160A92160-3865 DAMPER, 40X25DAMPER, 40X25
-
9217092170-3760 CLAMPCLAMP
-
9219192191-3984 TUBE, REARTUBE, REAR
-
92191A92191-3985 TUBE, FRONTTUBE, FRONT
-
92191B92191-3986 TUBE, PIPE EX, MUFFLERTUBE, PIPE EX, MUFFLER
