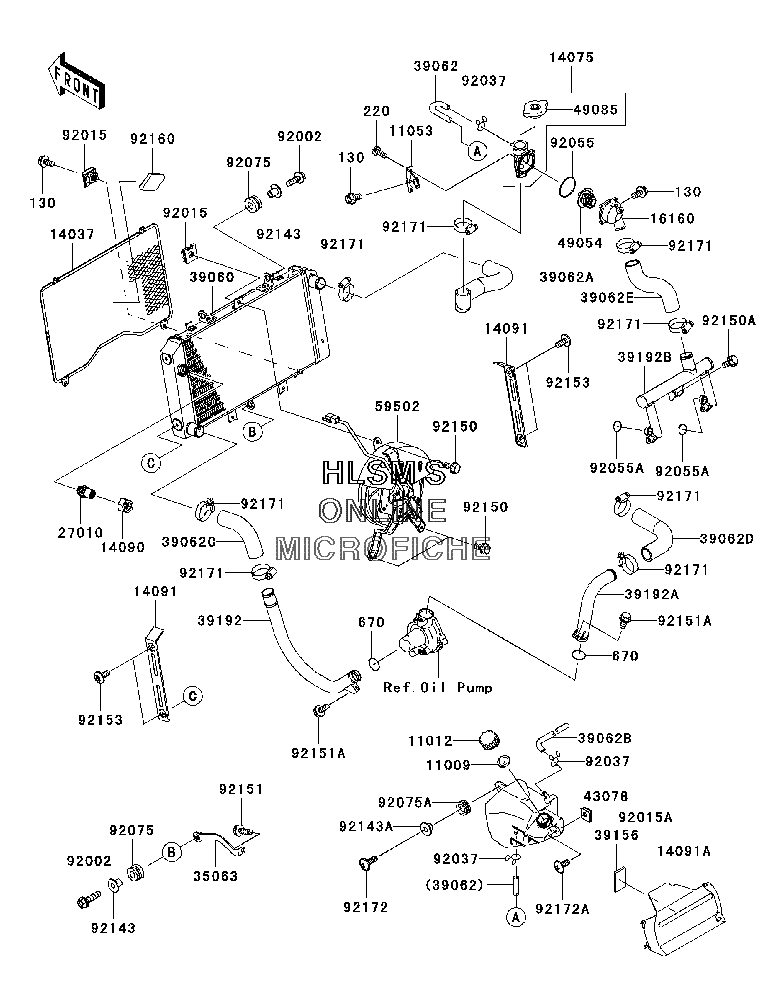

RADIATOR для Kawasaki Z750S - 2006 года выпуска
-
№АртикулНазвание
-
1100911009-1145 GASKET, RESERVOIR TANK CAPGASKET, RESERVOIR TANK CAP
-
1101211012-1084 CAPCAP
-
1105311053-1070 BRACKET, THERMOSTATBRACKET, THERMOSTAT
-
1403714037-1315 SCREENSCREEN
-
1407514075-0001 CAP, ASSYCAP, ASSY
-
1409014090-1830 COVERCOVER
-
1409114091-0097 COVER, RADIATORCOVER, RADIATOR
-
14091A14091-1532 COVERCOVER
-
1616016160-0039 BODY, LWRBODY, LWR
-
2701027010-1443 SWITCHSWITCH
-
3506335063-0065 STAY, RADIATORSTAY, RADIATOR
-
3906039060-0007 RADIATORRADIATOR
-
3906239062-0013 HOSE, COOLING, THERMO, RESERVORHOSE, COOLING, THERMO, RESERVOR
-
39062A39062-0045 HOSE, COOLING, THERMO, RADIATORHOSE, COOLING, THERMO, RADIATOR
-
39062B39062-1208 HOSE, COOLING, 5.5X10.5X550HOSE, COOLING, 5.5X10.5X550
-
39062C39062-1851 HOSE, COOLING, FITTINGHOSE, COOLING, FITTING
-
39062D39062-1914 HOSE, COOLING, PUMP, CYLINDERHOSE, COOLING, PUMP, CYLINDER
-
39062E39062-1916 HOSE, COOLING, HEAD, THERMOHOSE, COOLING, HEAD, THERMO
-
3915639156-0018 PADPAD
-
3919239192-0012 PIPE, WATERPIPE, WATER
-
39192A39192-0015 PIPE, WATERPIPE, WATER
-
39192B39192-1151 PIPE, WATERPIPE, WATER
-
4307843078-1187 RESERVOIRRESERVOIR
-
4905449054-1067 THERMOSTATTHERMOSTAT
-
4908549085-1066 CAP, ASSY, PRESSURECAP, ASSY, PRESSURE
-
5950259502-0008 FAN, ASSYFAN, ASSY
-
9200292002-1086 BOLT, FLANGED, 6X25BOLT, FLANGED, 6X25
-
9201592015-1487 NUTNUT
-
92015A92015-1531 NUT, CLAMP, 6MMNUT, CLAMP, 6MM
-
9203792037-147 CLAMP, TUBECLAMP, TUBE
-
9205592055-112 O-RING, 53.5X2.6O-RING, 53.5X2.6
-
92055A92055-1350 O-RING, 18.54X2.6O-RING, 18.54X2.6
-
9207592075-1123 DAMPER, RUBBERDAMPER, RUBBER
-
92075A92075-1634 DAMPERDAMPER
-
9214392143-1353 COLLARCOLLAR
-
92143A92143-1962 COLLARCOLLAR
-
9215092150-1186 BOLT, 6X12BOLT, 6X12
-
92150A92150-1841 BOLT, 6X12BOLT, 6X12
-
9215192151-1774 BOLT, FLANGED, 6X16BOLT, FLANGED, 6X16
-
92151A92151-1997 BOLT, 6X12BOLT, 6X12
-
130130J0612 BOLT, FLANGED, 6X12BOLT, FLANGED, 6X12
-
220220D0514 SCREW, PAN, CROS, 5X14SCREW, PAN, CROS, 5X14
-
670670B2021 O-RING, 21MMO-RING, 21MM
-
9215392153-0603 BOLT, 6X14BOLT, 6X14
-
9216092160-1863 DAMPERDAMPER
-
9217192171-0179 CLAMPCLAMP
-
9217292172-0002 SCREW, 6X18SCREW, 6X18
-
92172A92172-0004 SCREW, 6X14SCREW, 6X14
