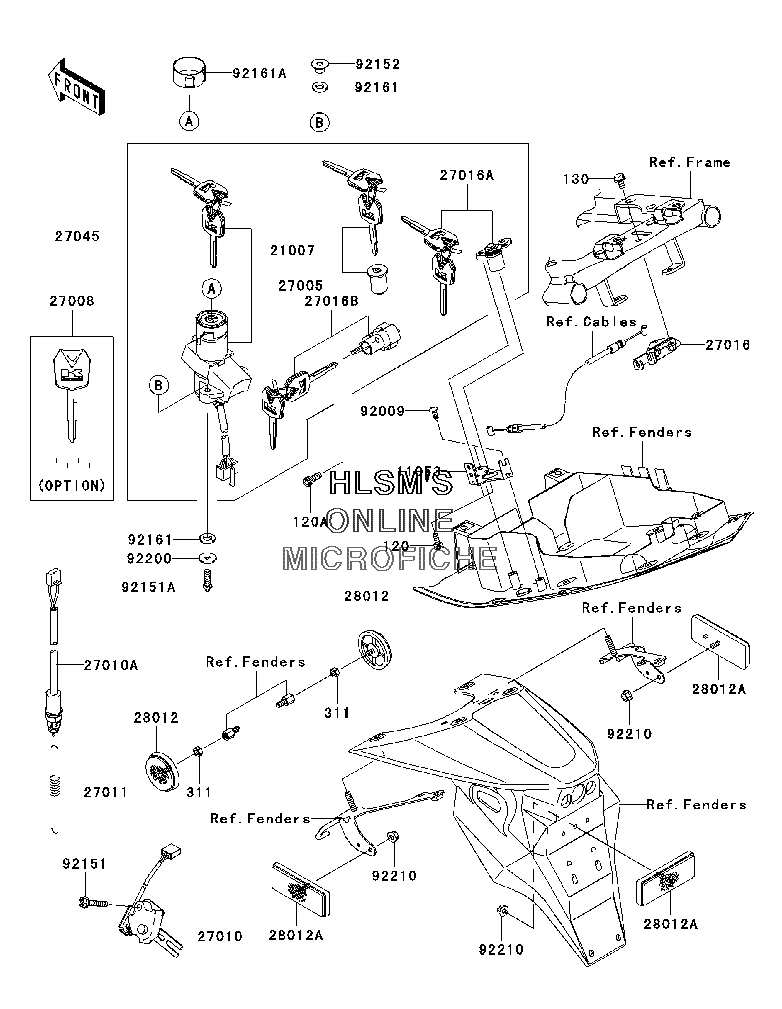

IGNITION SWITCH W/ LOCKS AND REFLECTORS для Kawasaki Z750S - 2006 года выпуска
-
№АртикулНазвание
-
120120S0512 BOLT, SOCKET, 5X12BOLT, SOCKET, 5X12
-
120A120W0616 BOLT, SOCKET, 6X16BOLT, SOCKET, 6X16
-
130130J0612 BOLT, FLANGED, 6X12BOLT, FLANGED, 6X12
-
311311L0500 NUT, HEXNUT, HEX
-
1105311053-1520 BRACKET, SEAT LOCKBRACKET, SEAT LOCK
-
2100721007-5057 ROTOR, LOCK, TANK CAPROTOR, LOCK, TANK CAP
-
2700527005-5135 SWITCH, ASSY, IGNITIONSWITCH, ASSY, IGNITION
-
2700827008-0030 KEY, LOCK, BLANK (OPT)KEY, LOCK, BLANK (OPT)
-
2701027010-1470 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
27010A27010-1479 SWITCH, REAR BRAKESWITCH, REAR BRAKE
-
2701127011-021 SPRING, BRAKE LAMP SWITCHSPRING, BRAKE LAMP SWITCH
-
2701627016-1115 LOCK, ASSY, SEAT STRIKERLOCK, ASSY, SEAT STRIKER
-
27016A27016-5309 LOCK, ASSY, SEATLOCK, ASSY, SEAT
-
27016B27016-5326 LOCK, ASSY, HELMETLOCK, ASSY, HELMET
-
2704527045-5310 SWITCH, ASSYSWITCH, ASSY
-
2801228012-016 REFLECTOR, REFLEX, FRONTREFLECTOR, REFLEX, FRONT
-
28012A28012-1077 REFLECTOR, REFLEXREFLECTOR, REFLEX
-
9200992009-1138 SCREW, TAPPING, 5X12 (BLACK)SCREW, TAPPING, 5X12 (BLACK)
-
9215192151-1216 BOLT, FLANGED, 6X30BOLT, FLANGED, 6X30
-
92151A92151-1946 BOLT, TORX, 6X22BOLT, TORX, 6X22
-
9215292152-0352 COLLARCOLLAR
-
9216192161-0240 DAMPER, IGNITION SWITCHDAMPER, IGNITION SWITCH
-
92161A92161-0257 DAMPER, IGINITION SWITCHDAMPER, IGINITION SWITCH
-
9220092200-0212 WASHER, 6X20X1.6WASHER, 6X20X1.6
-
9221092210-0007 NUT, FLANGED, 5MMNUT, FLANGED, 5MM
