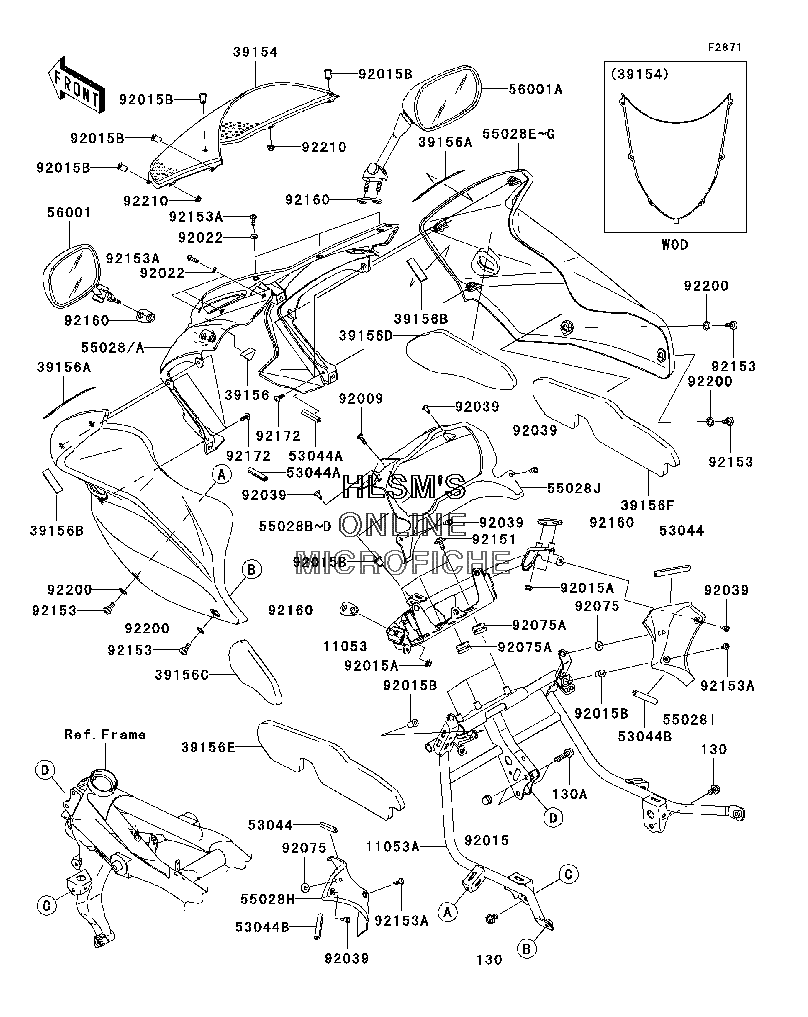

COWLING для Kawasaki Z750S - 2006 года выпуска
-
№АртикулНазвание
-
1105311053-1431 BRACKET, MIRROR AND METERBRACKET, MIRROR AND METER
-
11053A11053-1432 BRACKET, UPPER COWLINGBRACKET, UPPER COWLING
-
3915439154-0001 WINDSHIELDWINDSHIELD
-
3915639156-0099 PAD, UPPER COWLING, CENTERPAD, UPPER COWLING, CENTER
-
39156A39156-0100 PAD, UPPER COWLING (LEFT/RIGHT)PAD, UPPER COWLING (LEFT/RIGHT)
-
39156B39156-0101 PAD, UPPER COWLING (LEFT/RIGHT)PAD, UPPER COWLING (LEFT/RIGHT)
-
39156C39156-0104 PAD, UPPER COWLING, SIDE (LEFT/UPPER)PAD, UPPER COWLING, SIDE (LEFT/UPPER)
-
39156D39156-0105 PAD, UPPER COWLING, SIDE (RIGHT/UPPER)PAD, UPPER COWLING, SIDE (RIGHT/UPPER)
-
39156E39156-0106 PAD, UPPER COWLING, SIDE (LEFT/LOWER)PAD, UPPER COWLING, SIDE (LEFT/LOWER)
-
39156F39156-0107 PAD, UPPER COWLING, SIDE (RIGHT/LOWER)PAD, UPPER COWLING, SIDE (RIGHT/LOWER)
-
5304453044-0009 TRIM, L=75TRIM, L=75
-
53044A53044-0012 TRIM, L=40TRIM, L=40
-
53044B53044-1277 TRIM, L=50TRIM, L=50
-
5502855028-0041-10E COWLING, UPPER, CENTER (BLUE) (CANADA ONLY)COWLING, UPPER, CENTER (BLUE) (CANADA ONLY)
-
55028A55028-0041-8J COWLING, UPPER, CENTER (F.S.BLACK)COWLING, UPPER, CENTER (F.S.BLACK)
-
55028B55028-0042-10E COWLING, UPPER (LEFT) (BLUE) (CANADA ONLY)COWLING, UPPER (LEFT) (BLUE) (CANADA ONLY)
-
55028C55028-0042-474 COWLING, UPPER (LEFT) (G.SILVER) (CANADA ONLY)COWLING, UPPER (LEFT) (G.SILVER) (CANADA ONLY)
-
55028D55028-0042-660 COWLING, UPPER (LEFT) (M.S.BLACK)COWLING, UPPER (LEFT) (M.S.BLACK)
-
55028E55028-0043-10E COWLING, UPPER (RIGHT) (BLUE) (CANADA ONLY)COWLING, UPPER (RIGHT) (BLUE) (CANADA ONLY)
-
55028F55028-0043-474 COWLING, UPPER (RIGHT) (G.SILVER) (CANADA ONLY)COWLING, UPPER (RIGHT) (G.SILVER) (CANADA ONLY)
-
55028G55028-0043-660 COWLING, UPPER (RIGHT) (M.S.BLACK)COWLING, UPPER (RIGHT) (M.S.BLACK)
-
55028H55028-0044 COWLING, INNER (LEFT)COWLING, INNER (LEFT)
-
55028I55028-0045 COWLING, INNER (RIGHT)COWLING, INNER (RIGHT)
-
55028J55028-0049 COWLING, INNER, CENTERCOWLING, INNER, CENTER
-
5600156001-0037 MIRROR, ASSY (LEFT)MIRROR, ASSY (LEFT)
-
56001A56001-0038 MIRROR, ASSY (RIGHT)MIRROR, ASSY (RIGHT)
-
9200992009-1909 SCREW, 5X16SCREW, 5X16
-
9201592015-1174 NUT, CAP, 8MM (BLACK)NUT, CAP, 8MM (BLACK)
-
92015A92015-1386 NUT, 6MMNUT, 6MM
-
92015B92015-1757 NUT, WELL, 5MMNUT, WELL, 5MM
-
9202292022-1521 WASHER, NYLON, 5.3X11.5X1.5WASHER, NYLON, 5.3X11.5X1.5
-
9203992039-0023 RIVETRIVET
-
9207592075-1011 DAMPERDAMPER
-
92075A92075-1690 DAMPERDAMPER
-
9215192151-1530 BOLT, 6X16BOLT, 6X16
-
130130L0812 BOLT, FLANGED, 8X12BOLT, FLANGED, 8X12
-
130A130L0830 BOLT, FLANGED, 8X30BOLT, FLANGED, 8X30
-
9215392153-0489 BOLT, SOCKET, 6MMBOLT, SOCKET, 6MM
-
92153A92153-1244 BOLT, SOCKET, 5X16BOLT, SOCKET, 5X16
-
9216092160-1089 DAMPER, MIRRORDAMPER, MIRROR
-
9217292172-0175 SCREW, TAPPING, 5X16SCREW, TAPPING, 5X16
-
9220092200-0157 WASHER, 10.4X15.9X0.5WASHER, 10.4X15.9X0.5
-
9221092210-0007 NUT, FLANGED, 5MMNUT, FLANGED, 5MM
