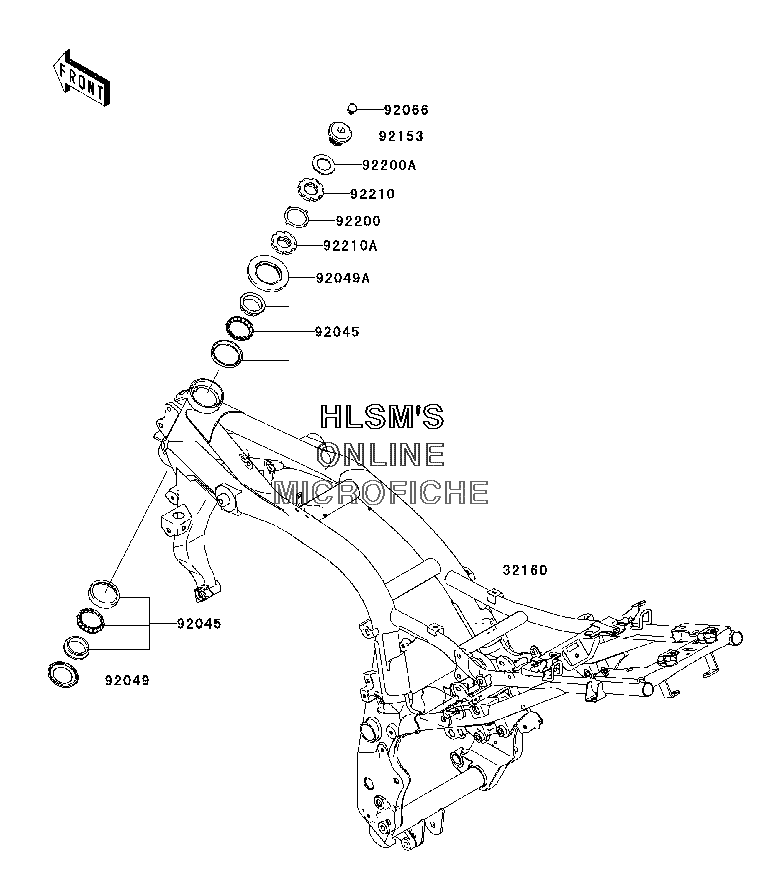

FRAME для Kawasaki Z750S - 2006 года выпуска
-
№АртикулНазвание
-
3216032160-0089 FRAME, COMPFRAME, COMP
-
9204592045-1384 BEARING, BALL, SF07A17PX1V1BEARING, BALL, SF07A17PX1V1
-
9204992049-0022 SEAL, OIL, DS35X55X4SEAL, OIL, DS35X55X4
-
92049A92049-1483 SEAL, OIL, MX043N2SEAL, OIL, MX043N2
-
9206692066-1184 PLUGPLUG
-
9215392153-0474 BOLT, 26MMBOLT, 26MM
-
9220092200-0036 WASHERWASHER
-
92200A92200-0081 WASHER, 27X42X2.3WASHER, 27X42X2.3
-
9221092210-0062 NUT, STEERING STEM 35MMNUT, STEERING STEM 35MM
-
92210A92210-0077 NUT, STEERING STEM, 35MMNUT, STEERING STEM, 35MM
Все узлы модели:
- AIR CLEANER
- BRAKE - FRONT
- BRAKE - MASTER CYLINDER - FRONT
- BRAKE - MASTER CYLINDER - REAR
- BRAKE - REAR
- BRAKE PEDAL W/ TORQUE LINK
- CABLES
- CAMSHAFT(S) W/ TENSIONER
- CHASSIS ELECTRICAL EQUIPMENT
- CLUTCH
- COWLING
- CRANKCASE
- CRANKCASE BOLT PATTERN
- CRANKSHAFT
- CYLINDER HEAD
- CYLINDER HEAD COVER
- CYLINDER/PISTON(S)
- DECALS (BLACK)
- DECALS (BLUE) (CANADA ONLY)
- DECALS (SILVER) (CANADA ONLY)
- ENGINE COVER
- ENGINE MOUNT
- FENDER(S)
- FOOTRESTS
- • FRAME
- FRAME FITTINGS
- FRONT FORK
- FUEL EVAPORATIVE SYSTEM (CALIF ONLY)
- FUEL INJECTION
- FUEL PUMP
- FUEL TANK
- GEAR CHANGE DRUM W/ SHIFT FORK(S)
- GEAR CHANGE MECHANISM
- GENERATOR
- HANDLEBAR
- HEADLIGHT(S)
- IGNITION SWITCH W/ LOCKS AND REFLECTORS
- IGNITION SYSTEM
- LABELS
- MANUALS
- METER(S)
- MUFFLER(S)
- OIL PAN
- OIL PUMP/OIL FILTER
- OWNERS TOOLS
- RADIATOR
- SEAT
- SIDE COVERS W/ CHAIN COVER
- STAND(S)
- STARTER MOTOR
- SUSPENSION - REAR
- SUSPENSION - SHOCK ABSORBER
- SUSPENSION - SWINGARM
- TAILLIGHT(S)
- THROTTLE
- TIRES
- TRANSMISSION
- TURN SIGNALS
- VALVE(S)
- WHEEL - FRONT
- WHEEL - REAR W/ CHAIN
