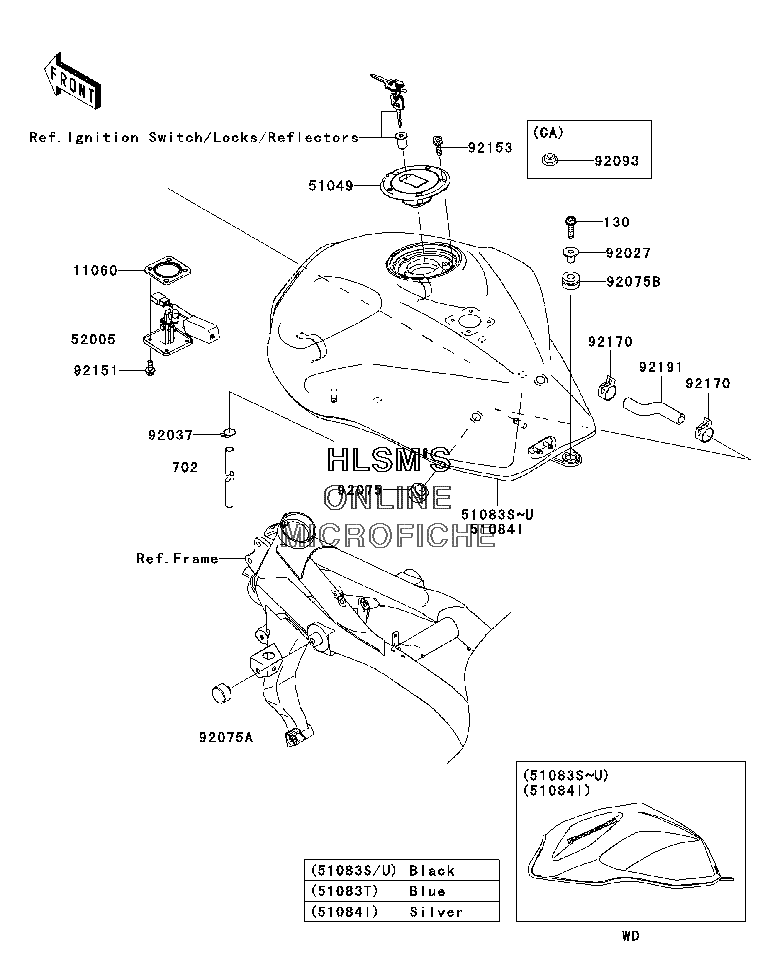

FUEL TANK для Kawasaki Z750S - 2006 года выпуска

  • №
    Артикул
    Название
  • 11060
    11060-1952 GASKET, FUEL GAUGE
    GASKET, FUEL GAUGE
  • 51049
    51049-0008 CAP, TANK, FUEL
    CAP, TANK, FUEL
  • 51083S
    51083-5485-660 TANK, COMP, FUEL (M.S.BLACK) (CALIF. ONLY)
    TANK, COMP, FUEL (M.S.BLACK) (CALIF. ONLY)
  • 51083T
    51083-5486-10E TANK, COMP, FUEL (BLUE) (CANADA ONLY)
    TANK, COMP, FUEL (BLUE) (CANADA ONLY)
  • 51083U
    51083-5486-660 TANK, COMP, FUEL (M.S.BLACK) (EXCEPT CALIF.)
    TANK, COMP, FUEL (M.S.BLACK) (EXCEPT CALIF.)
  • 51084I
    51084-5083-474 TANK, COMP, FUEL (G.SILVER) (CANADA ONLY)
    TANK, COMP, FUEL (G.SILVER) (CANADA ONLY)
  • 52005
    52005-1160 GAUGE, FUEL
    GAUGE, FUEL
  • 92027
    92027-1780 COLLAR, L=19.3
    COLLAR, L=19.3
  • 92037
    92037-010 CLAMP, TUBE
    CLAMP, TUBE
  • 92075
    92075-015 DAMPER
    DAMPER
  • 92075A
    92075-101 DAMPER, FUEL TANK
    DAMPER, FUEL TANK
  • 92075B
    92075-1736 DAMPER
    DAMPER
  • 130
    130G0830 BOLT, FLANGED, 8X30
    BOLT, FLANGED, 8X30
  • 702
    702A06750 TUBE, RUBBER, 6X9X750
    TUBE, RUBBER, 6X9X750
  • 92093
    92093-1030 SEAL, FUEL TANK CAP (CALIF. ONLY)
    SEAL, FUEL TANK CAP (CALIF. ONLY)
  • 92151
    92151-1599 BOLT, 5X12
    BOLT, 5X12
  • 92153
    92153-0492 BOLT, SOCKET, 5X16
    BOLT, SOCKET, 5X16
  • 92170
    92170-1492 CLAMP
    CLAMP
  • 92191
    92191-1801 TUBE
    TUBE
