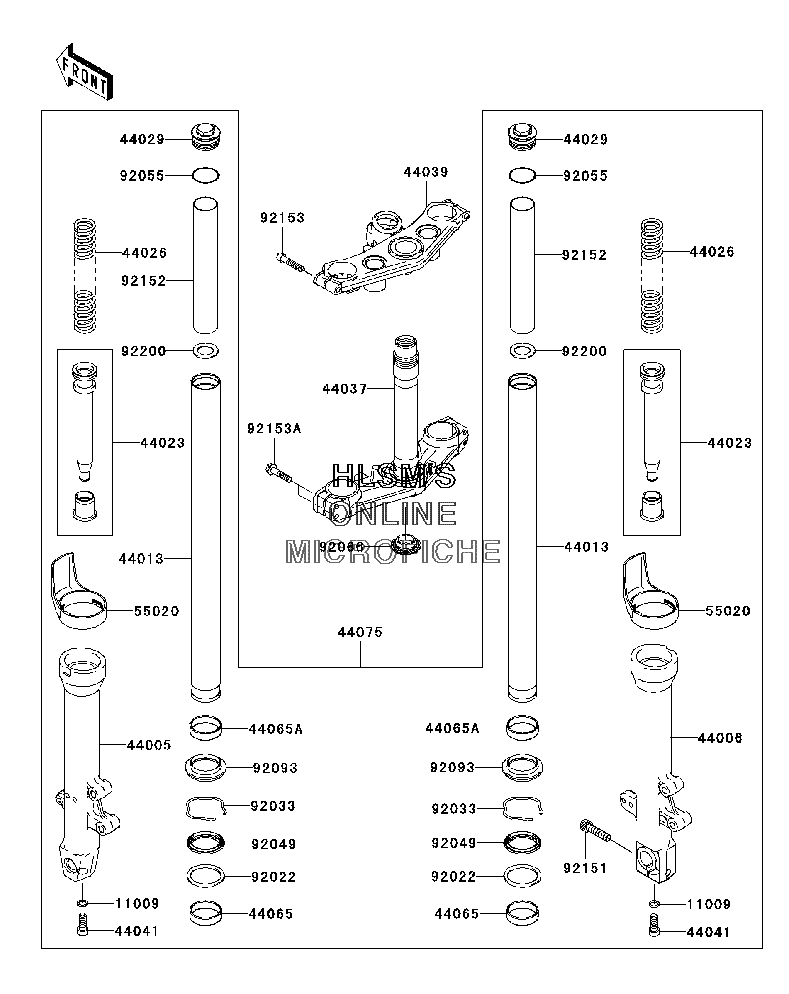

FRONT FORK для Kawasaki Z750S - 2006 года выпуска

  • №
    Артикул
    Название
  • 11009
    11009-1325 GASKET, PIPE, COMP, SUSPENSION
    GASKET, PIPE, COMP, SUSPENSION
  • 44005
    44005-0032 PIPE, LEFT FORK OUTER
    PIPE, LEFT FORK OUTER
  • 44006
    44006-0031 PIPE, RIGHT FORK OUTER
    PIPE, RIGHT FORK OUTER
  • 44013
    44013-0038 PIPE, FORK INNER
    PIPE, FORK INNER
  • 44023
    44023-0033 CYLINDER, SET, FORK
    CYLINDER, SET, FORK
  • 44026
    44026-0063 SPRING, FRONT FORK
    SPRING, FRONT FORK
  • 44029
    44029-0005 SEAT, FORK SPRING
    SEAT, FORK SPRING
  • 44037
    44037-0028 HOLDER, FORK UNDER
    HOLDER, FORK UNDER
  • 44039
    44039-0021 HOLDER, FORK UPPER
    HOLDER, FORK UPPER
  • 44041
    44041-040 BOLT, SOCKET, FORK CYLINDER
    BOLT, SOCKET, FORK CYLINDER
  • 44065
    44065-1115 BUSHING, FRONT FORK, OUTER TUBE
    BUSHING, FRONT FORK, OUTER TUBE
  • 44065A
    44065-1128 BUSHING, FRONT FORK, INNER PIPE
    BUSHING, FRONT FORK, INNER PIPE
  • 44075
    44075-0059 DAMPER, SET, FORK
    DAMPER, SET, FORK
  • 55020
    55020-1691 GUARD, FORK
    GUARD, FORK
  • 92022
    92022-1298 WASHER, FORK OUTER TUBE
    WASHER, FORK OUTER TUBE
  • 92033
    92033-1036 RING, SNAP
    RING, SNAP
  • 92049
    92049-1494 SEAL, OIL, FORK OUTER TUBE
    SEAL, OIL, FORK OUTER TUBE
  • 92055
    92055-1321 O-RING
    O-RING
  • 92066
    92066-0032 PLUG
    PLUG
  • 92093
    92093-1472 SEAL, FORK OUTER TUBE
    SEAL, FORK OUTER TUBE
  • 92151
    92151-1357 BOLT, SOCKET, 10X40
    BOLT, SOCKET, 10X40
  • 92152
    92152-0279 COLLAR, FORK, L=219.5
    COLLAR, FORK, L=219.5
  • 92153
    92153-0506 BOLT, SOCKET, 8X40
    BOLT, SOCKET, 8X40
  • 92153A
    92153-0649 BOLT, FLANGED, 8X35
    BOLT, FLANGED, 8X35
  • 92200
    92200-1302 WASHER
    WASHER
