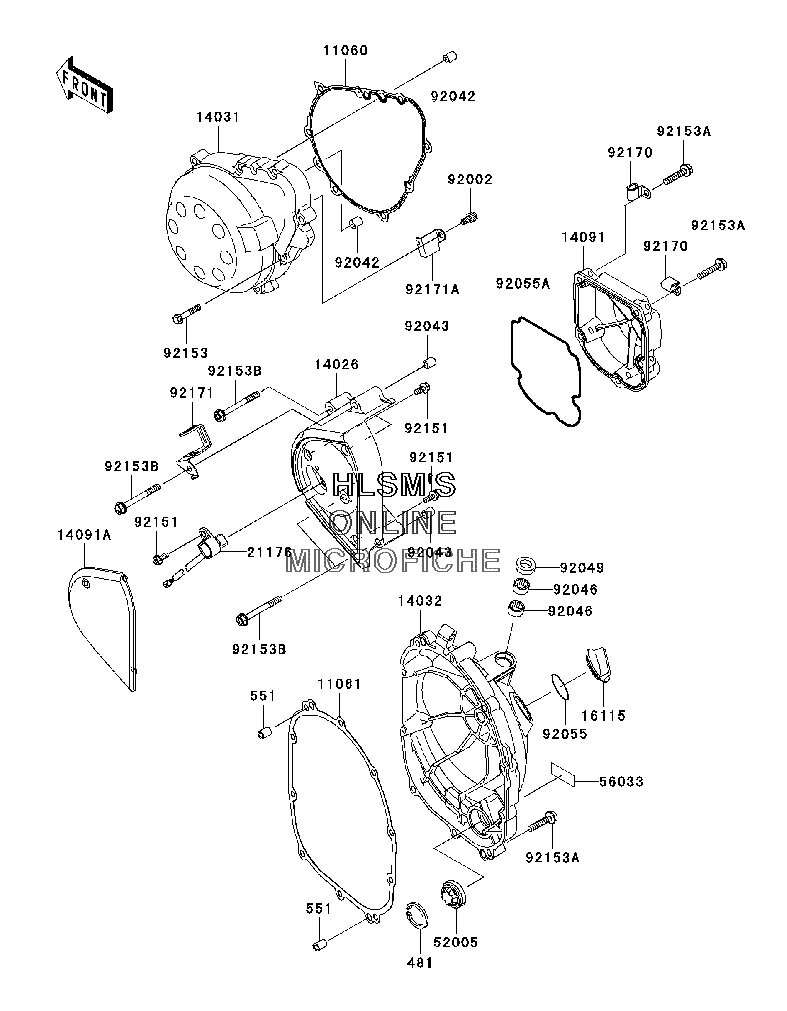

ENGINE COVER для Kawasaki Z750S - 2006 года выпуска`
-
№АртикулНазвание
-
481481J3000 CIRCLIP, TYPE, C, 30MMCIRCLIP, TYPE, C, 30MM
-
551551A0814 PIN, DOWEL, 8X14PIN, DOWEL, 8X14
-
1106011060-1854 GASKET, GENERATOR COVERGASKET, GENERATOR COVER
-
1106111061-1166 GASKET, CLUTCH COVERGASKET, CLUTCH COVER
-
1402614026-1293 COVER, CHAINCOVER, CHAIN
-
1403114031-0010 COVER, GENERATORCOVER, GENERATOR
-
1403214032-0015 COVER, CLUTCHCOVER, CLUTCH
-
1409114091-0106 COVER, PULSECOVER, PULSE
-
14091A14091-1529 COVER, RELEASECOVER, RELEASE
-
1611516115-1009 CAP, OIL FILLERCAP, OIL FILLER
-
2117621176-0045 SENSOR, SPEEDSENSOR, SPEED
-
5200552005-1120 GAUGEGAUGE
-
5603356033-0022 LABEL, MANUAL, OIL CAPACITYLABEL, MANUAL, OIL CAPACITY
-
9200292002-1796 BOLT, SOCKET, 6X12BOLT, SOCKET, 6X12
-
9204292042-007 PIN, DOWEL, 6.3X8X14PIN, DOWEL, 6.3X8X14
-
9204392043-1263 PIN, 6.2X8X14PIN, 6.2X8X14
-
9204692046-1010 BEARING, NEEDLE, HK1210BEARING, NEEDLE, HK1210
-
9204992049-1475 SEAL, OIL, CLUTCH RELEASESEAL, OIL, CLUTCH RELEASE
-
9205592055-049 O-RING, 31.7X2.4O-RING, 31.7X2.4
-
92055A92055-1570 O-RING, PULSE COVERO-RING, PULSE COVER
-
9215192151-1305 BOLT, FLANGED, 5X12BOLT, FLANGED, 5X12
-
9215392153-0601 BOLT, 6X30BOLT, 6X30
-
92153A92153-0608 BOLT, 6X30BOLT, 6X30
-
92153B92153-0609 BOLT, FLANGED, M6X55BOLT, FLANGED, M6X55
-
9217092170-1577 CLAMPCLAMP
-
9217192171-0067 CLAMPCLAMP
-
92171A92171-1566 CLAMPCLAMP
