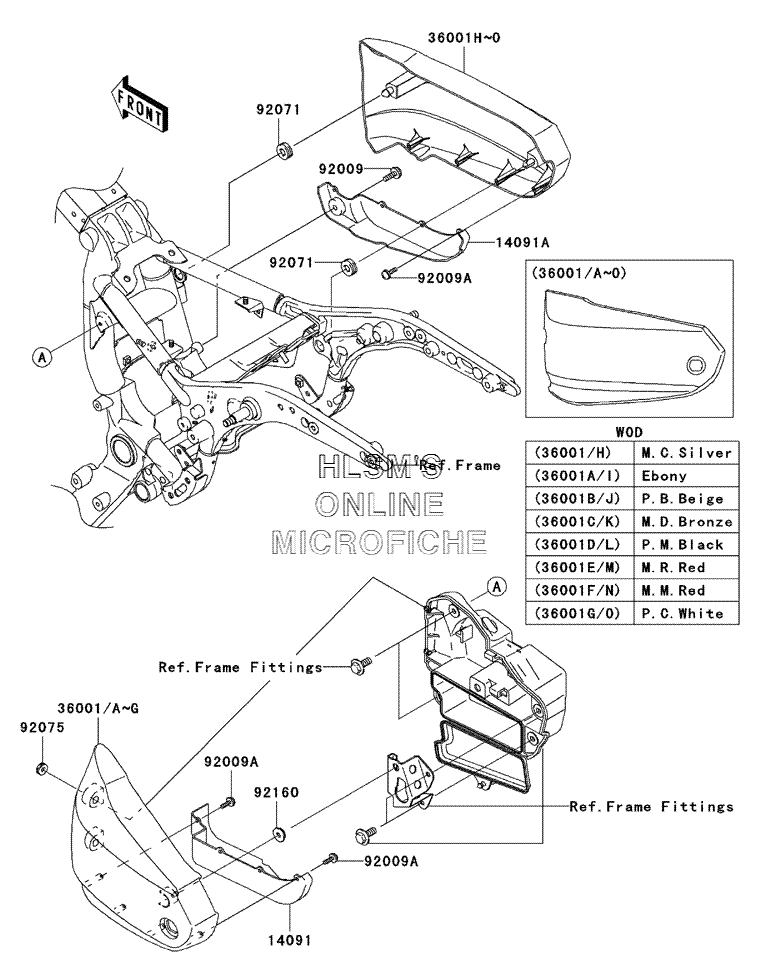

SIDE COVERS для Kawasaki Vulcan 1600 Classic - 2004 года выпуска
-
№АртикулНазвание
-
1409114091-1343 COVER, SIDE COVER (LEFT)COVER, SIDE COVER (LEFT)
-
14091A14091-1344 COVER, SIDE COVER (RIGHT)COVER, SIDE COVER (RIGHT)
-
36001D36001-1684-218 COVER, SIDE (LEFT) (P.M.BLACK)COVER, SIDE (LEFT) (P.M.BLACK)
-
36001F36001-1684-665 COVER, SIDE (LEFT) (M.M.RED)COVER, SIDE (LEFT) (M.M.RED)
-
36001G36001-1684-667 COVER, SIDE (LEFT) (P.C.WHITE)COVER, SIDE (LEFT) (P.C.WHITE)
-
36001L36001-1685-218 COVER, SIDE (RIGHT) (P.M.BLACK)COVER, SIDE (RIGHT) (P.M.BLACK)
-
36001N36001-1685-665 COVER, SIDE (RIGHT) (M.M.RED)COVER, SIDE (RIGHT) (M.M.RED)
-
36001O36001-1685-667 COVER, SIDE (RIGHT) (P.C.WHITE)COVER, SIDE (RIGHT) (P.C.WHITE)
-
9200992009-1662 SCREW, 6X14SCREW, 6X14
-
92009A92009-1792 SCREW, TAPPING, 4X14SCREW, TAPPING, 4X14
-
9207192071-1131 GROMMETGROMMET
-
9207592075-1629 DAMPERDAMPER
-
9216092160-1944 DAMPERDAMPER
