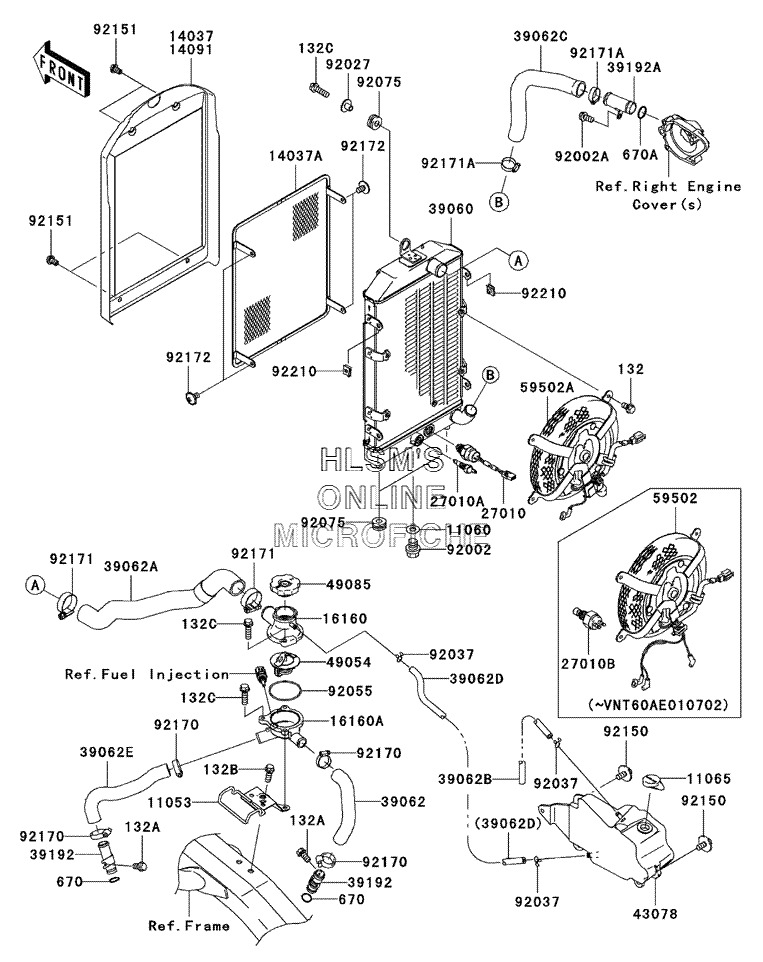

RADIATOR для Kawasaki Vulcan 1600 Classic - 2004 года выпуска

  • №
    Артикул
    Название
  • 11053
    11053-0009 BRACKET, THERMOSTAT CASE
    BRACKET, THERMOSTAT CASE
  • 11060
    11060-1767 GASKET, DRAIN PLUG
    GASKET, DRAIN PLUG
  • 11065
    11065-1093 CAP, COOLANT
    CAP, COOLANT
  • 14037
    14037-0010 SCREEN, OUTER
    SCREEN, OUTER
  • 14037A
    14037-0014 SCREEN, INNER
    SCREEN, INNER
  • 16160
    16160-1152 BODY, UPPER
    BODY, UPPER
  • 16160A
    16160-1361 BODY, LOWER
    BODY, LOWER
  • 27010
    27010-0024 SWITCH, FAN (SERIAL VNT60AE010703 AND ABOVE)
    SWITCH, FAN (SERIAL VNT60AE010703 AND ABOVE)
  • 27010A
    27010-1305 SWITCH, WARNING
    SWITCH, WARNING
  • 27010B
    27010-1364 SWITCH, FAN (SERIAL VNT60AE010702 AND BELOW)
    SWITCH, FAN (SERIAL VNT60AE010702 AND BELOW)
  • 39060
    39060-0002 RADIATOR
    RADIATOR
  • 39062
    39062-0018 HOSE, COOLING, REAR HEAD, THERMO
    HOSE, COOLING, REAR HEAD, THERMO
  • 39062A
    39062-0019 HOSE, COOLING, RADIATOR, THERMO
    HOSE, COOLING, RADIATOR, THERMO
  • 39062B
    39062-1258 HOSE, COOLING
    HOSE, COOLING
  • 39062C
    39062-1850 HOSE, COOLING, RADIATOR, PUMP
    HOSE, COOLING, RADIATOR, PUMP
  • 39062D
    39062-1934 HOSE, COOLING, THERMO, RESERVOIR
    HOSE, COOLING, THERMO, RESERVOIR
  • 39062E
    39062-1935 HOSE, COOLING, FRONT HEAD, THERMO
    HOSE, COOLING, FRONT HEAD, THERMO
  • 39192
    39192-1094 PIPE, WATER
    PIPE, WATER
  • 39192A
    39192-1096 PIPE, WATER
    PIPE, WATER
  • 43078
    43078-1180 RESERVOIR
    RESERVOIR
  • 49054
    49054-1067 THERMOSTAT
    THERMOSTAT
  • 49085
    49085-1067 CAP, ASSY, PRESSURE
    CAP, ASSY, PRESSURE
  • 59502
    59502-0004 FAN, ASSY (SERIAL VNT60AE010702 AND BELOW)
    FAN, ASSY (SERIAL VNT60AE010702 AND BELOW)
  • 59502A
    59502-0013 FAN, ASSY (SERIAL VNT60AE010703 AND ABOVE)
    FAN, ASSY (SERIAL VNT60AE010703 AND ABOVE)
  • 92002
    92002-1311 BOLT, FLANGED, 10X10
    BOLT, FLANGED, 10X10
  • 92002A
    92002-1569 BOLT, 6X12
    BOLT, 6X12
  • 92027
    92027-1450 COLLAR, L=13.1 (BLACK)
    COLLAR, L=13.1 (BLACK)
  • 92037
    92037-147 CLAMP, TUBE
    CLAMP, TUBE
  • 92055
    92055-112 O-RING, 53.5X2.6
    O-RING, 53.5X2.6
  • 92075
    92075-1690 DAMPER
    DAMPER
  • 92150
    92150-1392 BOLT, FLANGED, M6X14, WASHER
    BOLT, FLANGED, M6X14, WASHER
  • 92151
    92151-1809 BOLT, 6X10
    BOLT, 6X10
  • 132
    132J0610 BOLT, FLANGED, SMALL, 6X10
    BOLT, FLANGED, SMALL, 6X10
  • 132A
    132J0612 BOLT, FLANGED, SMALL, M6X12
    BOLT, FLANGED, SMALL, M6X12
  • 132B
    132J0616 BOLT, FLANGED, SMALL, M6X16
    BOLT, FLANGED, SMALL, M6X16
  • 132C
    132J0620 BOLT, FLANGED, SMALL, M6X20
    BOLT, FLANGED, SMALL, M6X20
  • 670
    670B2014 O-RING, 14MM
    O-RING, 14MM
  • 670A
    670B2018 O-RING, 18MM
    O-RING, 18MM
  • 92170
    92170-1032 CLAMP, COOLING HOSE
    CLAMP, COOLING HOSE
  • 92171
    92171-0179 CLAMP
    CLAMP
  • 92171A
    92171-0261 CLAMP
    CLAMP
  • 92172
    92172-0005 SCREW, 6X10
    SCREW, 6X10
  • 92210
    92210-1125 NUT
    NUT
