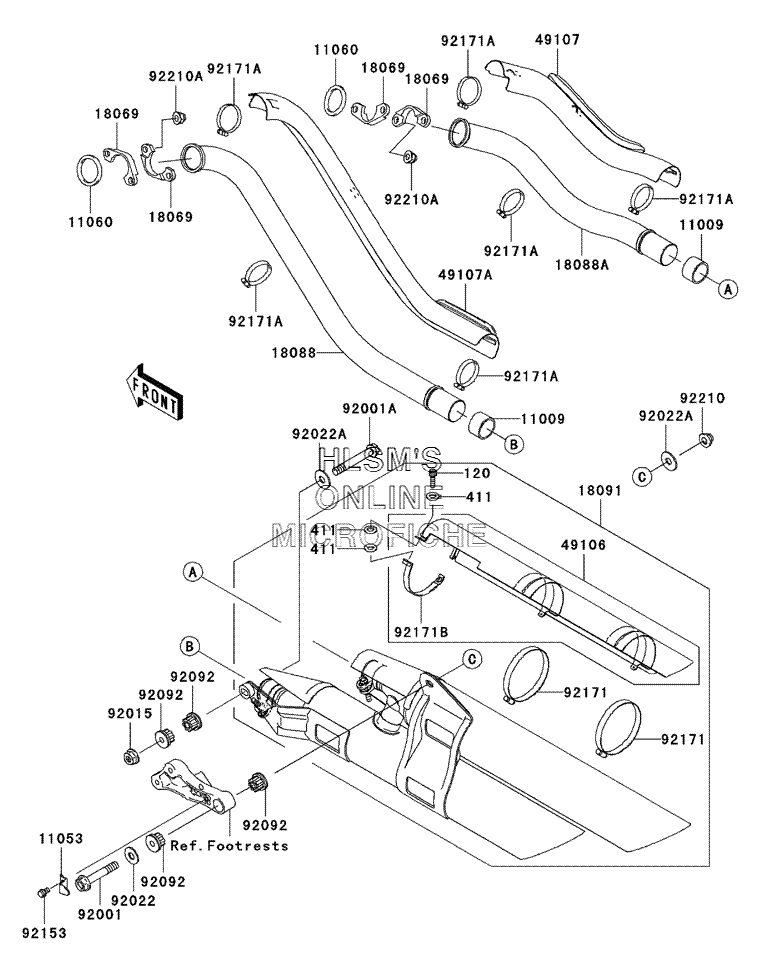

MUFFLER(S) (JKBVNKA1 4A010964 AND ABOVE) для Kawasaki Vulcan 1600 Classic - 2004 года выпуска

  • №
    Артикул
    Название
  • 120
    120R0620 BOLT, SOCKET, 6X20
    BOLT, SOCKET, 6X20
  • 411
    411S0600 WASHER, PLAIN, 6MM
    WASHER, PLAIN, 6MM
  • 11009
    11009-1666 GASKET, EXHAUST PIPE CONNECTING
    GASKET, EXHAUST PIPE CONNECTING
  • 11053
    11053-0267 BRACKET
    BRACKET
  • 11060
    11060-1119 GASKET, EXHAUST PIPE
    GASKET, EXHAUST PIPE
  • 18069
    18069-1161 HOLDER, EXHAUST PIPE
    HOLDER, EXHAUST PIPE
  • 18088
    18088-1246 PIPE, EXHAUST, FRONT
    PIPE, EXHAUST, FRONT
  • 18088A
    18088-1247 PIPE, EXHAUST, REAR
    PIPE, EXHAUST, REAR
  • 18091
    18091-0192 BODY, COMP, MUFFLER
    BODY, COMP, MUFFLER
  • 49106
    49106-0007 COVER, MUFFLER
    COVER, MUFFLER
  • 49107
    49107-0010 COVER, EXHAUST PIPE, REAR
    COVER, EXHAUST PIPE, REAR
  • 49107A
    49107-0016 COVER, EXHAUST PIPE, FRONT
    COVER, EXHAUST PIPE, FRONT
  • 92001
    92001-1617 BOLT, FLANGED, 10X60
    BOLT, FLANGED, 10X60
  • 92001A
    92001-1618 BOLT, FLANGED, 10X70
    BOLT, FLANGED, 10X70
  • 92015
    92015-1356 NUT, 10MM
    NUT, 10MM
  • 92022
    92022-044 WASHER, 10.5X26X2.3
    WASHER, 10.5X26X2.3
  • 92022A
    92022-1302 WASHER, 10.5X30X2.3 (BLACK)
    WASHER, 10.5X30X2.3 (BLACK)
  • 92092
    92092-1013 BUSHING, RUBBER, MUFFLER
    BUSHING, RUBBER, MUFFLER
  • 92153
    92153-0381 BOLT, 6X10
    BOLT, 6X10
  • 92171
    92171-0048 CLAMP
    CLAMP
  • 92171A
    92171-0072 CLAMP
    CLAMP
  • 92171B
    92171-0373 CLAMP
    CLAMP
  • 92210
    92210-1121 NUT, CAP, 10MM
    NUT, CAP, 10MM
  • 92210A
    92210-1132 NUT, CAP, 8MM
    NUT, CAP, 8MM
