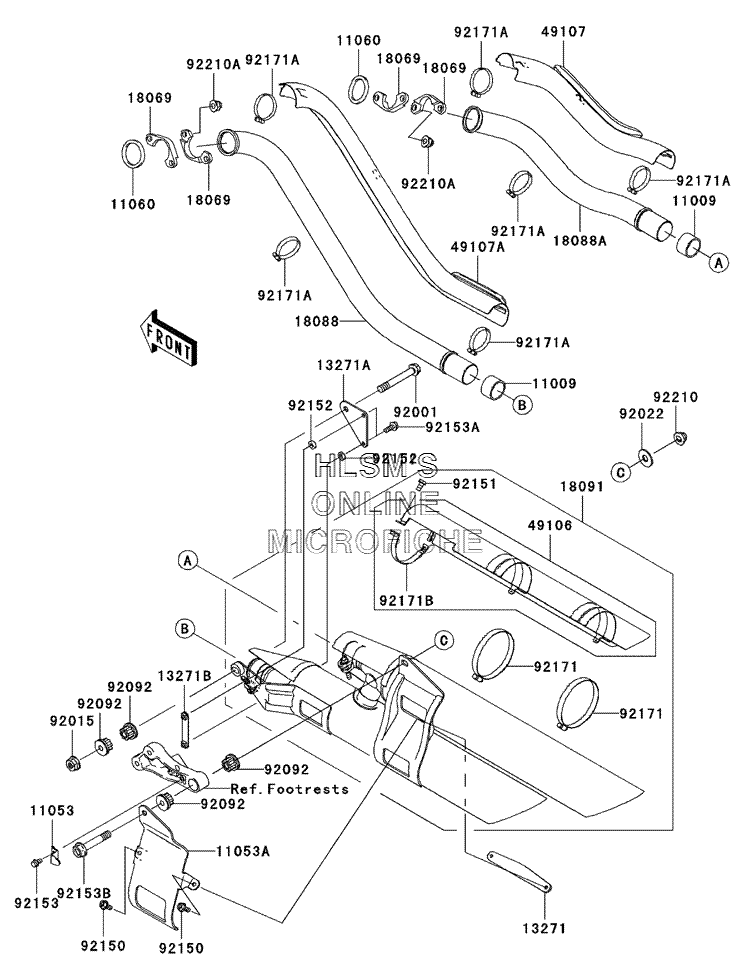

MUFFLER(S) (UP TO JKBVNKA1 4A010963) для Kawasaki Vulcan 1600 Classic - 2004 года выпуска
-
№АртикулНазвание
-
1100911009-1666 GASKET, EXHAUST PIPE CONNECTINGGASKET, EXHAUST PIPE CONNECTING
-
1105311053-0267 BRACKETBRACKET
-
11053A11053-1373 BRACKETBRACKET
-
1106011060-1119 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
1327113271-0422 PLATEPLATE
-
13271A13271-0423 PLATEPLATE
-
13271B13271-0450 PLATEPLATE
-
1806918069-1161 HOLDER, EXHAUST PIPEHOLDER, EXHAUST PIPE
-
1808818088-1246 PIPE, EXHAUST, FRONTPIPE, EXHAUST, FRONT
-
18088A18088-1247 PIPE, EXHAUST, REARPIPE, EXHAUST, REAR
-
1809118091-0057 BODY, COMP, MUFFLERBODY, COMP, MUFFLER
-
4910649106-0007 COVER, MUFFLERCOVER, MUFFLER
-
4910749107-0010 COVER, EXHAUST PIPE, REARCOVER, EXHAUST PIPE, REAR
-
49107A49107-0016 COVER, EXHAUST PIPE, FRONTCOVER, EXHAUST PIPE, FRONT
-
9200192001-1618 BOLT, FLANGED, 10X70BOLT, FLANGED, 10X70
-
9201592015-1356 NUT, 10MMNUT, 10MM
-
9202292022-1302 WASHER, 10.5X30X2.3 (BLACK)WASHER, 10.5X30X2.3 (BLACK)
-
9209292092-1013 BUSHING, RUBBER, MUFFLERBUSHING, RUBBER, MUFFLER
-
9215092150-1826 BOLT, FLANGED, M6X12BOLT, FLANGED, M6X12
-
9215192151-1252 BOLT, FLANGED, SMALL, M6X20BOLT, FLANGED, SMALL, M6X20
-
9215292152-0231 COLLAR, 6.5X12.5X3.0COLLAR, 6.5X12.5X3.0
-
9215392153-0381 BOLT, 6X10BOLT, 6X10
-
92153A92153-0713 BOLT, FLANGED, 6X16BOLT, FLANGED, 6X16
-
92153B92153-0741 BOLT, 10X57BOLT, 10X57
-
9217192171-0048 CLAMPCLAMP
-
92171A92171-0072 CLAMPCLAMP
-
92171B92171-0373 CLAMPCLAMP
-
9221092210-1121 NUT, CAP, 10MMNUT, CAP, 10MM
-
92210A92210-1132 NUT, CAP, 8MMNUT, CAP, 8MM
