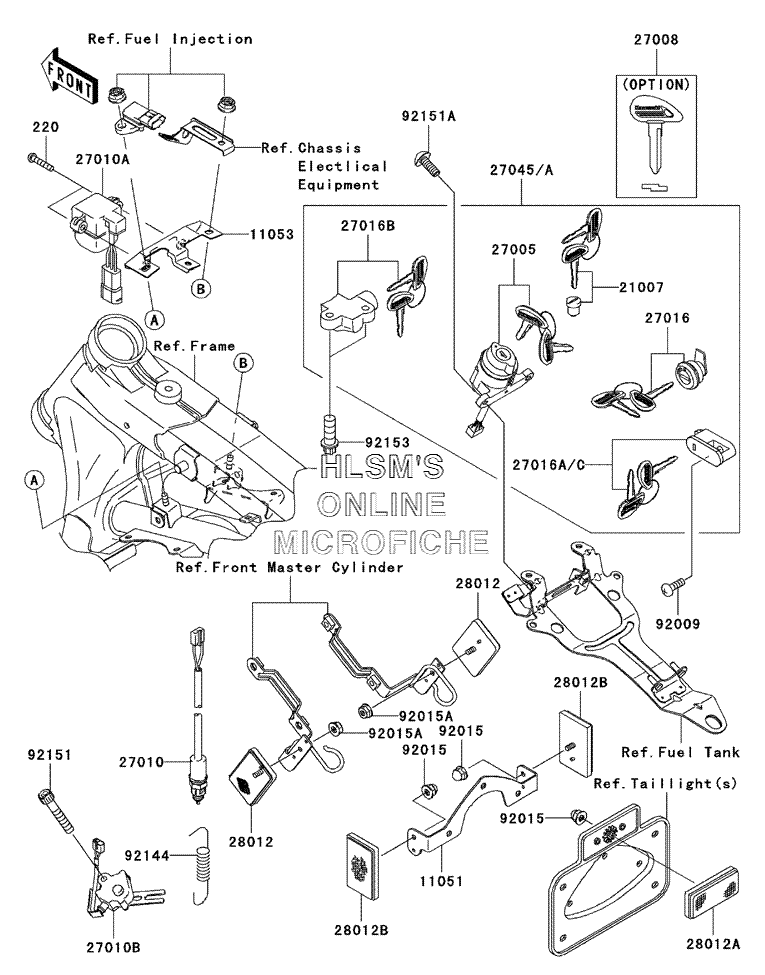

IGNITION SWITCH W/ LOCKS AND REFLECTORS для Kawasaki Vulcan 1600 Classic - 2004 года выпуска`
-
№АртикулНазвание
-
220220C0420 SCREW, PAN, CROS, 4X20SCREW, PAN, CROS, 4X20
-
1105111051-1100 BRACKET, REFLECTORBRACKET, REFLECTOR
-
1105311053-0261 BRACKET, DOWN SENSORBRACKET, DOWN SENSOR
-
2100721007-5053 ROTOR, LOCK, TANK CAPROTOR, LOCK, TANK CAP
-
2700527005-0001 SWITCH, ASSY, IGNITIONSWITCH, ASSY, IGNITION
-
2700827008-1211 KEY, LOCK, BLANK (OPT)KEY, LOCK, BLANK (OPT)
-
2701027010-1412 SWITCH, REAR BRAKESWITCH, REAR BRAKE
-
27010A27010-1416 SWITCH, DOWN SENSORSWITCH, DOWN SENSOR
-
27010B27010-1470 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
2701627016-5279 LOCK, ASSY, LIDLOCK, ASSY, LID
-
27016A27016-5280 LOCK, ASSY, HELMETLOCK, ASSY, HELMET
-
27016B27016-5298 LOCK, ASSY, STEERINGLOCK, ASSY, STEERING
-
2704527045-5178 SWITCH, ASSYSWITCH, ASSY
-
2801228012-1009 REFLECTOR, REFLEX, FRONTREFLECTOR, REFLEX, FRONT
-
28012A28012-1077 REFLECTOR, REFLEXREFLECTOR, REFLEX
-
28012B28012-1088 REFLECTOR, REFLEXREFLECTOR, REFLEX
-
9200992009-1296 SCREW, 5X12SCREW, 5X12
-
9201592015-1263 NUT, LOCK, FLANGE CAP, 5MMNUT, LOCK, FLANGE CAP, 5MM
-
92015A92015-1656 NUT, FLANGED, 5MMNUT, FLANGED, 5MM
-
9214492144-1141 SPRING, REAR BRAKE SWITCHSPRING, REAR BRAKE SWITCH
-
9215192151-1390 BOLT, SOCKET, 6X35BOLT, SOCKET, 6X35
-
92151A92151-1751 BOLT, SOCKET, 6X16BOLT, SOCKET, 6X16
-
9215392153-1273 BOLT, TORX, 8X22BOLT, TORX, 8X22
