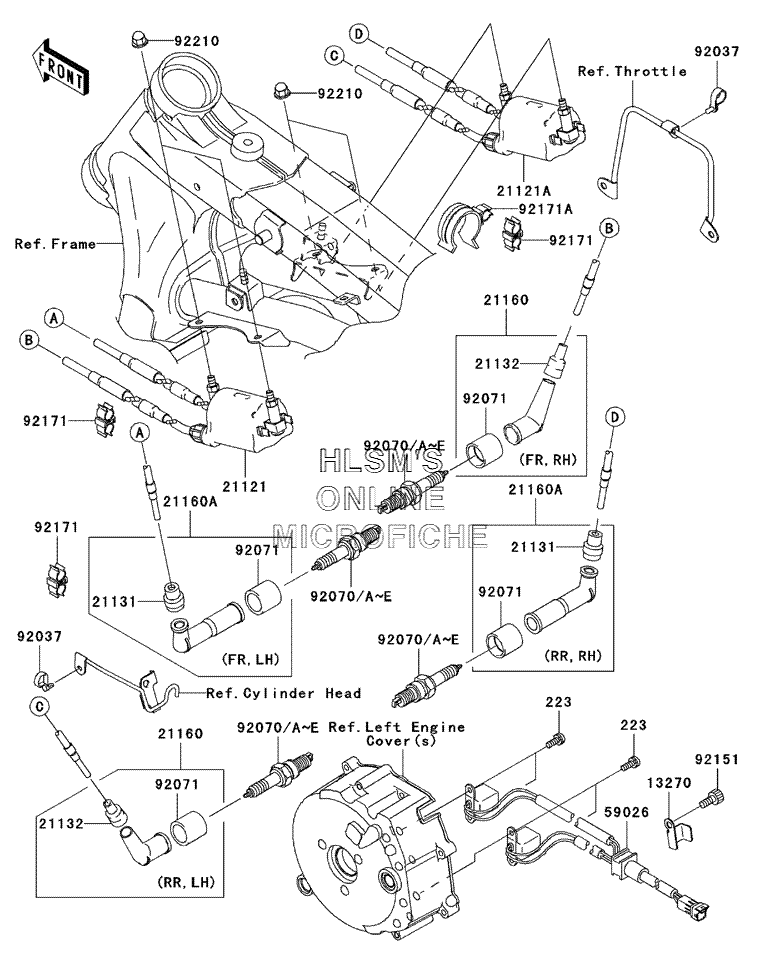

IGNITION SYSTEM для Kawasaki Vulcan 1600 Classic - 2004 года выпуска

  • №
    Артикул
    Название
  • 223
    223B0516 SCREW, PAN, WS, CROS
    SCREW, PAN, WS, CROS
  • 13270
    13270-1979 PLATE
    PLATE
  • 21121
    21121-0003 COIL, IGNITION, FRONT
    COIL, IGNITION, FRONT
  • 21121A
    21121-0004 COIL, IGNITION, REAR
    COIL, IGNITION, REAR
  • 21131
    21131-005 GROMMET, HIGH TENSION
    GROMMET, HIGH TENSION
  • 21132
    21132-005 GROMMET, HIGH TENSION
    GROMMET, HIGH TENSION
  • 21160
    21160-0004 CAP, ASSY, PLUG
    CAP, ASSY, PLUG
  • 21160A
    21160-1091 CAP, ASSY, PLUG
    CAP, ASSY, PLUG
  • 59026
    59026-1157 COIL, PULSING
    COIL, PULSING
  • 92037
    92037-1290 CLAMP, SPEED, L=43
    CLAMP, SPEED, L=43
  • 92070A
    92070-1125 PLUG, SPARK, DPR7EA9 (NGK) (OPT)
    PLUG, SPARK, DPR7EA9 (NGK) (OPT)
  • 92070B
    92070-1138 PLUG, SPARK, DPR6EA9 (NGK)
    PLUG, SPARK, DPR6EA9 (NGK)
  • 92070D
    92070-1250 PLUG, SPARK, DPR5EA9 (NGK) (OPT)
    PLUG, SPARK, DPR5EA9 (NGK) (OPT)
  • 92071
    92071-1184 GROMMET, PLUG CAP
    GROMMET, PLUG CAP
  • 92151
    92151-3704 BOLT, 6X10
    BOLT, 6X10
  • 92171
    92171-0129 CLAMP, HIGHTENSION CORD
    CLAMP, HIGHTENSION CORD
  • 92171A
    92171-0130 CLAMP
    CLAMP
  • 92210
    92210-0003 NUT, CAP, 6MM
    NUT, CAP, 6MM
